HK Audio Linear 5 MKII 115 FA

Description

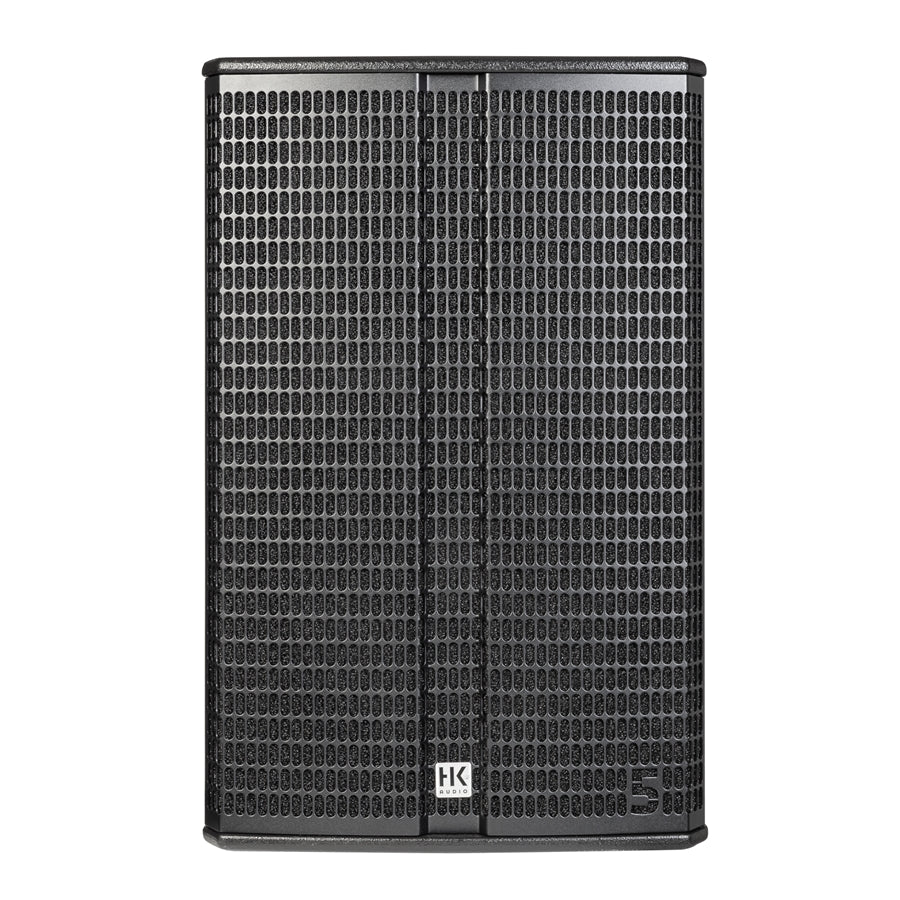

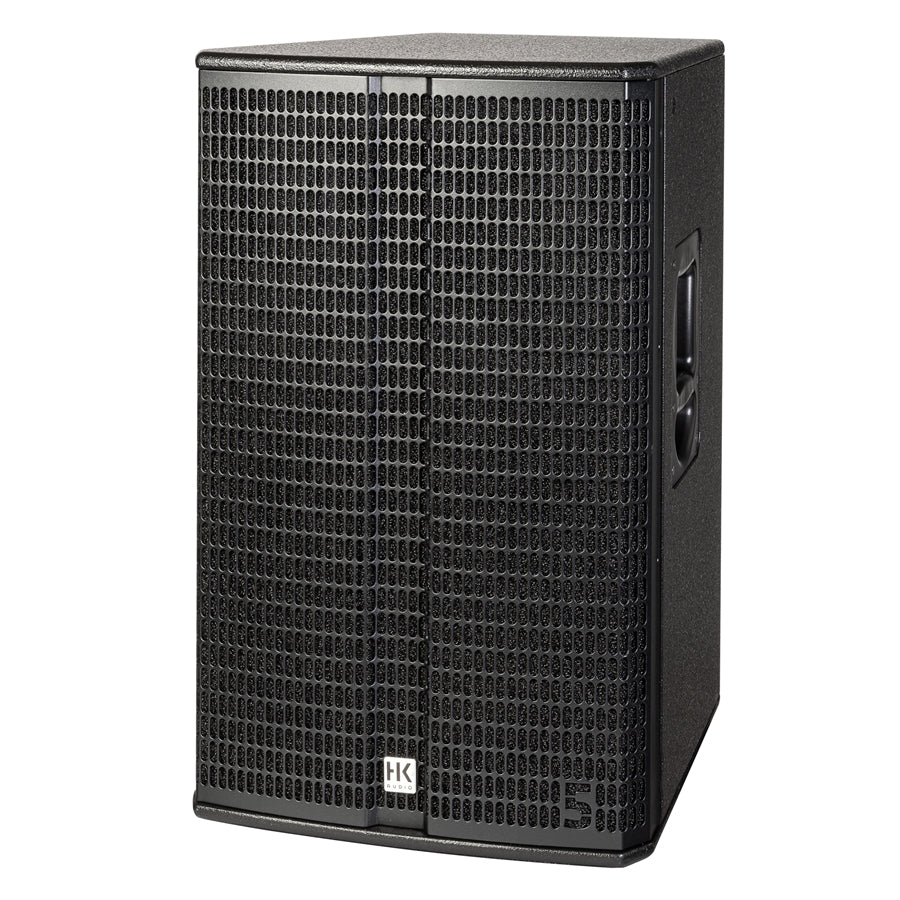

The HK Audio Linear 5 MKII 115 FA is a compact, multifunctional active two-way speaker that is easy to transport for extraordinary performance even in confined spaces. It features a 15" LF driver and a 1" tweeter. The powerful 1200W amplifier includes a DSP with an integrated equalizer, controllable via DSP Control. All Linear 5 series cabinets are made of plywood and MDF. This full-range version is ideal for stacked positioning or as a fixed installation speaker.

Linear 5 MKII enters the world of DSP

Full control over sound output, even during sound checks or performances, is a feature already well known in large touring systems or the LINEAR 7 and LINEAR 9 series. The DSP CONTROL application allows remote control of all LINEAR 5 components, from stage monitors to complete PA systems, via the network and HK Audio's proprietary DSP CONTROL software for Mac and PC. The features of the powerful DSPs, such as volume, equalization, limiting, delay, and polarity, are therefore accessible directly from the FoH position at any time.

Speakers that do not have their own DSP technology can do so thanks to the controlled DSP OUT present in all LINEAR 5 series speakers.

A 10-band semi-parametric equalizer, high-pass filter, low-pass filter, delay, polarity, and limiting are available for each DSP output, regardless of the LINEAR 5's DSP configuration.

The HK Audio Linear 5 MKII 115 FA cabinet

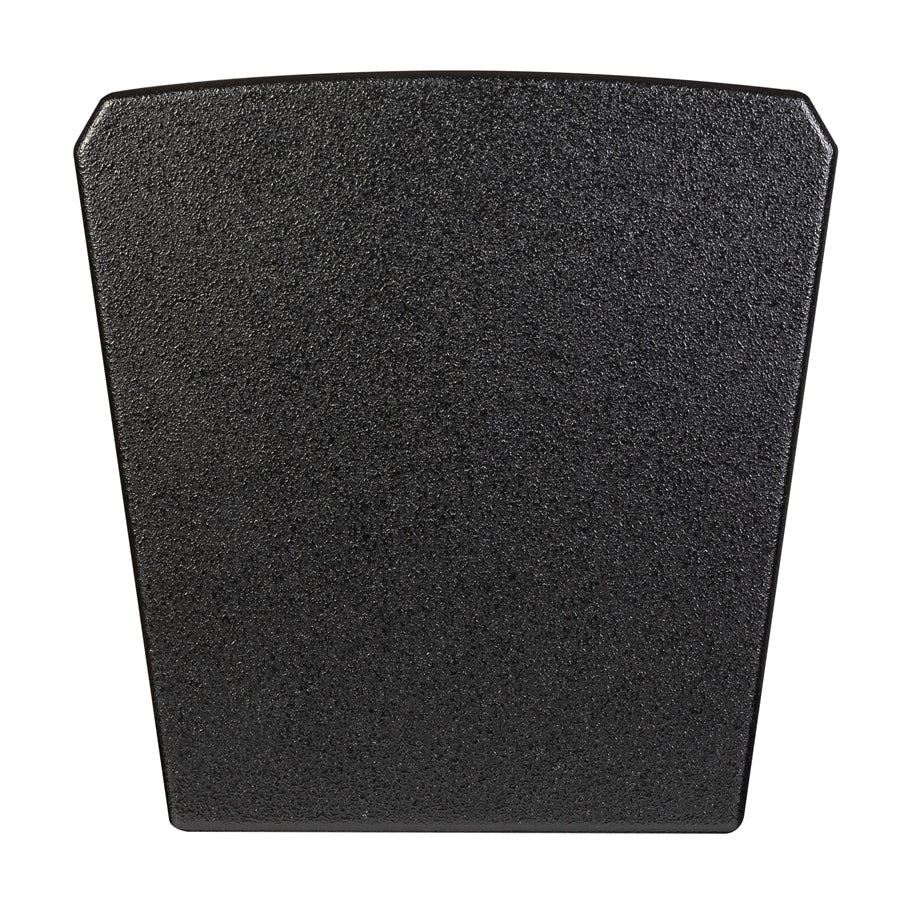

The acoustic characteristics and stability of wood are unrivalled in loudspeaker construction. It is for these reasons that all LINEAR 5 components are integrated into wooden cabinets. Thanks to the combination of MDF and birch plywood, the mid/high units and subwoofers are extremely compact and relatively lightweight, despite the robust material. The LINEAR 5 MK II 118 Sub A is made entirely of birch plywood.

Each individual speaker is manufactured in Germany using a combination of high-precision, computer-controlled production and craftsmanship, with toxin-free wood, water-based lacquer, and a strict recycling and waste prevention strategy.

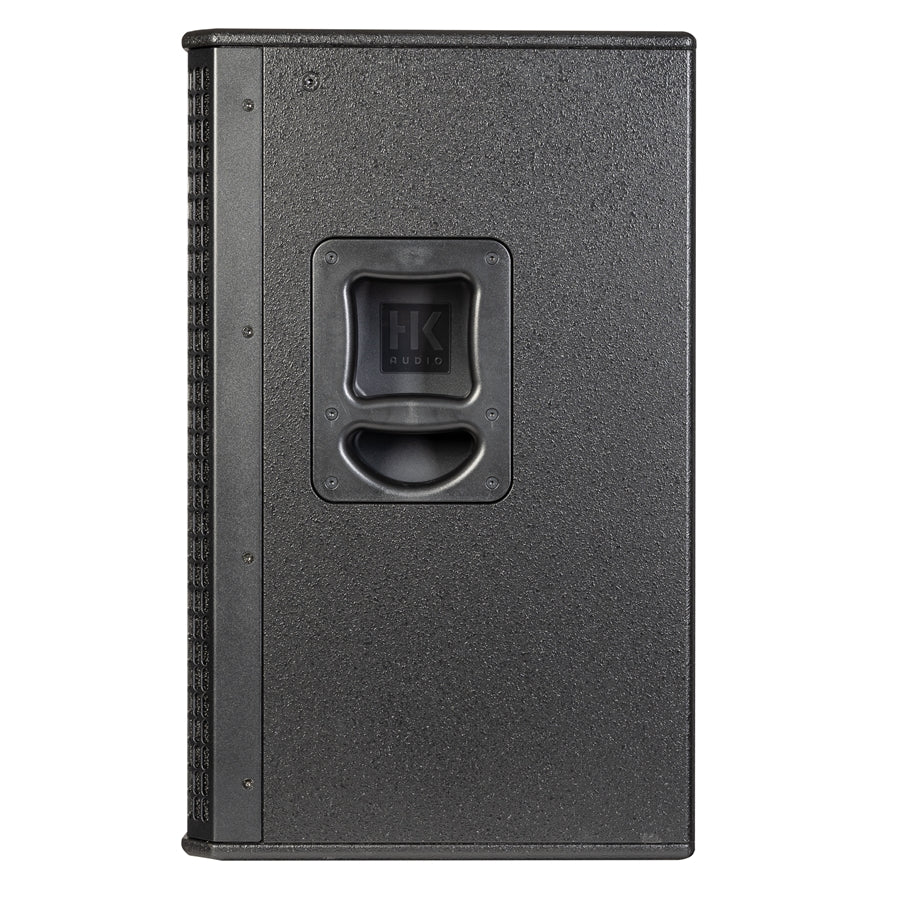

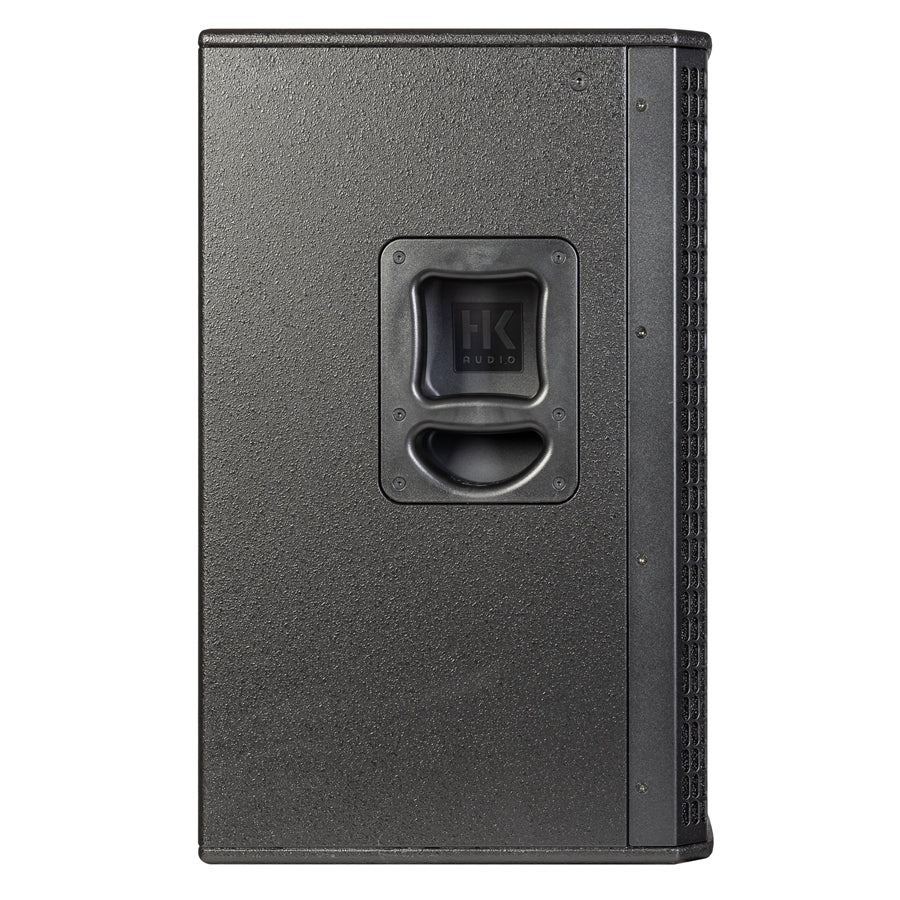

Multigrips Handles

Integrated MultiGrips handles make speaker handling a breeze and ensure even greater safety in any situation. They also allow for the mounting of professional lifting hardware. The TB-45N or TB-45NQ tilting brackets can be mounted directly on the MultiGrip handles, making them ideal for professional mounting or installation. LINEAR 5 series models have 3 x M8 mounting points and can be used together with AP-8 attachment points, for example.

Linear 5 MKII 115 FA Features


• SPL @ 10% THD: 129 dB half space

• Frequency response +/-3 dB: 57 Hz – 12 kHz

• Frequency response -10 dB: 54 Hz – 19 kHz

• 1200W Amplifier

• 1x 15” Driver, 3" voice coil

• 1" Tweeter, 1.7" voice coil

• 60° x 40° Rotatable dispersion

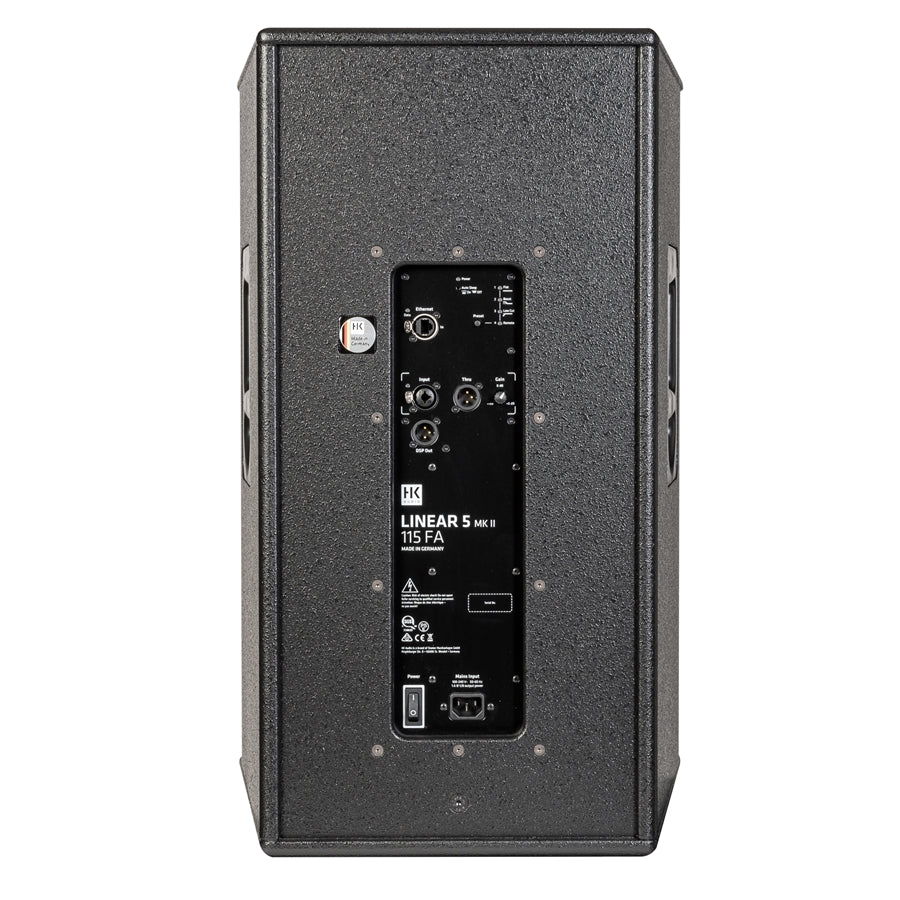

• Ethernet input

• Plywood and MDF cabinet

• Integrated DSP

• DSP Out output

• Latency less than 2ms

• 10-band semi-parametric equalizer, high-pass filter, low-pass filter, delay, polarity and limiting

• Dimensions 45 x 68.5 x 42 cm

• Weight 27.6 kg
