Line6 L6 Hx Effects Multi-effects Pedal

Description

LINE6 L6 HX EFFECTS MULTI-EFFECT PEDAL

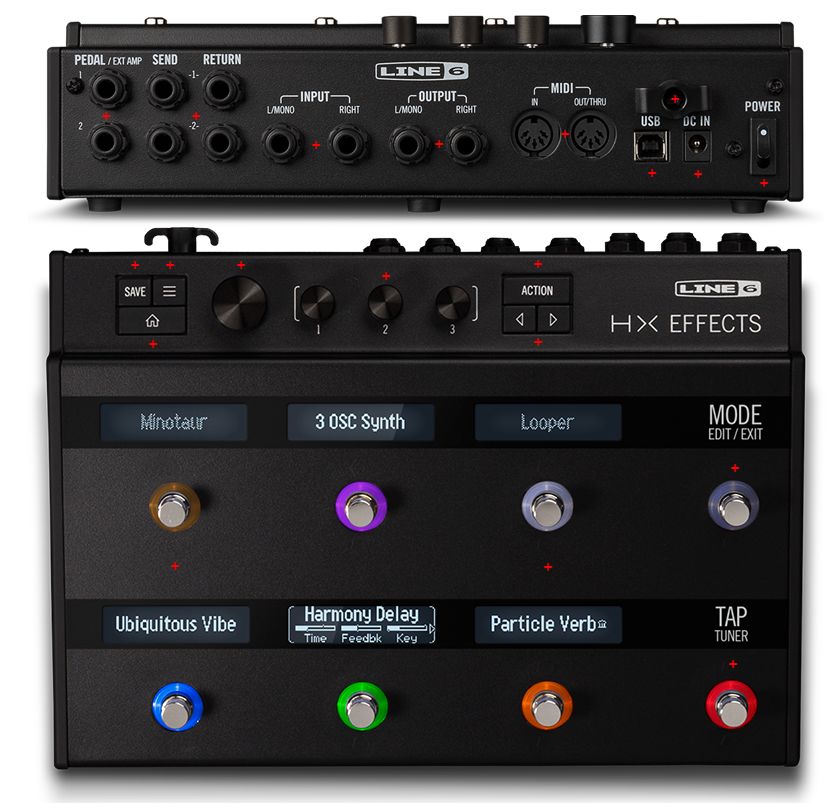

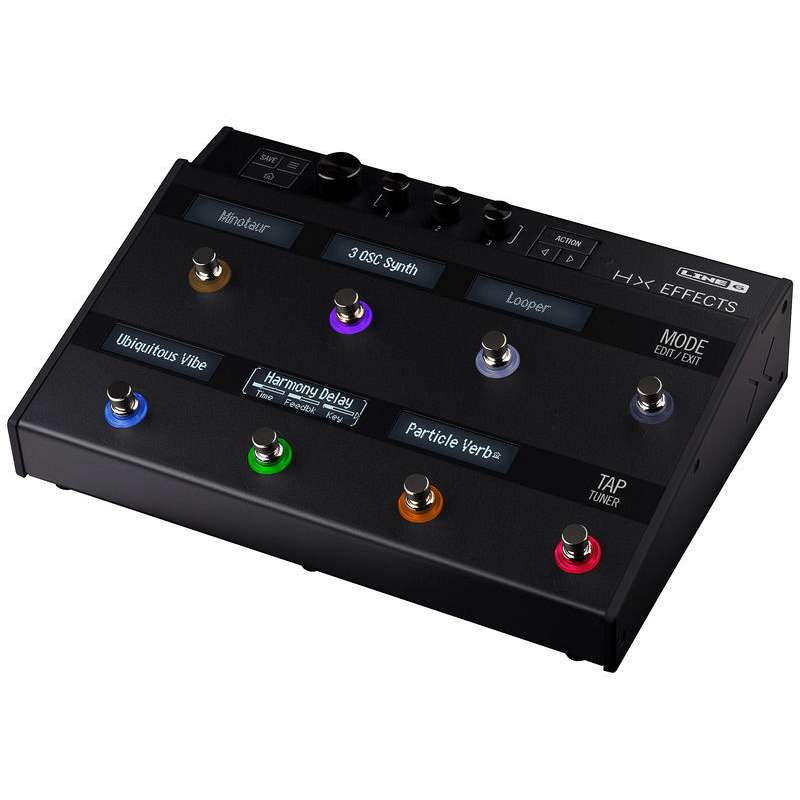

The Line6 HX Effect is an electric guitar multi-effect pedal derived from the HELIX series and is designed for guitarists who want to use Helix effects with traditional amplifiers and pedals.

Line6 HX Effect includes the entire range of Helix effects plus legacy effects from M-Series and Stompbox Modeler pedals and leverages powerful DSP to run up to 9 effects simultaneously.

All in a compact yet powerful pedalboard.

User manual

Specifications

More than 100 HX effects

Of which up to 9 effects can be used simultaneously

Import of own Impulse Responses (IRS)

Parallel stereo signal paths

Inputs can be switched between line / instrument level

Two assignable effect loops (stereo linkable)

Two expression pedal inputs and up to four amplifier switching outputs

LED displays for naming pedals and patch names

Colour-coded LCD rings to differentiate the effect types (delay, modulation, etc.)

Touch-sensitive footswitch for quick access to effect parameters and functions

Control: 4 stopless rotary knobs

Push Buttons: Save - Edit - Home - Action - Left - Right

Display: LED displays

Footswitch: 8 touch-sensitive footswitches with LCD ring

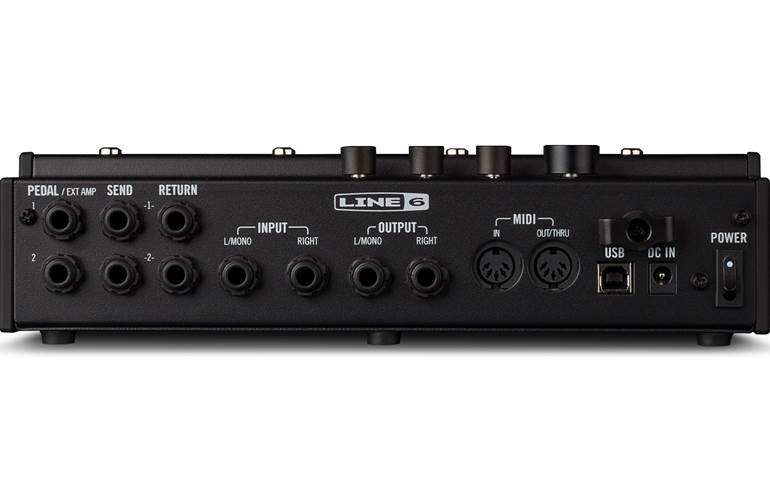

Connections: mono / stereo input (2x 6.3 mm jack) - mono / stereo output (2x 6.3 mm jack) - FX Loop 1 & 2 (4x 6.3 mm jack) - 2x pedal / Ext Amp (2 x 6.3 mm stereo jack) - MIDI In / Out - USB power supply connector (coaxial socket 5.5 x 2.1 mm - negative pole inside)

True bypass

Power supply with power adapter (included)

Note: No battery operation possible
