Description

QSC K10.2 is a powered loudspeaker with a peak output of 2000W (RMS: 1800W for lows, 225W for highs), featuring a 10-inch woofer, covering a frequency range from 56Hz to 20 kHz. Max SPL 130dB (peak), 124dB (continuous). Equipped with three audio inputs with separate volume controls: one Mic/Line on an XLR/F TRS ¼’’ connector, one Hi-Z/Line on an XLR/F TRS ¼’’ connector, and one 3.5mm mini-jack. 2 XLR/M outputs for direct out of inputs A and B, and one XLR/M post-gain mix out for daisy-chaining. The speaker weighs 14.5KG and can be pole-mounted, floor-stacked, or flown using the integrated M10 threaded inserts. Dimensions: 519×320×300mm.

FEATURES OF QSC K10.2


• Superior audio performance

• 2000 Watt Class D amplifier

• Intrinsic Correction™ function optimizes speaker performance in any acoustic space

• Directivity Matched Transition^® (DMT) technology ensures excellent power response and sonic consistency across the entire listening area

• Its refined design allows it to integrate perfectly into the aesthetics of any space

• Its solid ABS construction ensures resistance and durability

• Can be used as a PA system or placed on the floor as a stage monitor

• Ability to recall factory presets and custom presets for use with common applications

• Multifunction digital display for selecting various functions such as crossover, equalization, delay, and EQ curves

• Dual pole mount socket (standard and with 7.5-degree downward tilt)

• M10 threaded inserts for suspension

• Optional security panel prevents unauthorized tampering with controls

• EASE and CAD models and information available online

• Six-year warranty (with product registration)

Powerful DSP with advanced technology.

For any amplification need, the QSC K10.2 speaker offers a refined design with a 2000 Watt peak power amplifier, a 10-inch woofer, and a 1.4-inch tweeter.

The cooling fan has been designed to be as quiet as possible, making the K10.2 perfect even in situations where background noise needs to be controlled and minimized.

Specific dynamic processing has also been developed and applied to the DSP to protect the driver from damage and prevent the speaker from distorting during use.

Ease of use and save functions

Various EQ curves, such as Live, Dance, or Monitor, can be selected from the extensive list of factory presets already loaded in the DSP for immediate and rapid EQ correction.

Scenes can also be created, saved, and recalled, which can contain user settings regarding equalization, delay, and input configuration.

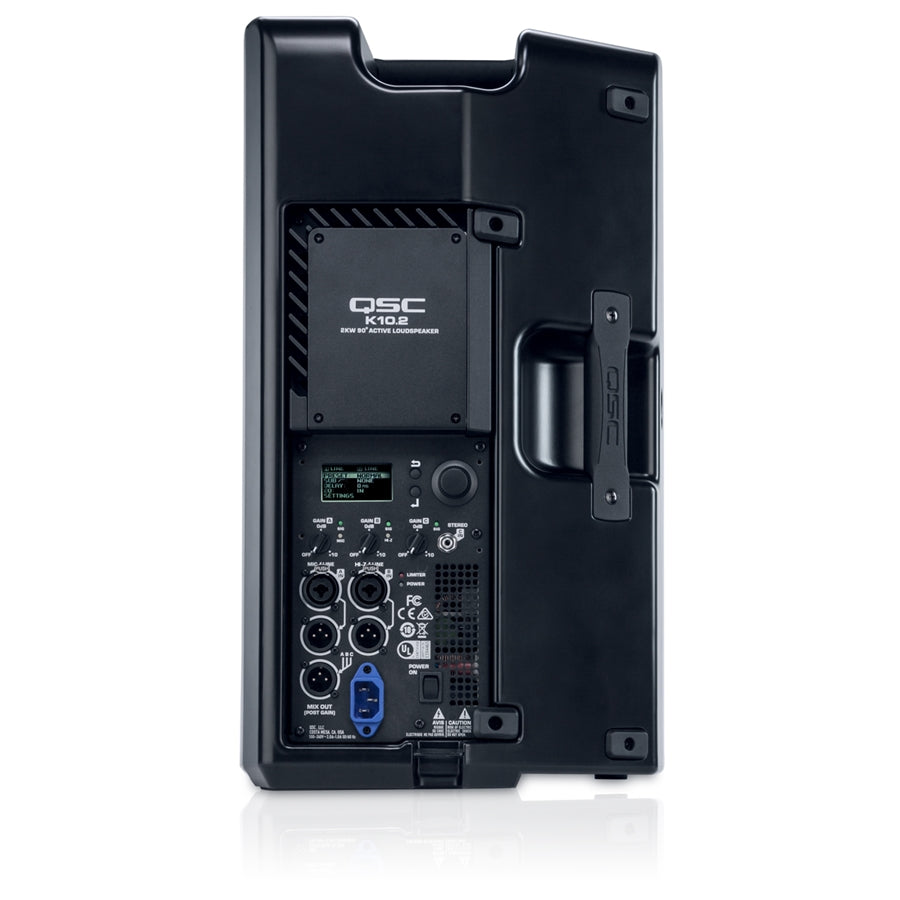

Audio inputs and integrated three-channel mixer

QSC K10.2 offers 2 balanced combo inputs that accept both XLR/F and ¼’’ TRS jacks, and a 3.5mm mini-jack input for connecting smartphones, MP3 players, or computers. All three inputs have separate volume controls. Via the display, it is possible to select the correct pre-amplification for microphone or line signals, and also via the display, it is possible to select the necessary pre-amplification for a high-impedance instrument rather than a line signal for the second channel.

It is therefore possible to connect a microphone, a guitar, and perhaps an MP3 player with a backing track directly to the inputs on the rear panel, and adjust their levels from the integrated mixer, making the QSC K10.2 practical and effective in small live performance situations.

Both inputs are connected respectively to a pair of XLR/M outputs that allow for daisy-chaining with other devices.

Through the Mix Out, we can connect other speakers to the QSC K10.2 and control our output volume via the gain out parameter.

A security cover (K-LOC) can be installed to prevent accidental or unauthorized changes to settings.

QSC K10.2 adapts to your mounting needs and ensures perfect sound coverage for any space

Directivity Matched Transition^® (DMT) technology matches the woofer's coverage angle with the horn's pattern to ensure a uniform response throughout the venue where it is installed. Intrinsic Correction™ is also used to ensure uniform power response across the entire listening area.

The result is an extremely accurate loudspeaker that performs well in a wide range of spaces regardless of their acoustics.

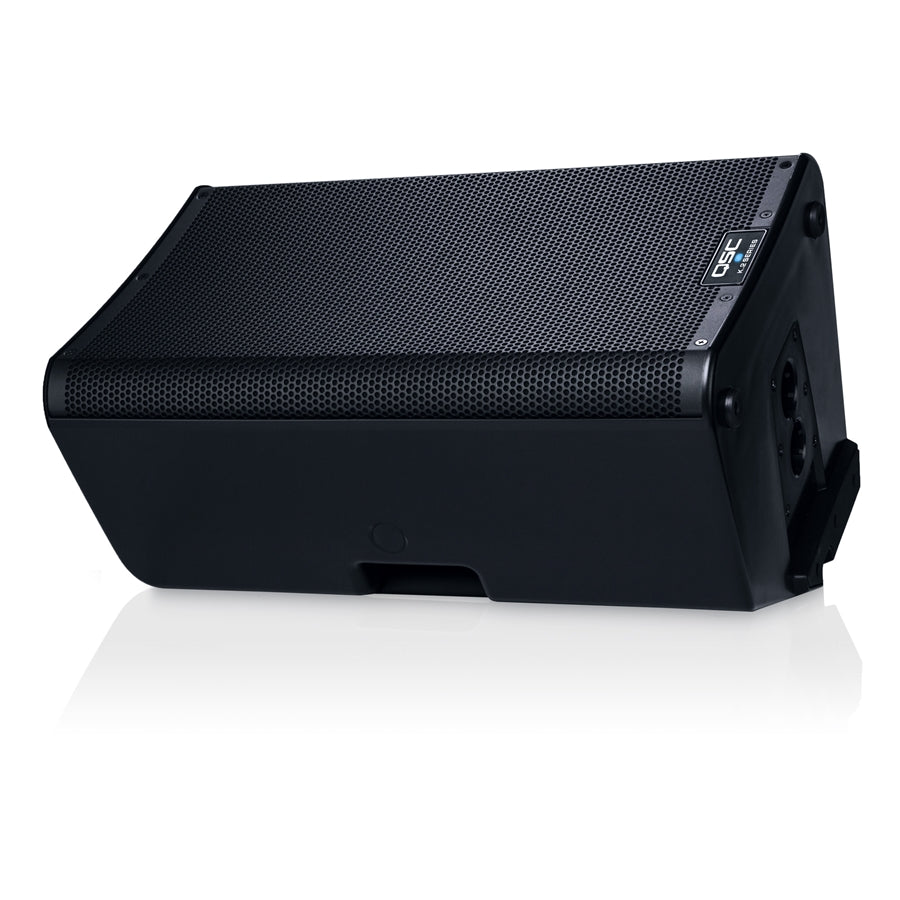

Thanks to its robust cabinet, QSC K10.2 can be used in main PA applications or as a floor monitor. The dual pole cups allow for a zero or 7.5-degree downward tilt when used on a stand. This enables more uniform coverage in the listening area and fewer problems due to reflections from the rear wall. M10 threaded inserts are integrated for suspension applications. A mounting accessory is also available for permanent installation on walls and ceilings or for attachment to a truss system.

QSC, credibility and reliability always guaranteed

This product, like all others, comes with a 2-year warranty upon purchase.

If registered on the QSC parent company portal, an additional 4 years of warranty are added, bringing the total product warranty coverage to 6 years.

Technical specifications QSC K10.2

Configuration: Two-way multi-purpose active speaker

Woofer: 254mm (10-inch) cone

Tweeter: 35.6mm (1.4-inch) titanium diaphragm

Frequency response (-6dB): 56Hz – 20kHz

Frequency range (-10dB): 50Hz – 20kHz

Angular coverage: 90° axisymmetric

Maximum nominal SPL: 130dB at 1M (peak), 124dB at 1M (continuous)

Amplifier: Class D peak 1800W (LF), 225W (HF)

Cooling: Low-noise, variable speed fan

Controls:

                      3 potentiometers

                      2 selection buttons

Indicators:

                       45x25.4mm (1.75×1 inch) monochrome LCD display,

                       2 LEDs for on/off status (front and rear)

                       3 LEDs for input signal

                       Input A Mic active

                       Input B Hi-Z active

                       1 active limiter LED

Connectors:

                         2 XLR/F ¼ ‘’ locking combo (Mic/Line and Hi-Z/Line)

                         1 3.5mm mini-jack (stereo input)

                         2 XLR/M (parallel outputs)

                         1 XLR/M (Mix Output)

                         1 locking IEC power connector

Input power: 100 – 240 VAC, 50 – 60Hz

AC power consumption 1/8 power: 100 VAC, 2.1A / 120 VAC, 1.9A / 240 VAC, 1.1A

Stand-by power consumption: 0.2 A at all voltages

Construction material: Impact-resistant ABS

Mounting points: 2 M10 threaded inserts plus Pull-Back

Color: Black (RAL 9011)

Grille: 18-gauge powder-coated steel, internal fabric lining

Speaker dimensions: 519×320×300mm
Box dimensions: 570×440×406mm

Net weight: 14.5KG

Shipped package weight: 17.6KG

Regulations: CE, WEEE, UL, China RoHS, RoHS II, FCC Class B

Optional accessories: K10 Tote, K10 Outdoor Cover M10 Kit-C, K.2-LOC Lock Out Cove K10.2 Yoke
