JTS Ru8012Db-Ru850Ltb Wireless Kit

Description

JTS RU8012DB-RU850LTB WIRELESS KIT

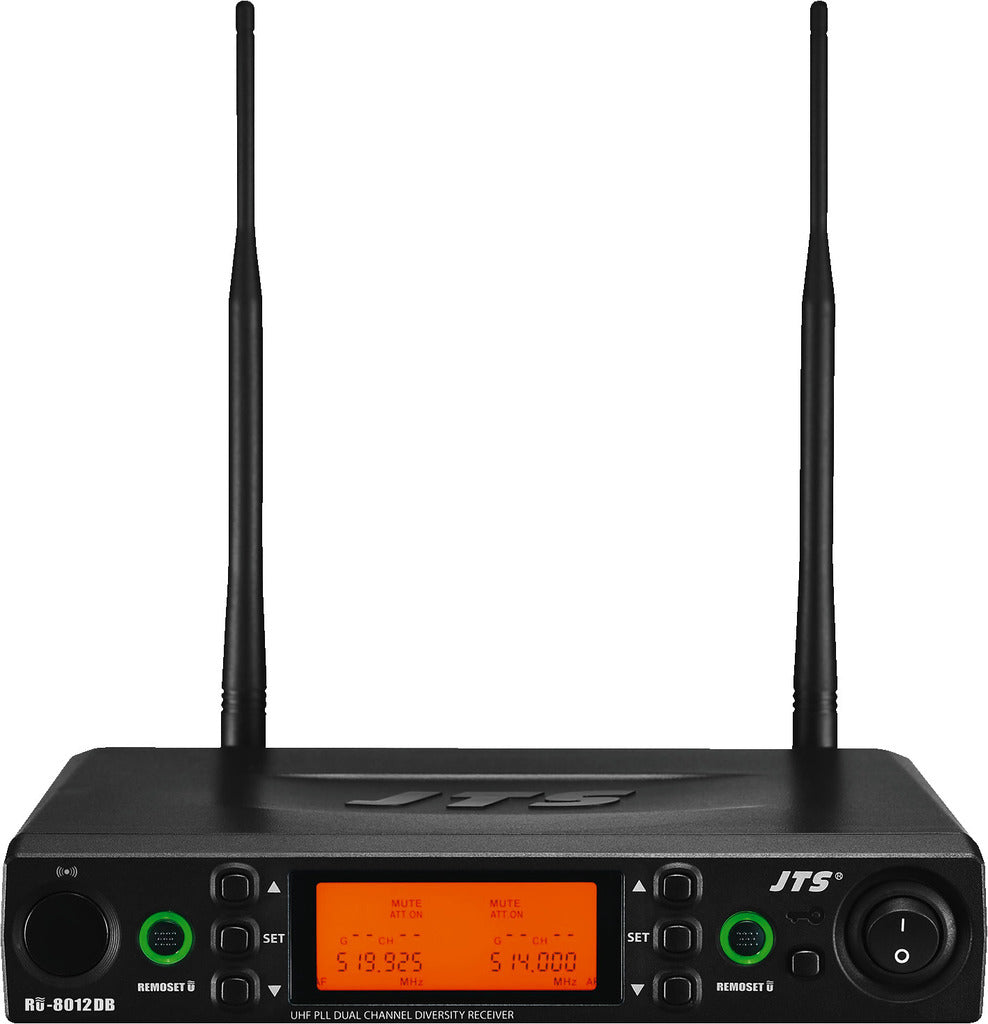

Based on the successful experience of US-8002DB, the RU-8012DB is designed with JTS second-generation wireless technology. To cope with the crowded radio spectrum, the system provides more compatible channels within a limited bandwidth. The patent pending REMOSET sends the scanned channel data to the transmitter by pushing a button. To fulfill critical audio demand, overall noise and sibilance noise have been reduced to an extremely low level. 100 meters operation range satisfies most demand from most applications. To be environment-friendly an optional integrated charger is available.

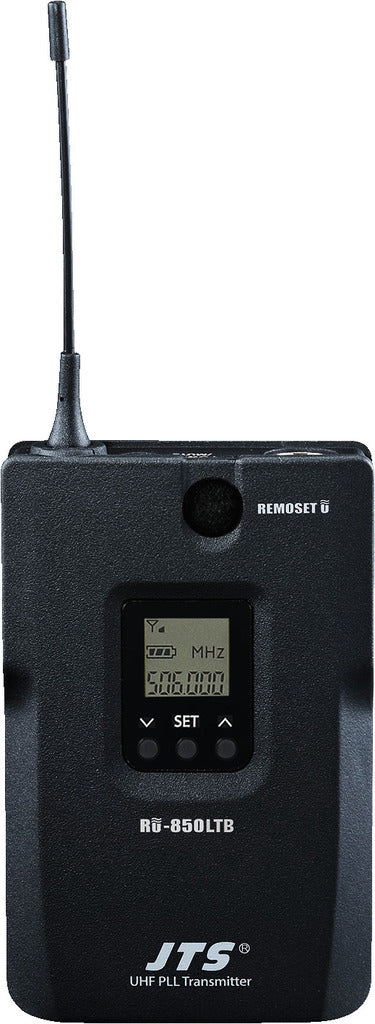

RU-850LTB

This innovative bodypack transmitter is designed with both REMOSET U and all functions on itself. Settings include Frequency, Group / Channel, Sensitivity, RF Power and Auto Power Off. All data will be transferred to this transmitter by pushing the REMOSET U button on the front panel of the receiver. Auto power-off function can be set to OFF or ON with a selection of 10, 30 and 60 minutes without audio input. This will save battery life and avoid over-discharge. In addition to REMOSET U, a user can make the settings on the transmitter side.

Specifications

Description receiver unit

Carrier frequency range 690-726 MHz

Audio frequency range 50-16,000 Hz

Channels 2

THD < 0.6%

Dynamic range > 105 dB

Admiss. ambient temp. 0-40 °C

Specifications receiver -

Audio signal receiver 630 mV/600 Ω XLR (line),

63 mV/600 Ω XLR (mic),

320 mV/600 Ω jack

Power supply receiver via encl. power supply

Width receiver 212 mm

Height receiver 38 mm

Depth receiver 144 mm

Weight receiver 508 g

Connections receiver 2 x XLR, bal.,

2 x 6.3 mm jack, unbal.
