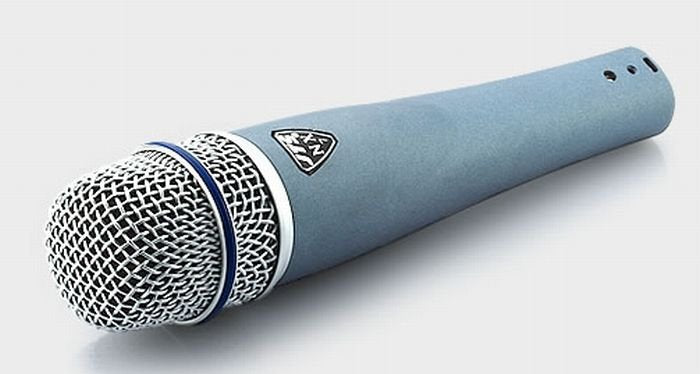

JTS NX7 Dynamic Microphone For Instruments

Description

The NX-7/NX-7S is engineered for optimum warmth and clarity. The outstanding pickup pattern and sound quality make NX-7/NX-7S ideal for vocals, drums, guitar amps and other instruments. Dynamic shock mount keeps noise remarkably and consistently low. The flat top grille allows the mic. cartridge closer to a sound source for maximized low frequency proximity effect.

Specifications

Type Moving Coil Dynamic

Frequency Response 50~16,500 Hz

Polar Pattern Cardioid,rotationally symmetrical about microphone axis, uniform with frequency

Sensitivity(at 1,000Hz) -72dB*(0.25mV)*0dB=1V/μbar

Impedance 600Ω

Phasing Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

Connector Three-pin professional audio connector

(male XLR type)

Case Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille

Net Weight 235 grams (8.3 oz)
