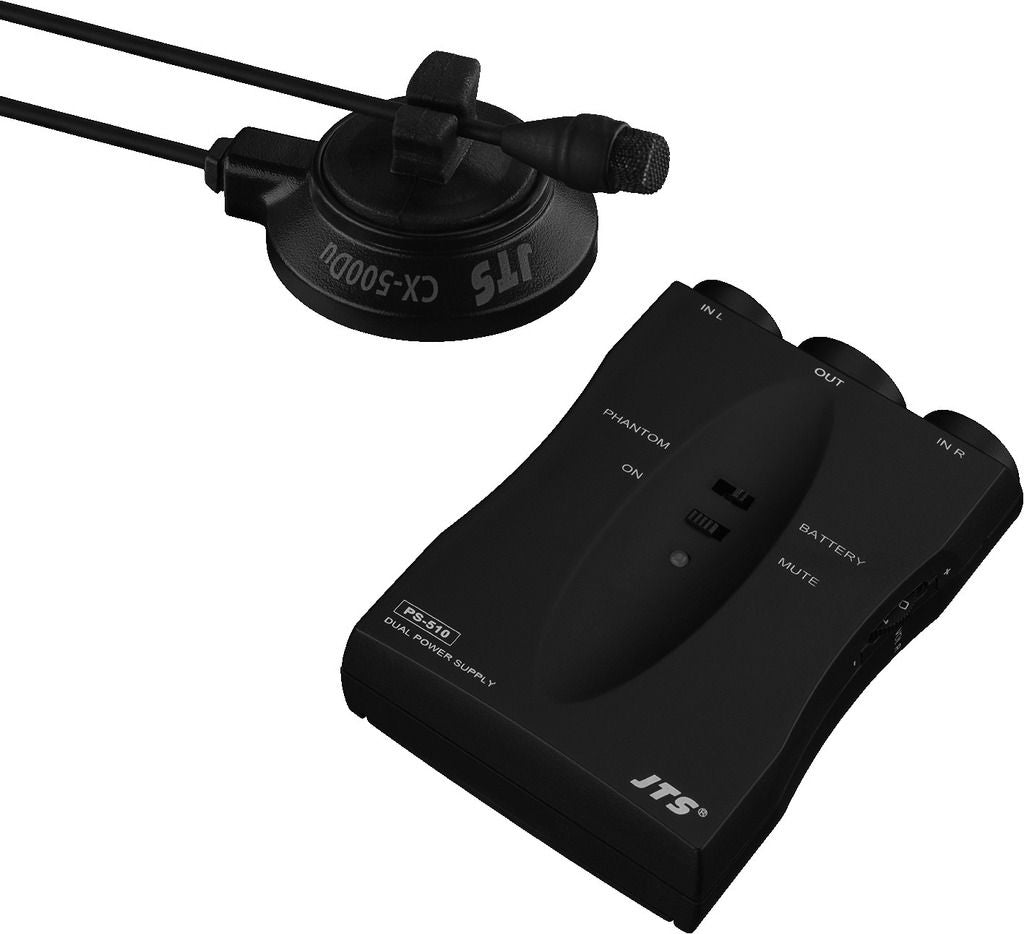

Jts Cx-500Duset Acoustic Guitar Microphone

Description

The CX-500DU distributes two transducers. It pushes the boundary of miking to a new edge. Every thrill and vibration will be reproduced regally. By moving the microphone, a user can achieve a clear and crisp, warm and spacious sound or a combination. Additionally, a user can adjust the balance between the two transducers through the bundled power module and find the preferred mix. The hi-tech adhesive allows for desired placement, but no damage from scratches or paint will be caused.

CX-500DU is ideal for string instruments.

Specifications

CX-500DUSET

Description instrument microphone

Transmission method cable

Polar pattern omnidir.

System back electret

Audio frequency range 20-20,000 Hz

Nominal impedance 1.5 kΩ

Sensitivity 12.6 mV / Pa

S/N ratio 68 dB

Max. sound pressure 130 dB

Power supply DC 1-5 V via PS-510M

Housing material plastic

Permitted ambient temperature. 0-40 °C

Weight 6.5 g

Connection Mini XLR 2x4-pole

Category adapter / phantom power mixer

Input voltage 9 V battery or 12-48 V phantom power

Connections Mini XLR 4 x 4-pole (input)

1 x XLR, bal. (output)

Permitted ambient temperature. 0-40 °C

Dimensions 65 x 92 x 30 mm

Weight 81 g
