JB Systems DMX Recorder for Playback of Light Show

Description

JB Systems DMX Recorder for Playback of Light Show

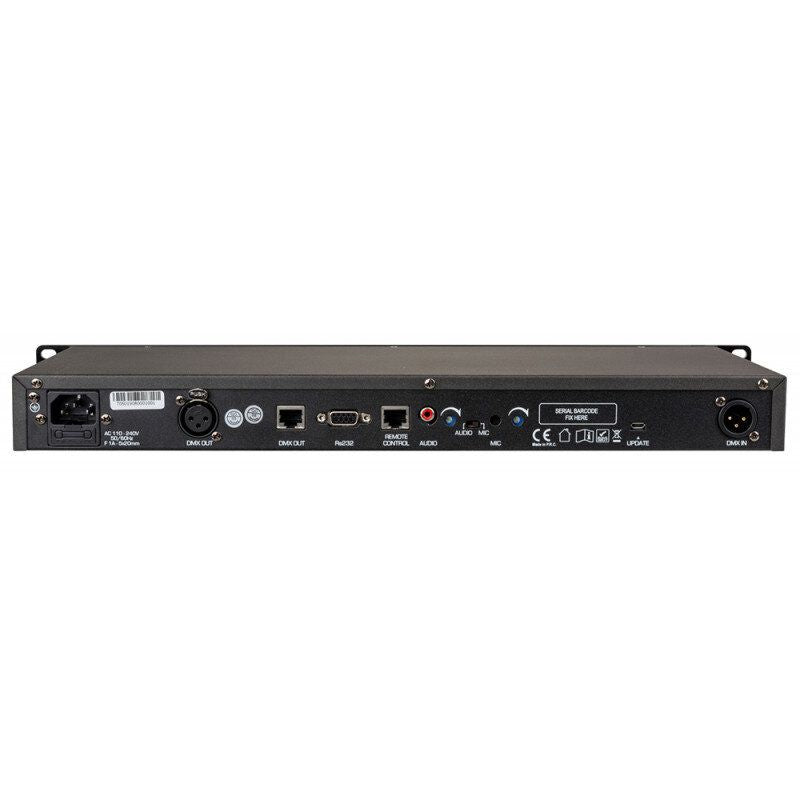

The DMX recorder is equipped with an internal microphone (with adjustable gain on the rear panel) and a line-level audio input (RCA). Recorded shows can be played back fully automatically or by following the tempo of the set audio signal. An optional remote controller (DMX RECORDER REMOTE, order code B05021) is available.

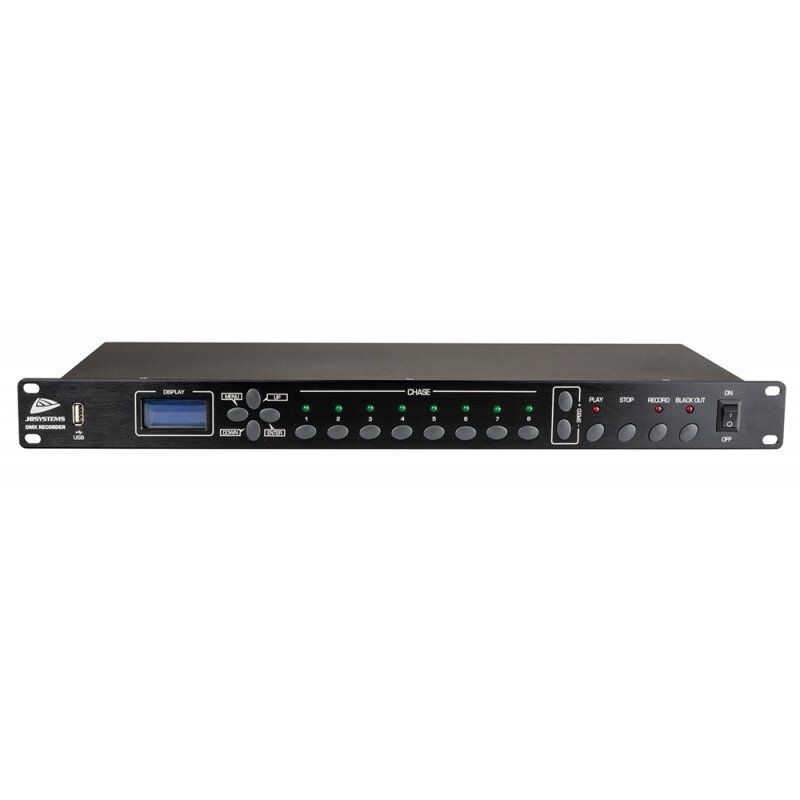

Blackout function with a dedicated button on the front panel. 8-digit, two-line LED display for convenient use of all menu functions. Dedicated buttons for playback and recording functions for simple and intuitive use.

Standard 19" 1U rack size.

Specifications

Power Supply: 100-240 V AC 50/60 Hz

Power Consumption: 9 W

Color: Black

Display Type: LCD

Mounting: 19" Rack Mountable

Rack Units: 1U

IP Protection Grade: For indoor use only

Maximum Number of DMX Channels: 512

Input Connections: 3-pin XLR, RCA, IEC, USB

Output Connections: 3-pin XLR, USB

Dimensions: 48.2 x 17.3 x 4.4 cm

Weight: 1.88 kg
