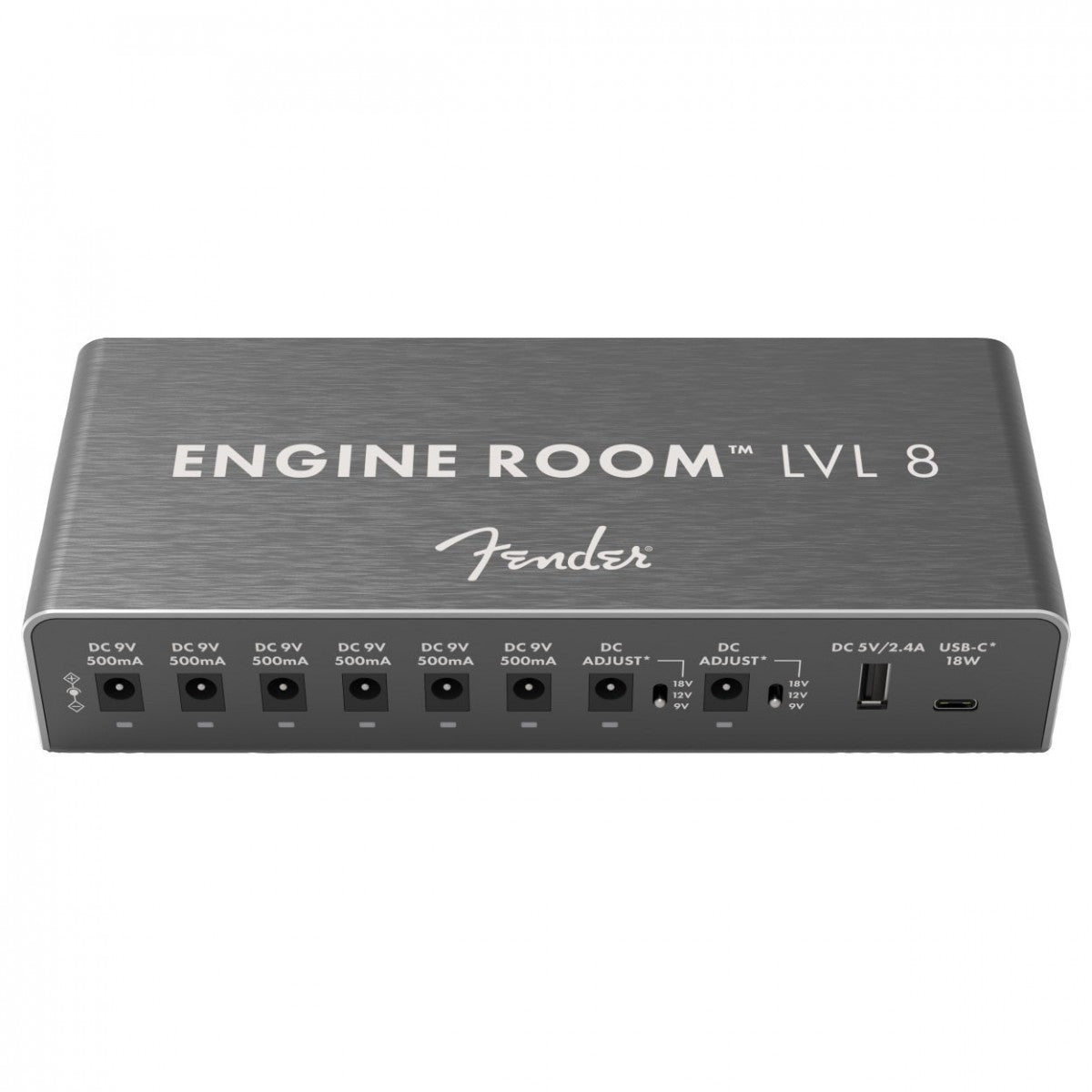

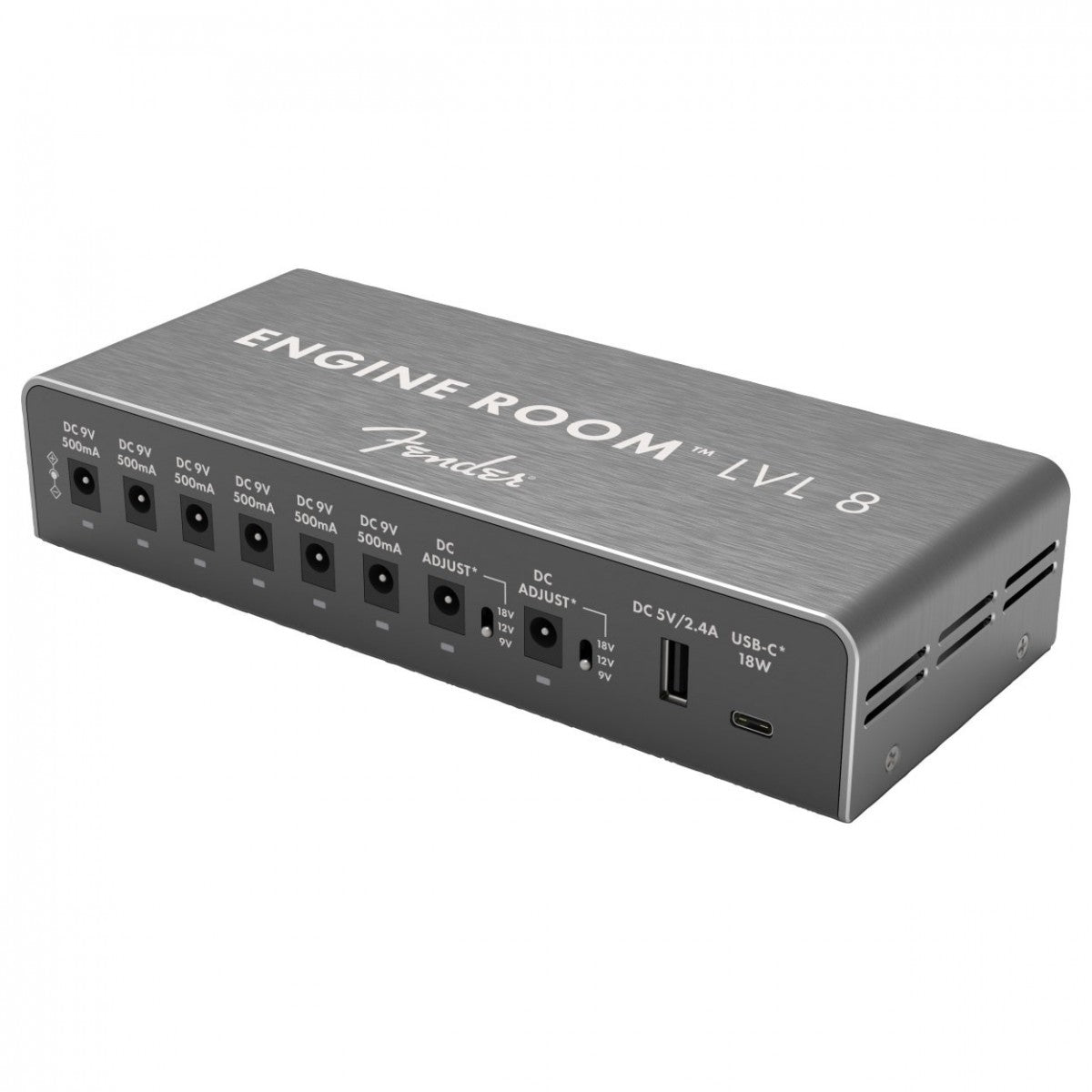

Fender Engine Room Lvl8 8-Output Power Supply with USB for Pedalboards

Description

Fender Engine Room Lvl8 Power Supply 8 Outputs With USB For Pedalboards

8-OUT EFFECT PEDALBOARD POWER SUPPLY

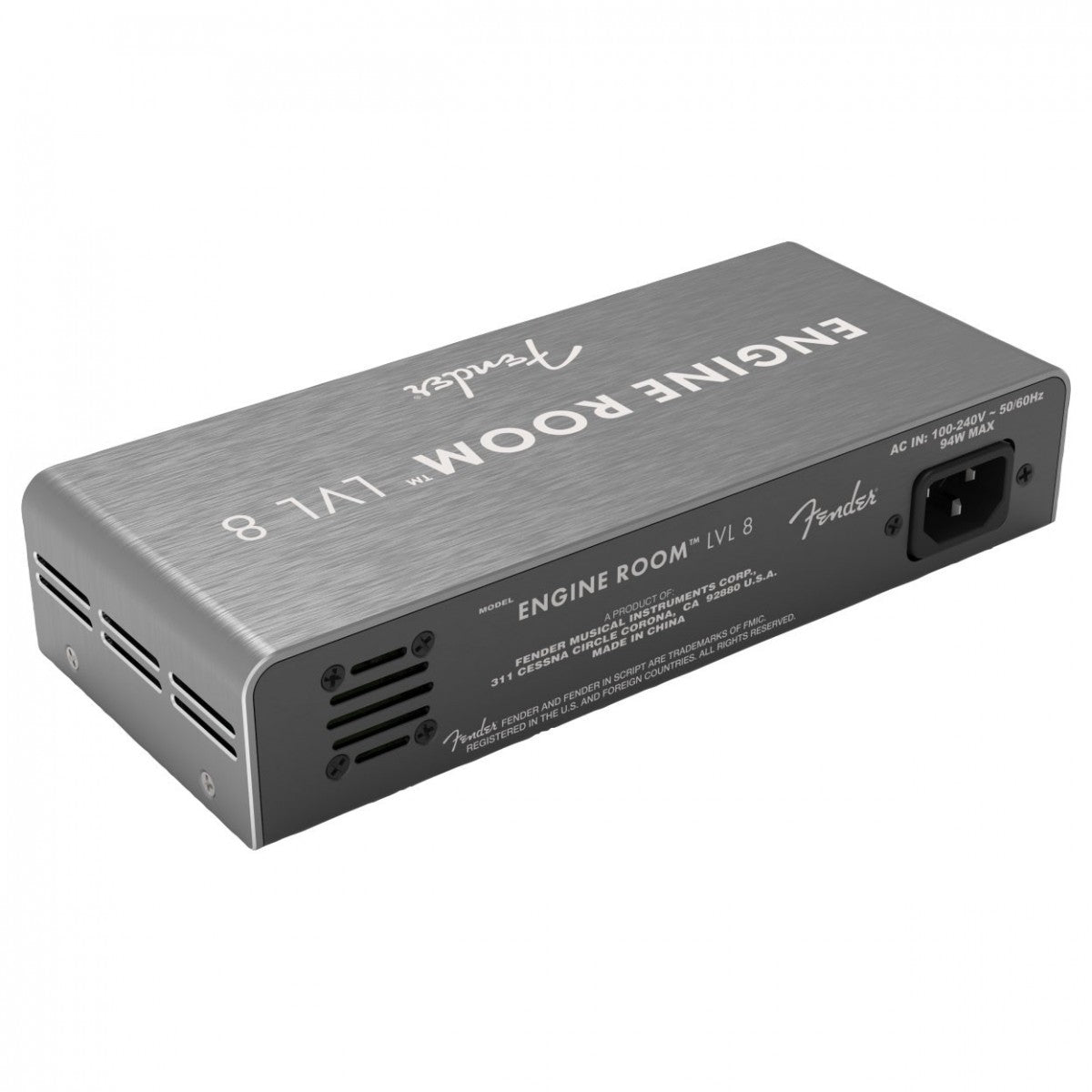

Designed to meet all your pedalboard's needs, the Engine Room LVL8 is ready to be delivered. Featuring 8 isolated power outputs, 6 are capable of delivering 9V DC at 500mA while 2 additional outputs provide selectable voltage (9V/12V/18V) via a 3-way switch or a slide switch. A courtesy IEC output on the back allows you to add an additional Engine Room LVL12 for larger rigs.

The Engine Room power supply was designed by Fender's in-house team of experts in Southern California. The chassis is made of lightweight, durable anodized aluminum, and its sleek, low-profile appearance is designed to accommodate most pedalboards. Road-tested and ready for live or studio use, the Engine Room power supply is designed to boost your performance.

Specifications

8 Isolated outputs - 6 x 9V DC at 500mA outputs and 2 x selectable voltage (9V/12V/18V) outputs

Global mains voltage (100-240V AC) 50/60Hz for use anywhere in the world

Standard IEC mains connector

Dimensions: 214 x 90 x 42mm

5V USB-A and USB-C output for charging smart devices

Cables included

4 x 2.1mm barrel connector, 24" (60cm) length

2 x 2.1mm barrel connector, 18" (45cm) length

2 x 2.1mm barrel connector, 12" (30cm) length

1 x 2.5mm to 2.1mm barrel connector (45cm)

1 x 2.5mm to 2.1mm reverse polarity connector (45cm)

1 x 3.5mm TS to 2.1mm barrel (35cm)

1 x 9V battery clip to 2.1mm barrel (45cm)

1 x IEC daisy-chain cable (male - female)
