Fbt Amplified Subwoofer Subline 112Sa 12-inch Cone

Description

Fbt Subline 112Sa Powered Subwoofer 12-inch Cone

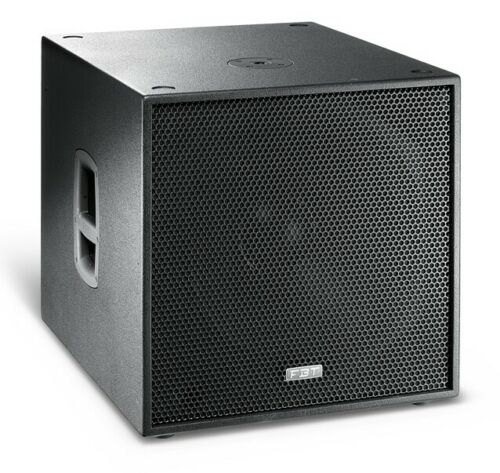

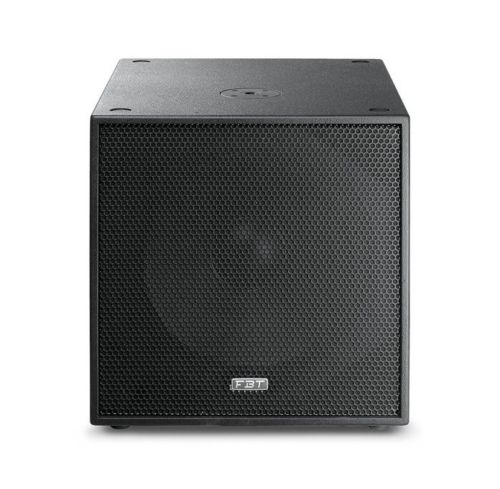

FBT's SUBLine 112SA is a compact active bass-reflex subwoofer with a 12" cone and a 700W RMS high-efficiency, low-distortion Class D LF full-bridge amplifier.

The birch plywood cabinet features scratch-resistant paint, predisposition for wheels, an ergonomic handle, and a moderate weight.

Designed to maximize the SPL/SIZE ratio, FBT's SUBLine series subwoofers feature a Class D amplifier, DSP processors with presets to match any FBT speaker, and a switching power supply.

Additionally, they have stereo IN/OUT, allowing a single subwoofer to be used with Left and Right satellites.

Specifications

Compact active bass-reflex subwoofer

12" custom B&C speaker

700 W RMS Class D amplifier

Switching power supply

Max SPL 133 dB

Frequency response 42 Hz-140 Hz

Built-in DSP processor with 8 equalization presets

2 equalization tunings with 2 different crossover frequencies, also in cardioid configuration

8-step delay

Omnidirectional dispersion

Weight 23 Kg

Technical specifications

Nominal power LF/HF: 700 W RMS

Peak power LF/HF: 1400 W

Frequency response: 42Hz - 140Hz -6dB

Low frequency woofer: 12 - 75 mm voice coil

Maximum SPL: 129/133 half-space dB

Dispersion: omnidirectional HxV

Impedance: 22 Kohm

Crossover: 90 or 140Hz KHz

Power supply: 640 VA

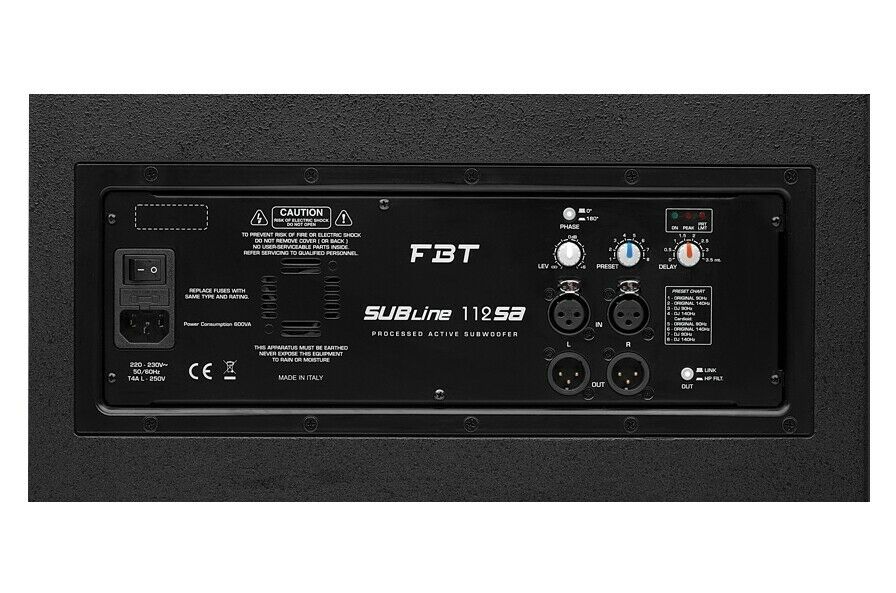

Input: Stereo XLR with loop, Hi-Pass out

Dimensions (WxHxD): 430 x 447 x 480 mm

Weight: 23 kg
