Fbt Jmaxx 114A Loudspeaker

Description

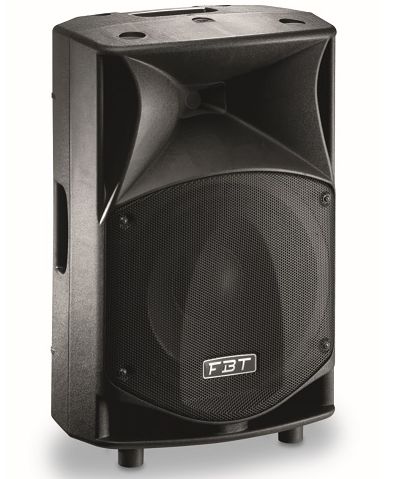

Fbt Jmaxx 114A Speaker

The new FBT JMaxX series combines ease of use and versatility for many portable audio applications and installations: musicians, DJs, sound reinforcement rental, corporate events, bars and clubs. With its appealing shapes designed to eliminate unwanted cabinet resonance and enhance powerful low-frequency performance, the JMaxX speaker series is available in three elegantly constructed two-way models: the 14" JMaxX 114A, the 12" JMaxX 112A, and the 10" JMaxX 110A. All feature the latest FBT 90° x 60° HF horn design, offering improved projection, accuracy, and dispersion of mid and high frequencies. Providing a myriad of possibilities for bands, DJs, and solo artists, as well as permanent installations, each JMaxX model is actually comprised of four speakers in one. Derived from a decade of experience in portable amplification, the carefully customized equalization presets offer a highly intelligible response for monitoring; a slightly boosted response in lounge bar applications; powerful and dynamic sound for DJs and nightclubs; and a generic EQ setting that mirrors the original and familiar familiarity of FBTMaxX.

Common to all JMaxX models is the latest generation Class D amplifier with 700W + 200W with universal switching power supply, providing abundant power and headroom to reproduce even the largest transients without distortion. XLR inputs and outputs, volume control, EQ presets and filters, and ground lift switches are located on a clearly organized rear panel, making speaker setup and operation intuitive and consistently repeatable.

The versatility of the JMaxX is further underscored by the numerous mounting and fixing options provided by ergonomic cabinets. Mounting in fixed installations is facilitated using M10 suspension points or wall mount flanges, while portable use is made easy by the integrated 35mm socket. There's no need for separate stage monitors, as the JMaxX cabinet profiles are wedge-shaped with 12°, 40°, and 55° angles, and when used with specific EQ presets for floor monitoring, they will ensure maximum clarity for performers.

Specifications

Configuration: 2-Way

Cabinet: Bi-amplified two-way bass reflex design

Power: 700W RMS LF, 200W RMS HF, Class D with switching power supply

Peak Power LF / HF: 1400/400W

DSP: 4-EQ presets

Control Panel: XLR IN and XLR LINK, Volume, EQ Presets, HP filter, GND LFT selector

2x M10 suspension points, 35mm (1 3/8") stand flange, wall mount plate

90° H x 60° V constant directivity horn

Stage monitor angle 12°, 40° or 55°

Frequency Response: 45Hz - 20kHz - 6dB

Low frequency driver: 14" - 2.5mm voice coil

High frequency driver: 1" - 1.4mm voice coil

SPL continuous / max peak: 126/132dB

Dispersion: 90° x 60° (HxV)

Input Impedance: 22 kOhm

Crossover frequency: 1.6kHz

Input connector: XLR with loop, 6.3mm jack

Dimensions (WxHxD): 402 x 644 x 345mm

Weight: 14kg
