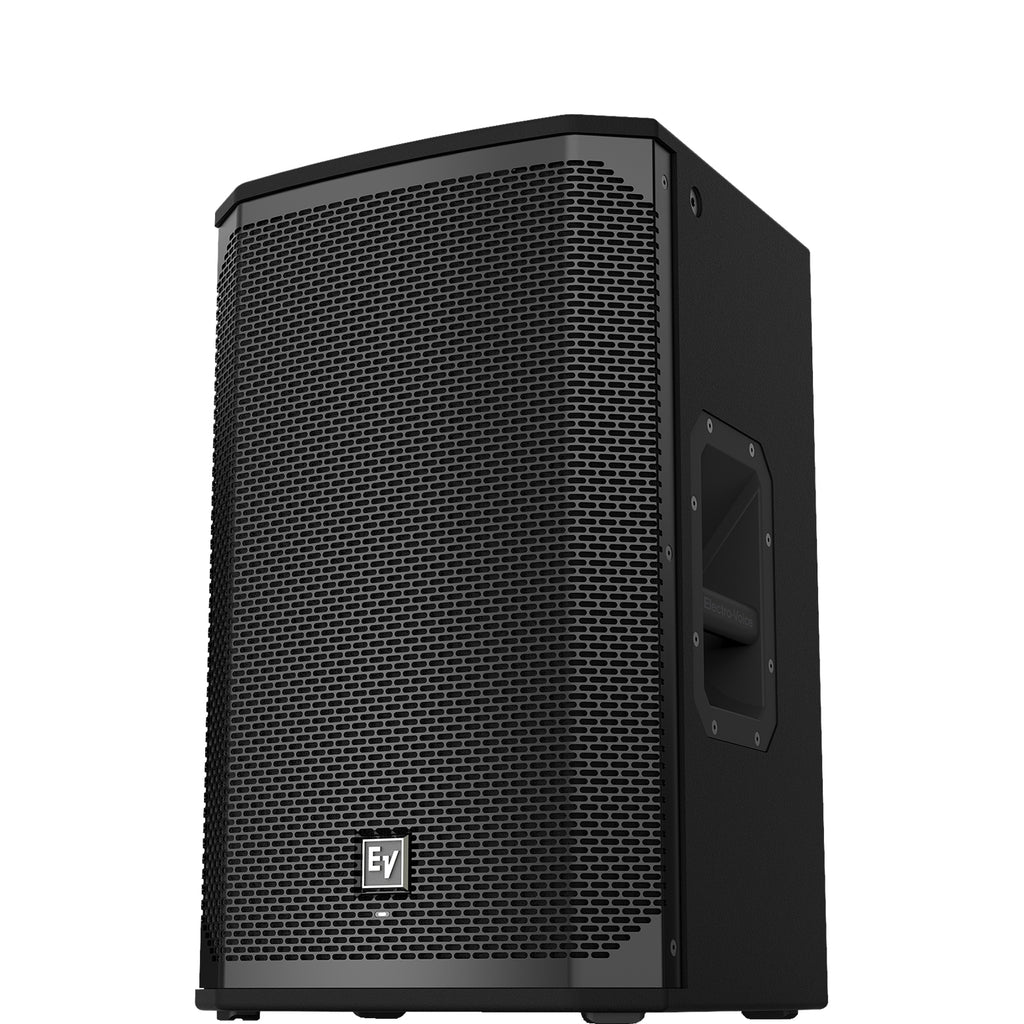

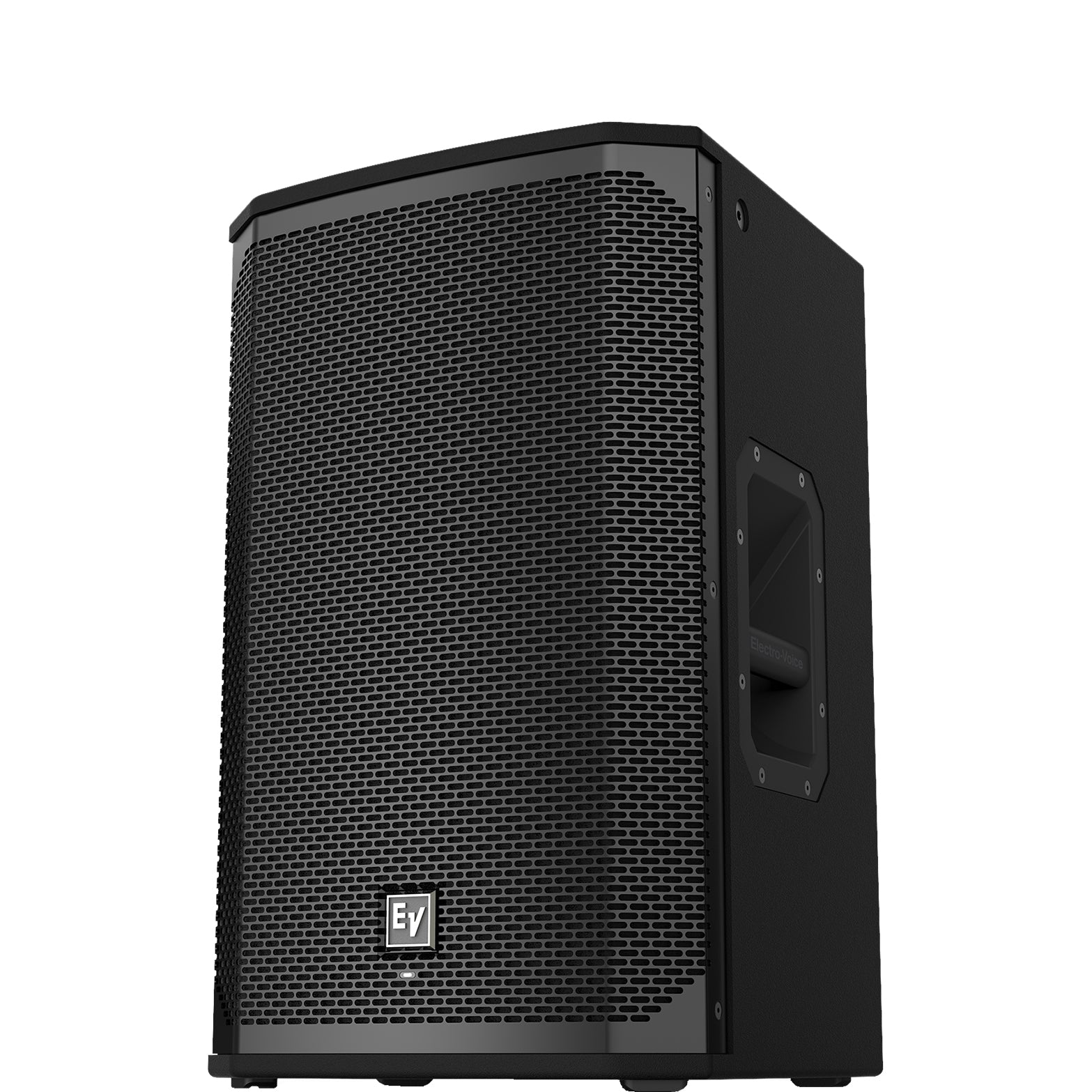

Electro Voice EKX-12

Description

2-way full-range passive system. Asymmetrical trapezoidal cabinet, constructed from 15mm plywood panels, internally reinforced, covered with EVCoat and finished in black. Includes 2 metal transport handles, a tripod mount, and 8 M10 anchor points for easy mounting of non-included installation accessories. LF: 1 speaker with 12' cone (EVS-12M). HF: 1 1' titanium diaphragm driver (DH-1M) loaded into a constant directivity horn with Signal Synchronized Transducers (SST) technology. Coverage angle: H 90° x V 60°. Response -10dB: 55Hz - 20kHz. FR: 350W / 8 / 95dB / 131dB. Connectors: 2x NL4. Dimensions (HxWxD): 607 x 375 x 356 mm. Weight: 17.4 kg
