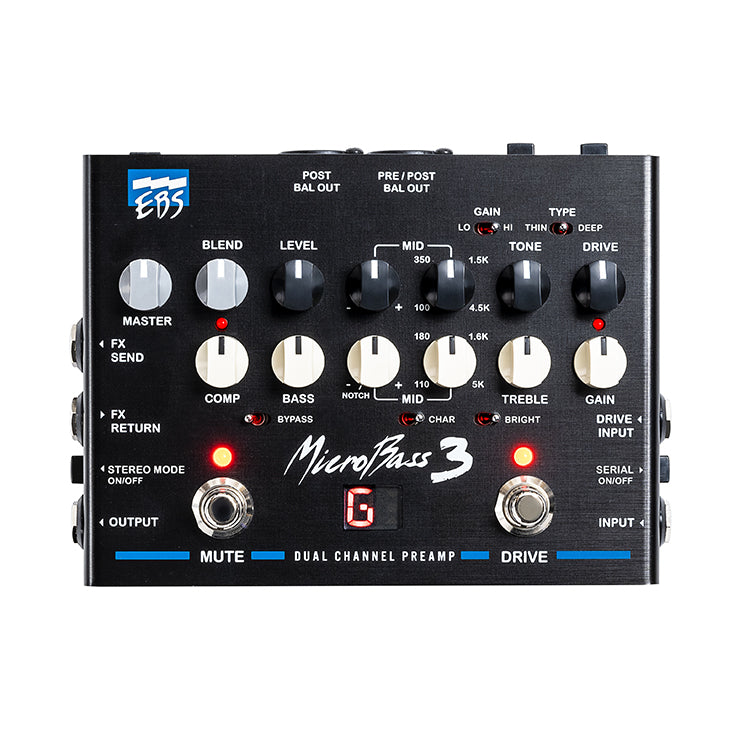

EBS EBS-MB3 - MicroBass III

Description

EBS-MB3 - MicroBass III - Two-Channel Preamp/Loop/DI Box (Clean + Drive) - Special Effects Series - Based on EBS HD360 and EBS Fafner II technology - 100% Analog - The preamp operates at the same signal level as a mixing console (+/- 15V) - Controls: Master + Blend + Level + 2x Mid + Tone + Drive + Comp + Bass + 2x Mid + Treble + Gain - Switches: Mute On/Off + Drive On/Off + Bypass On/Off + Char On/Off + Bright On/Off + Gain Lo/Hi + Type Thin/Deep + Serial On/Off + Stereo Mode On/Off + Ground/Lift + Post Clean/Char - Input: 1x Drive Input (1/4" Jack) + 1x Input (1/4" Jack) + 1x Aux In - Output: 1x Headphones (1/8" Jack) + 1x Balanced (Xlr) + 1x Output (1/4" Jack) - Send & Return FX - Integrated tuner - Power supply: 9V DC 400 mA Max - Dimensions: 168 x 124 x 53 mm - Weight: 660g.

Specifications

- Two-Channel Preamp/Loop/DI Box (Clean + Drive) - Special Effects Series - Based on EBS HD360 and EBS Fafner II technology - 100% Analog - The preamp operates at the same signal level as a mixing console (+/- 15V) - Controls: Master + Blend + Level + 2x Mid + Tone + Drive + Comp + Bass + 2x Mid + Treble + Gain - Switches: Mute On/Off + Drive On/Off + Bypass On/Off + Char On/Off + Bright On/Off + Gain Lo/Hi + Type Thin/Deep + Serial On/Off + Stereo Mode On/Off + Ground/Lift + Post Clean/Char - Input: 1x Drive Input (1/4" Jack) + 1x Input (1/4" Jack) + 1x Aux In - Output: 1x Headphones (1/8" Jack) + 1x Balanced (Xlr) + 1x Output (1/4" Jack) - Send & Return FX - Integrated tuner - Power supply: 9V DC 400 mA Max - Dimensions: 168 x 124 x 53 mm - Weight: 660g.
