Dpa Microphones 4099-DC-1 Clip Microphone for Guitar Ukulele and Dobro

Description

DPA Microphones 4099-DC-1 Clip Microphone for Guitar, Ukulele, and Dobro

Now with CORE by DPA Technology

The 4099 Microphone is the recognized standard for this microphone category. The CORE version further enhances sound quality, setting this product even further apart from its competitors. The 4099 CORE Microphone brings greater clarity and detail to your sound and increases the dynamic range. Anyone looking for great audio quality should choose CORE.

CORE by DPA is a powerful new technology integrated into DPA miniature microphones. We have minimized distortion. From pianissimo to forte, you will experience greater clarity and openness. Learn more about CORE by DPA.

From piano to guitar; to strings; wind and percussion, the 4099 series works impressively on all instruments. This model can beautifully reinforce an entire orchestra. You can move the microphone to another instrument; just make sure you have the right type of clip to mount it correctly. The award-winning 4099 series offers a much more natural sound than any other clip-on microphone or pickup. This condenser microphone reduces unwanted noise and accurately captures the true voice of your acoustic instrument.

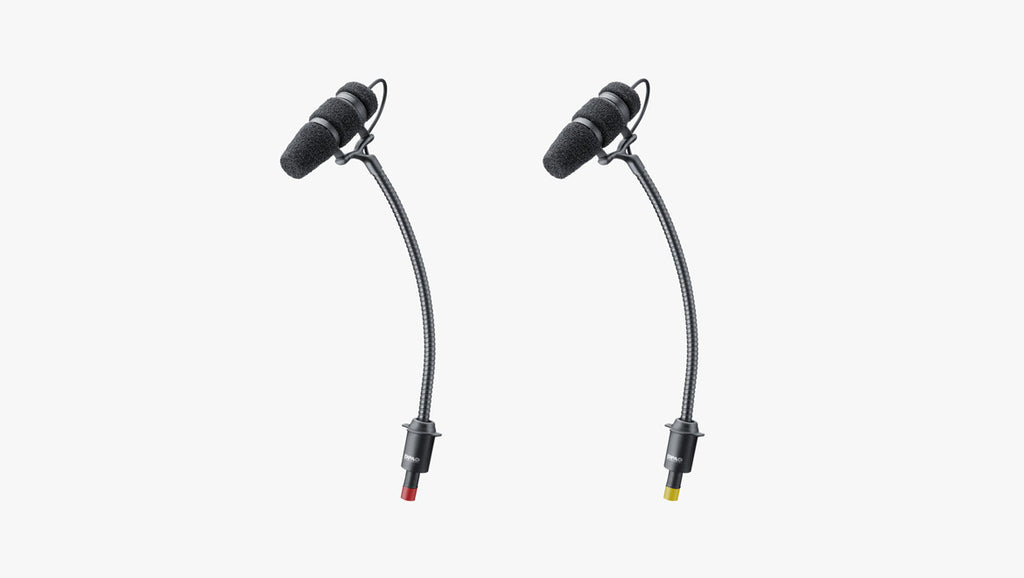

This microphone is available in two versions:

4099 CORE Mic, High SPL (red mark on connector) - used for close-miking almost all types of instruments

4099 CORE Mic, Extreme SPL (yellow mark on connector) - used for close-miking extremely loud instruments, such as drums and some brass instruments

The 4099 CORE Microphone has an improved design with an elastic suspension, which offers excellent isolation from mechanical noise. Detachable cables are available in standard or heavy-duty versions depending on the application – both are designed to withstand the activities of daily use. A versatile, integrated gooseneck extension allows for quick and easily repeatable mounting.

Specifications

IP58 Certified

All microphones with CORE by DPA technology, including the 4099 CORE, are IP58 certified. This robustness is achieved through a series of protection mechanisms:

• Hydrophobic nano-coating of the grille and body

• Hermetic sealing of the delicate amplifier integrated into the microphone

• Dual gold plating of the diaphragm

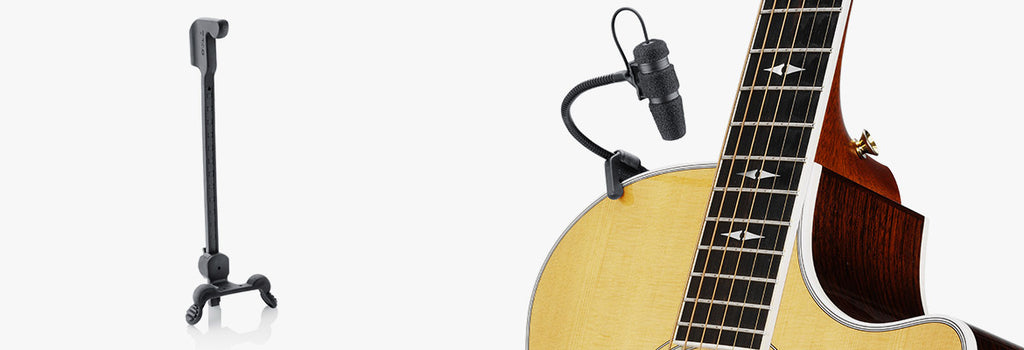

The microphone fits instruments with a body depth between 35 mm (1.4 inches) and 122 mm (4.8 inches). Users will appreciate how delicately this condenser microphone adheres to their precious instrument. It is elegant, lightweight, discreet, and designed to be unobtrusive during a performance. The mounting mechanism makes it easy to move the microphone between instruments with one hand.

Choose the 4099 CORE microphone (4099-DC-1-199-G) for guitar, mandolin, ukulele, or dobro.

Directional patternSupercardioid

Principle of operationPressure gradient

Cartridge typePre-polarized condenser

Frequency response20 Hz - 20 kHz

Effective frequency range ±2 dB, at 20 cm (7.9 in)80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz. Second order low-cut filter at 80 Hz with DAD4099-BC

Sensitivity, nominal, ±3 dB at 1 kHz6 mV/Pa; -44 dB re. 1 V/Pa

Equivalent noise level, A-weightedTyp. 23 dB(A) re. 20 μPa (max. 26 dB(A))

Distortion, THD < 1%128 dB SPL RMS, 131 dB SPL peak

Dynamic rangeTyp. 108 dB

Max. SPL, THD 10%142 dB SPL peak (label color red)

Rated output impedanceFrom MicroDot: 30 - 40 Ω. From DAD4099-BC or DAD6001-BC: 100 Ω

Cable drive capabilityUp to 300 m (984 ft) with DAD6001-BC/DAD4099-BC XLR Adapter

Output balance principleSignal balanced with DAD4099-BC or DAD6001-BC XLR Adapter

Common mode rejection ratio (CMRR)> 60 dB from 50 Hz to 15 kHz with DAD4099-BC or DAD6001-BC XLR Adapter

Power supply (for full performance)For wireless systems: Min. 5 V - max. 10 V through DPA adapter

With DAD6001-BC or DAD4099-BC: P48 (Phantom Power). Will work from 12 V

Current consumptionTyp. 1.5 mA (microphone). 3.5 mA with DAD4099-BC or DAD6001-BC XLR Adapter

ConnectorMicroDot

ColorBlack

WeightMicrophone: 17 g (0.60 oz)

Instrument Microphone Clamp Mount (CM4099): 16 g (0.56 oz)

Instrument Microphone Clip for Accordion (AC4099): 5 g (0.18 oz)

Instrument Microphone Clip for Bass (BC4099): 20 g (0.71 oz)

Instrument Microphone Clip for

Microphone diameter5.7 mm (0.22 in)

Microphone length45 mm (1.8 in)

Cable length1.8 m (5.9 ft)

Cable diameter1.6 mm (0.06 in) / 2.2 mm (0.09 in)

Polarity+V at MicroDot pin for positive sound pressure (and pin 2 on DAD4099-BC or DAD6001-BC XLR adapter)

Temperature range-40°C to 45°C (-40°F to 113°F)

Relative humidity (RH)Up to 90%

Gooseneck length140 mm (5.5 in)

Sensitivity selection tolerance (at 1 kHz)±1 dB
