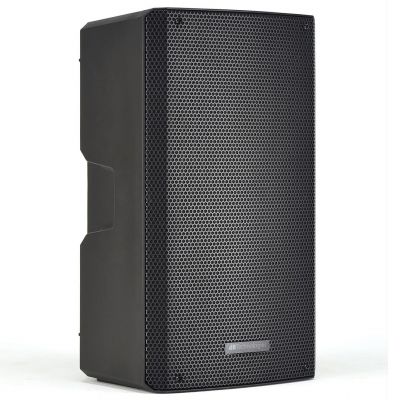

Db Technologies KL10 2-Way Active Bluetooth Loudspeaker 400w

Description

Db Technologies KL10 2-way Bluetooth 400w Active Speaker

DB Technologies KL 10 is a 2-way active speaker with Bluetooth, featuring a 10" woofer and a 1" driver (1" voice coil).

The system is powered by a 400 W amplifier module and advanced sound processing where linear-phase FIR filters allow the systems to deliver consistent, uniform, and crystal-clear audio performance from any listening position.

In addition, presets allow the equalization to be adapted to the application in use.

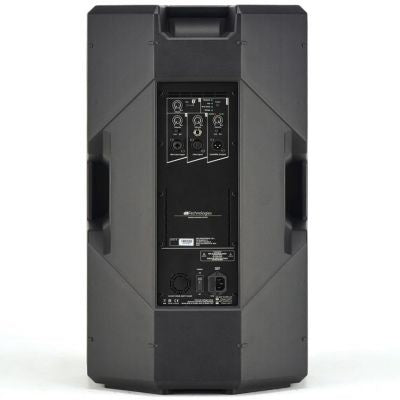

All cabinets are equipped with 3 INPUT channels with independent level control: CH 1 is a balanced XLR/6.3 mm Jack line/mic INPUT combo with a source selection switch; Ch 2 is a balanced XLR and TRS jack IN; CH 3 allows you to connect any device via Bluetooth connection.

A balanced XLR-M output allows connection to another speaker or a mixer. A slide switch allows you to select which signal is sent to the main output: LINK (the signal is taken before any level control) MIX (the signal is determined by the level control of each channel and Main).

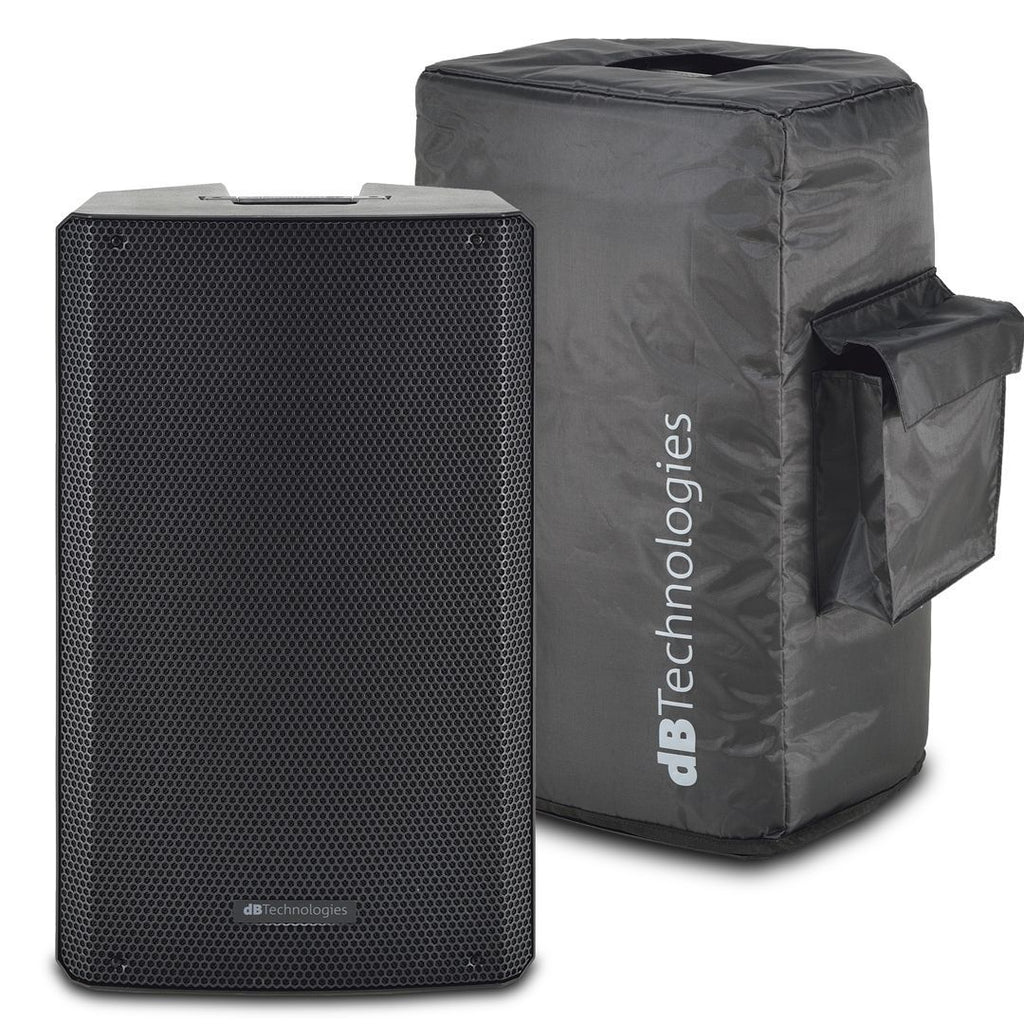

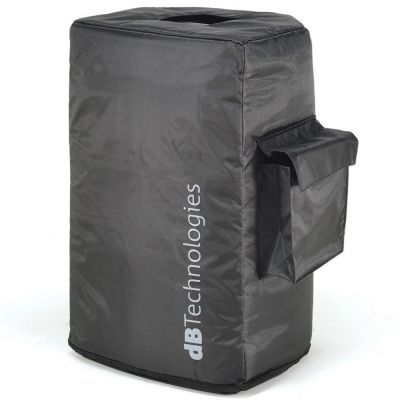

The DB Technologies KL 10 comes with a soft cover featuring a pocket for cable storage.

Discover all Db Technologies products in the catalog by clicking here

Specifications

2-way active speaker

Bluetooth connection

3 INPUT channels

1 OUT channel with link/mix switch

DSP with linear-phase FIR filters

Equalization presets for maximum versatility

Cover included

dB Technologies KL 10 Technical Specifications

Frequency response [-10dB]: 55Hz - 18kHz

Max SPL: 125dB

HF: 1" CD, 1" voice coil

LF: 10", 2" voice coil

Dispersion: 90° x 60°

Crossover frequency: 2000Hz (24 dB/oct.)

Amplification: Class D (LF) + Class AB (HF)

Peak power (LF+HF): 400W

Controls: 1xVolume, 1xslide switch mic/line

Indicators: Power On/signal/limiter LED

DSP Controller: 20/56 bit

AD/DA converter: 24 bit/ 48Hz

System presets: Playback, Flat, Bass Boost, Wedge

Limiter: Peak, RMS, Thermal

Advanced DSP functions: Linear Phase FIR Filter

Input: 1x Combo (XLR/Jack)

Mic/Line: 1x XLR/TRS

Bluetooth Input: 1x Bluetooth receiver

Output: 1x XLR Male (Link/Mix)

Pole mount: 36mm

Dimensions: 310 x H521 x 292mm

Weight: 11.7kg
