Db ES-1203 System

Description

Db ES-1203 System

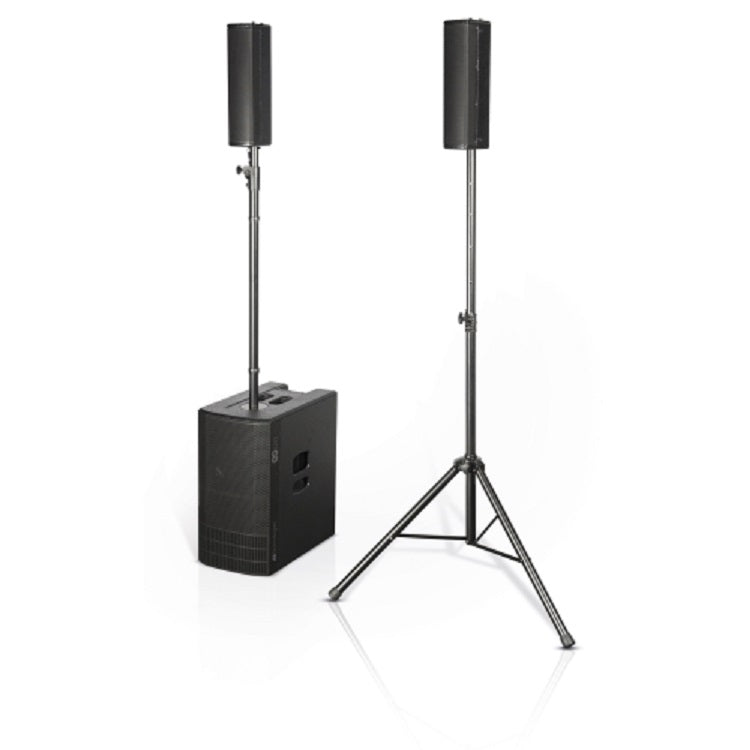

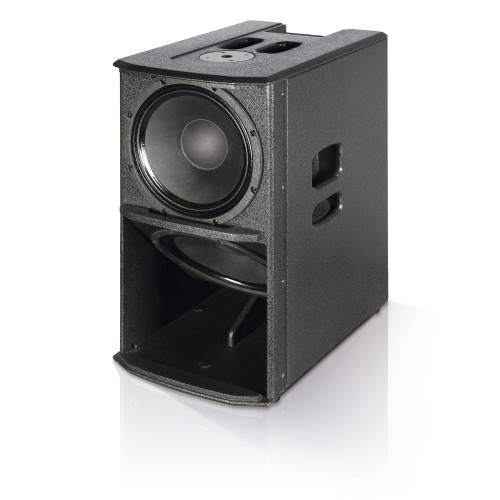

ES 1203 is a stereo system consisting of 2 passive wooden tops and an active subwoofer equipped with 2 x 12-inch cones. The subwoofer houses the latest generation Digipro G4® amplifier, with 2400W Peak power.

A powerful DSP (controlled by a dedicated user interface) manages all the functions of the onboard digital mixer, as well as the system configurations (mono, stereo or double column) and allows the choice between two different steering modes (far, near), making ES 1203 a totally customizable system adaptable to every need.

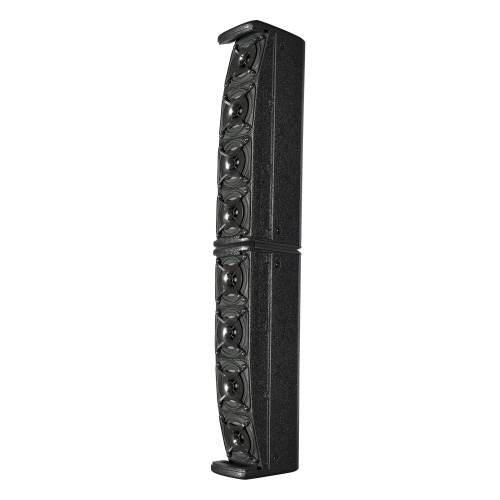

Each upper satellite is equipped with 4 x 4-inch mid-woofers, whose alignment provides asymmetrical vertical coverage.

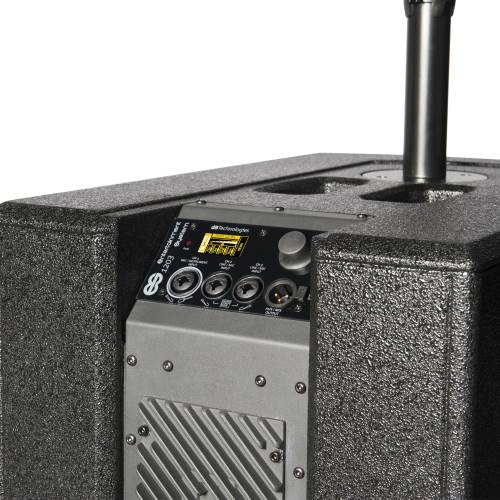

The integrated mixer of ES 1203 is a 5-channel mixer: the first channel is equipped with a balanced/unbalanced combo MIC/instrument connector with an adjustable anti-feedback filter, impedance compensation and microphone gain with 3 positions (0, +10, +20 dB). The second and third channels are MIC/LINE inputs with balanced/unbalanced combo connectors. This allows the system to manage up to 3 microphone lines at a time.

ES 1203 also has a built-in Bluetooth module for receiving audio from external portable devices and a balanced MIX/AUX output for connecting a stage monitor or a speaker. In Dual Column mode, this output acts as a source for another ES1203, making it an even more powerful stereo system.

The system can be completed with DP-ES1203, a wooden pole, which levels the overall design of the system, making it discreet and elegant for permanent installations or events that require more design.

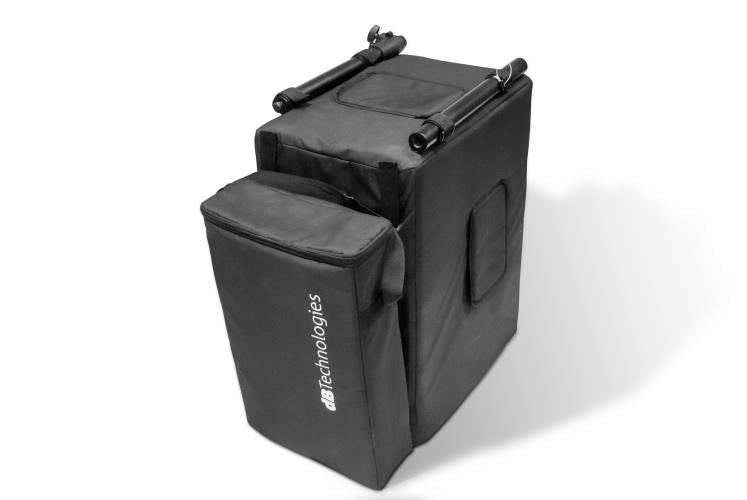

Included in the ES1203 bundle:

- Subwoofer cover

- Top module covers

- 35mm telescopic pole

- 2x 7m Speakon cables

- Power cable

Specifications

Active system: 2 x 12"/8 x 4", VC1"

Class D amplifier

3-channel mixer

Power: 2400 W peak

Frequency response: 35-20,000 Hz

Maximum SPL: 132 dB

Dispersion angle: 97° x 60°

1 microphone/instrument combo input (XLR/jack)

2 microphone/line combo inputs: XLR/jack

Bluetooth reception

1 XLR output

Wooden housing with metal handles

36 mm flange for stand mounting

Dimensions of each satellite: 110 x 460 x 160 mm

Subwoofer dimensions: 360 x 680 x 545 mm

Total weight: 32.6 kg

Includes 1 protective cover for satellites, 1 protective cover for subwoofer, 1 spacer bar
