Db B-Hype 15

Description

Db B-Hype 15

dBTechnologies leverages its long experience in active system design with a series intended even for less experienced users, while still ensuring professional-grade audio performance.

The series uses highly efficient Class D amplifiers that allow the system to achieve powerful sound pressure levels (up to 126.5 dB for the largest 15” model).

The new B-HYPE 15 is a versatile active system, equipped with a compression driver (1” voice coil) and a 15” woofer (2” voice coil). The dispersion pattern is asymmetrical on the vertical axis and diversified (in the upper and lower parts) on the horizontal axis. This results in more targeted and efficient coverage, particularly in reverberant environments. The combo input allows for great versatility of use, adapting, for example, to a dynamic microphone or a standard line input.

The pre-set BOOST equalization allows for boosting high and low frequencies. The LINK output allows connection to a second system.

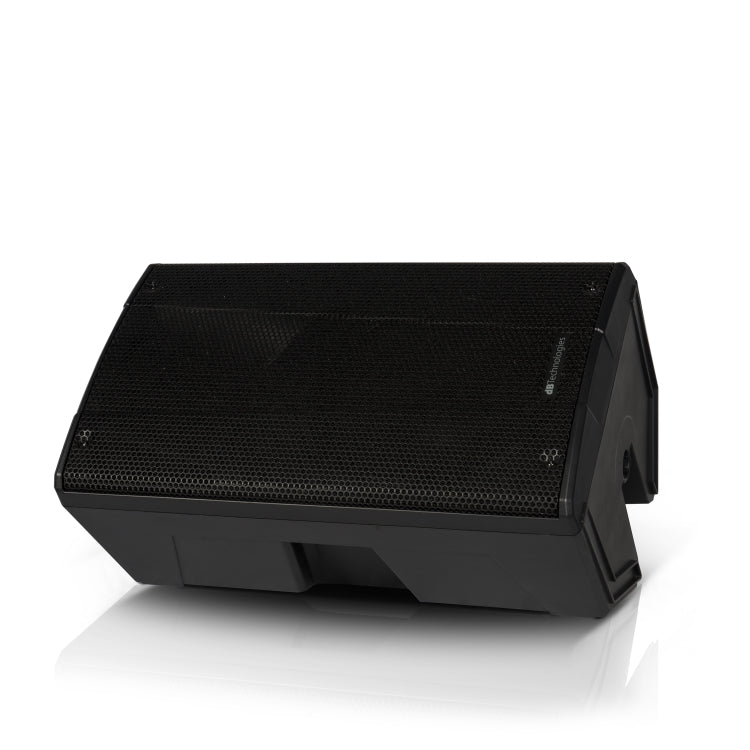

The portability of the systems is ensured by a contemporary and accurate design featuring 3 handles on all models (two on the sides and one on top) and a contained total weight ranging from 6.6 kg for the 8” model to 17.4 kg for the 15”. Furthermore, each box can be used horizontally as a monitor, allowing stable 45° placement on both sides. The systems can be used on a tripod or pole in combination with dBTechnologies subwoofers.

Specifications

Technical data

Speaker type: 2-way active speaker

Acoustic data

Usable bandwidth [-10 dB]: 51 - 20,000 Hz

Frequency response [-6 dB]: 57 - 19,700 Hz

Maximum SPL: 126.5 dB

Type: HF compression driver

HF voice coil: 1"

LF: 15"

LF voice coil: 2"

Crossover frequency: 2100 Hz (24 dB/oct.)

Horizontal dispersion: asymmetric 85° up / 120° down

Vertical dispersion: 85° (+25°/ -60°)

Amplifier

Amplifier technology: Custom Made

Amplifier class: Class D - Passive cooling (convection)

Peak power: 400 W

Processor

Controller: DSP 28/56 bit - 48 kHz

Limiter: Peak, RMS, Thermal

Controls: Volume, Audio Input Sensitivity, DSP Preset

Input Section

Main connection: VDE

Balanced signal input: 1x Combo IN (MIC/LINE)

SIGNAL output (Balanced): 1x XLR OUT (LINK)

Mechanical

Housing: Polypropylene

Grille: All Metal

Handles: 3 (2 side, 1 top)

Pole mount: 36 mm

Width: 415 mm (16.34 inches)

Height: 725 mm (28.54 inches)

Depth: 391 mm (15.39 inches)

Weight: 17.4 kg (38.36 lbs)

Vertical angle: Double wedge 45°
