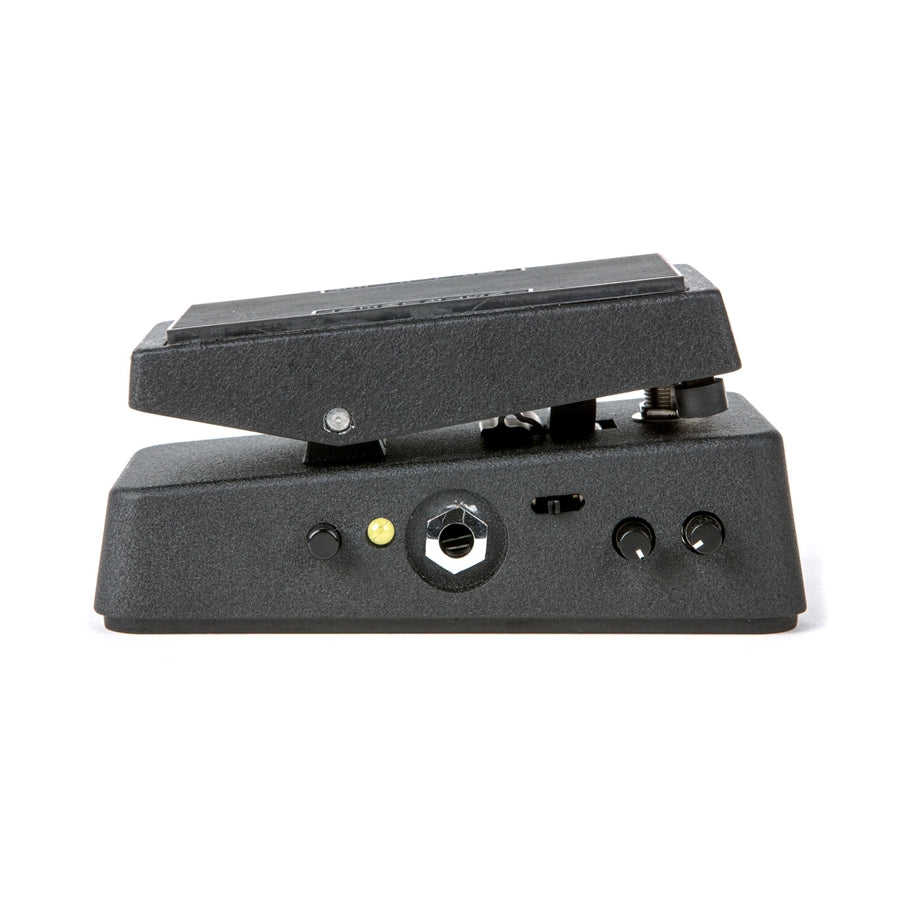

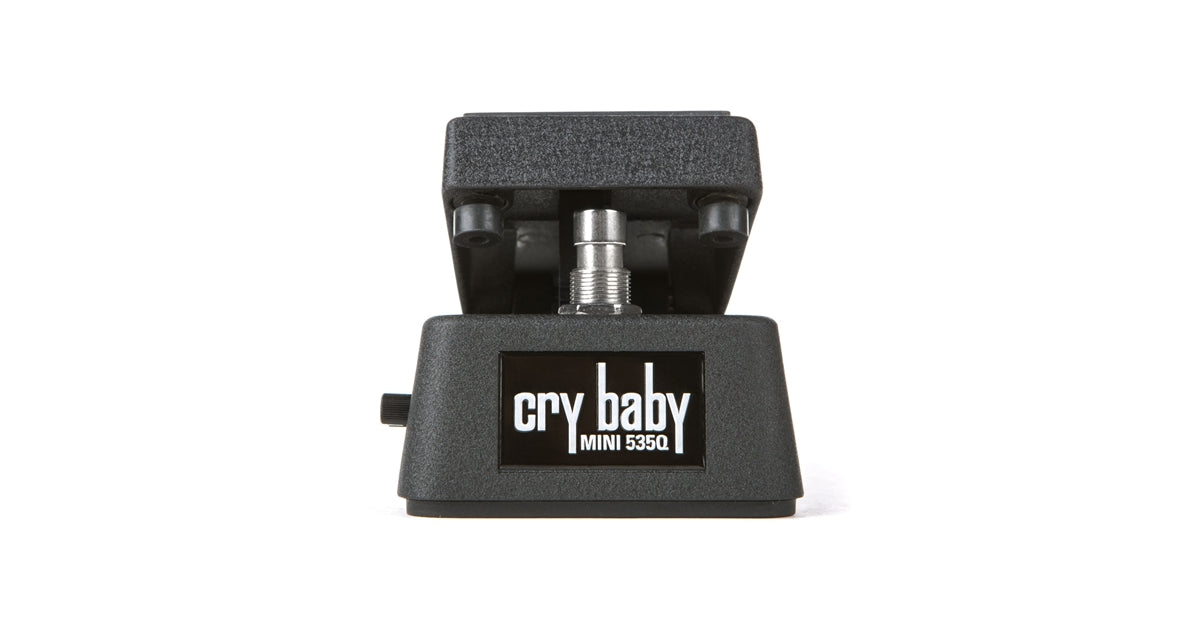

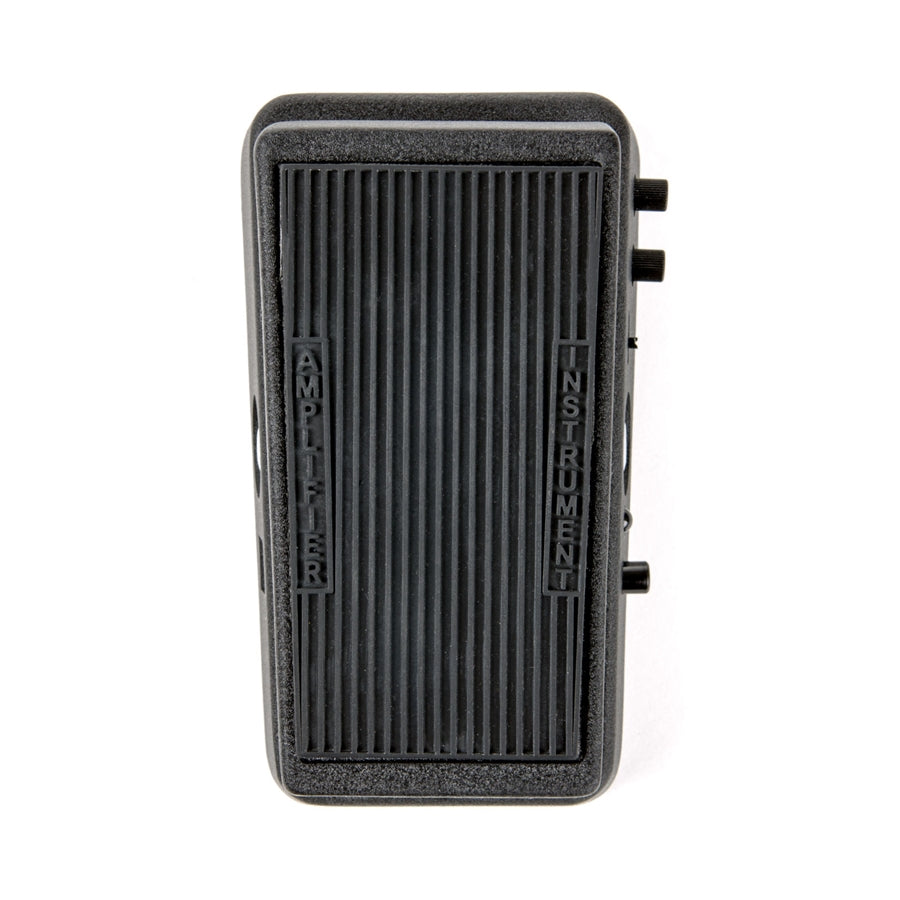

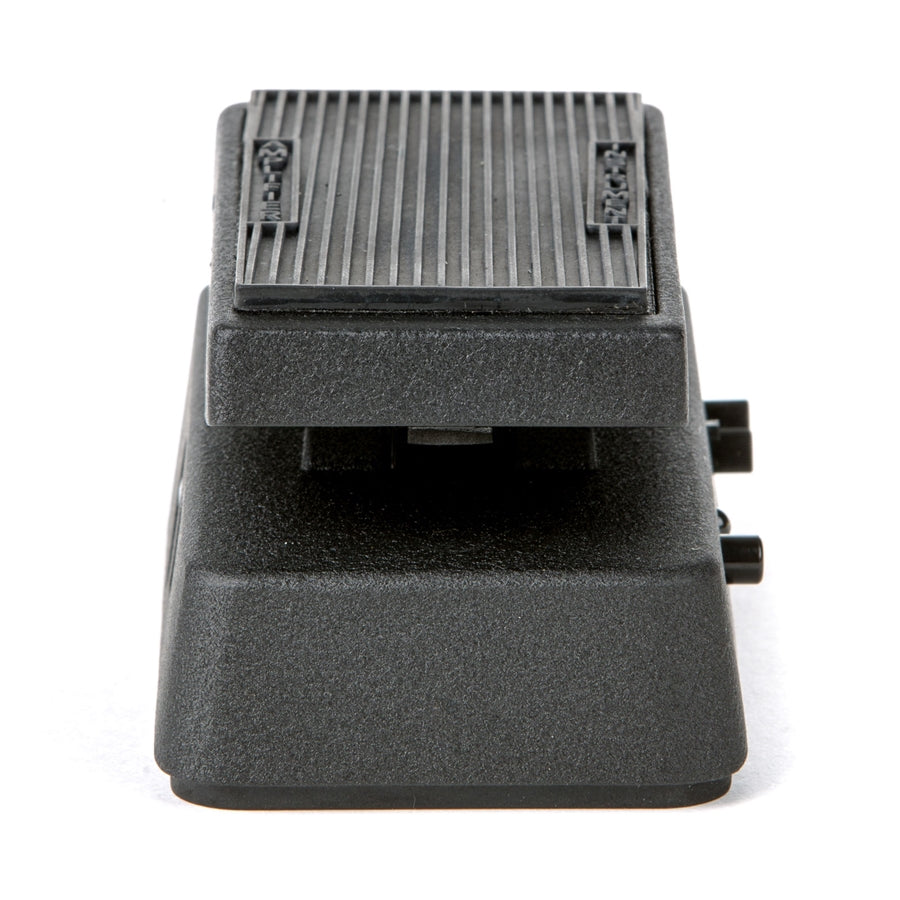

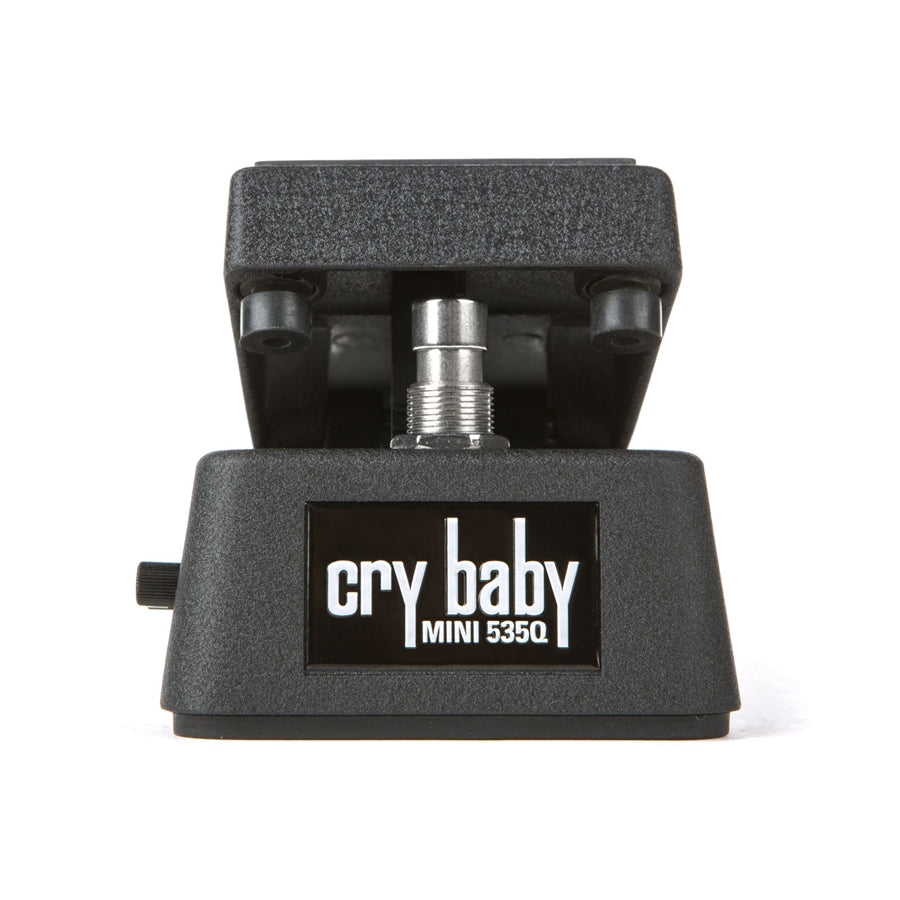

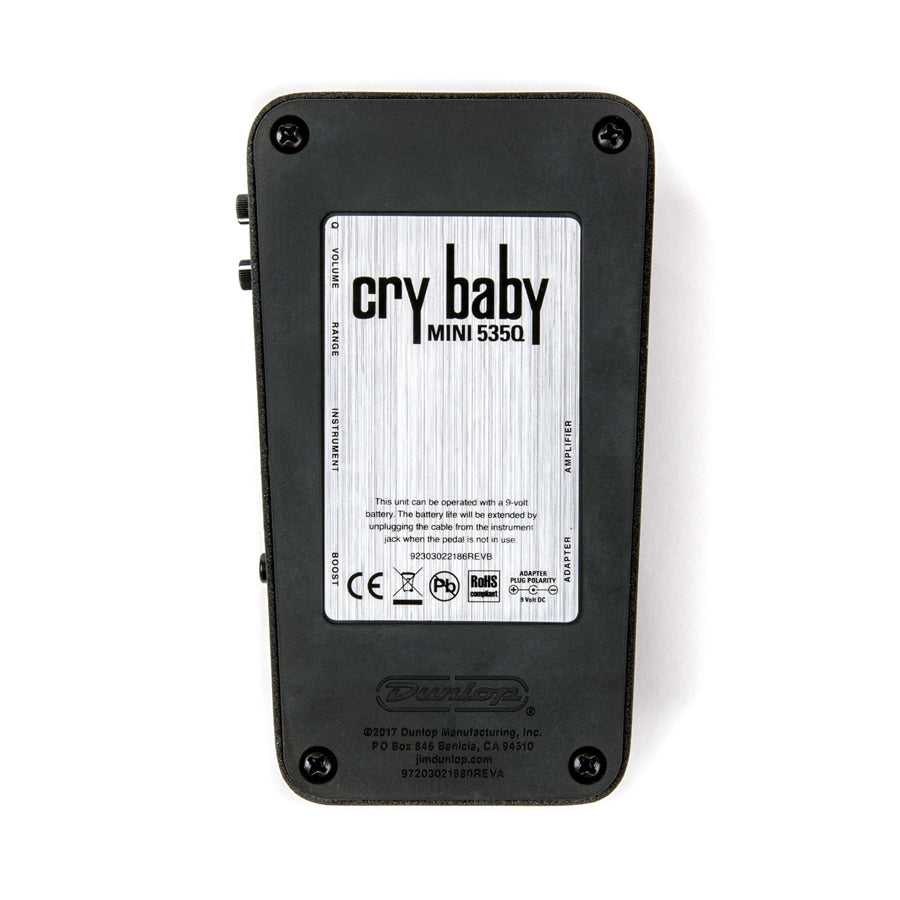

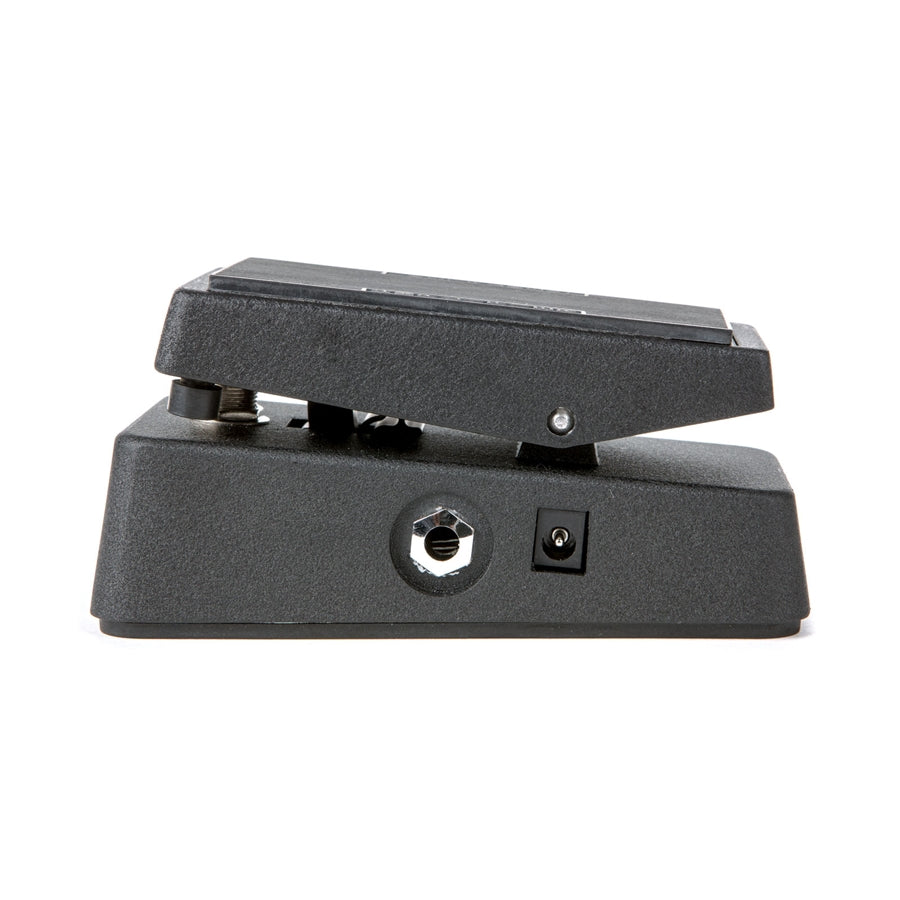

Dunlop CBM535Q Cry Baby Mini Wah

Description

<h1 style="text-align: justify;">The <strong>CBM535Q Cry Baby® Mini 535Q Wah</strong> is the <strong>Jim Dunlop</strong> <strong>wah pedal</strong> that, at half the size of a standard wah, provides a perfect balance between control and pedalboard efficiency.</h1><h2>OVERVIEW</h2><p style="text-align: justify;">The <strong>Cry Baby Mini 535Q Wah</strong> provides a perfect balance between control over your wah sound and pedalboard efficiency. Set the character of your sound with the <strong>Range Selector</strong>, which allows you to choose one of the 4 most popular frequency ranges of the 535Q Wah. With the <strong>Q control</strong>, you can set the wah's response, from a narrow bandpass that emphasizes high harmonics, to a wide bandpass that emphasizes low harmonics. If you want your sound to cut through the mix, increase the <strong>Volume</strong> control and activate the <strong>Boost</strong> switch. An LED next to the switch indicates when the Boost is active.</p><h2>POWER</h2><p style="text-align: justify;">This pedal can be powered by a 9-volt battery or an AC adapter, such as the Dunlop ECB003, the Iso-Brick or the Mini Iso-Brick (not included).</p><h2>CONTROLS</h2><p><strong>Boost:</strong> adds a quantity of gain set with the Volume control;<br><strong>Range Selector:</strong> selects the frequency range;<br><strong>Volume:</strong> sets the gain level provided by the switch-activatable boost;<br><strong>Q Control:</strong> adjusts the intensity of the wah.<br></ul><h2>HIGHLIGHTS</h2><ul style="margin-left: 17px;"><li>Reduced dimensions;</li><li>Choose from 4 frequency ranges of the 535Q;</li><li>Variable Q control to set the wah response;</li><li>Boost and Volume control to increase gain.</li></ul><h2>CRY BABY MINI 535Q WAH TECHNICAL SPECIFICATIONS</h2><p><strong>Input Impedance:</strong> 1 MOhm<br><strong>Output Impedance:</strong> 1.5 kOhm<br><strong>Signal-to-Noise Ratio heel down:</strong> 90 dBV<br><strong>Signal-to-Noise Ratio toe down:</strong> 97 dBV<br><strong>Frequency Range:</strong> <ul style="margin-left: 17px;"><li>Position 1: 270 Hz - 1300 Hz</li><li>Position 2: 320 Hz - 1650 Hz</li><li>Position 3: 360 Hz - 1840 Hz</li><li>Position 4: 420 Hz - 2100 Hz</li></ul><strong>Gain with Q control at maximum and boost deactivated:</strong> 15 dB<br><strong>Boost control range:</strong> 0.1 dB to 17 dB<br><strong>Bypass:</strong> True Hardwire<br><strong>Current Draw:</strong> 2.5 mA<br><strong>Power Supply:</strong> 9 volt DC<br></p> <iframe width="854" height="480" src="https://www.youtube.com/embed/HrgPw3Lw52k" frameborder="0" allow="autoplay; encrypted-media" allowfullscreen></iframe>
