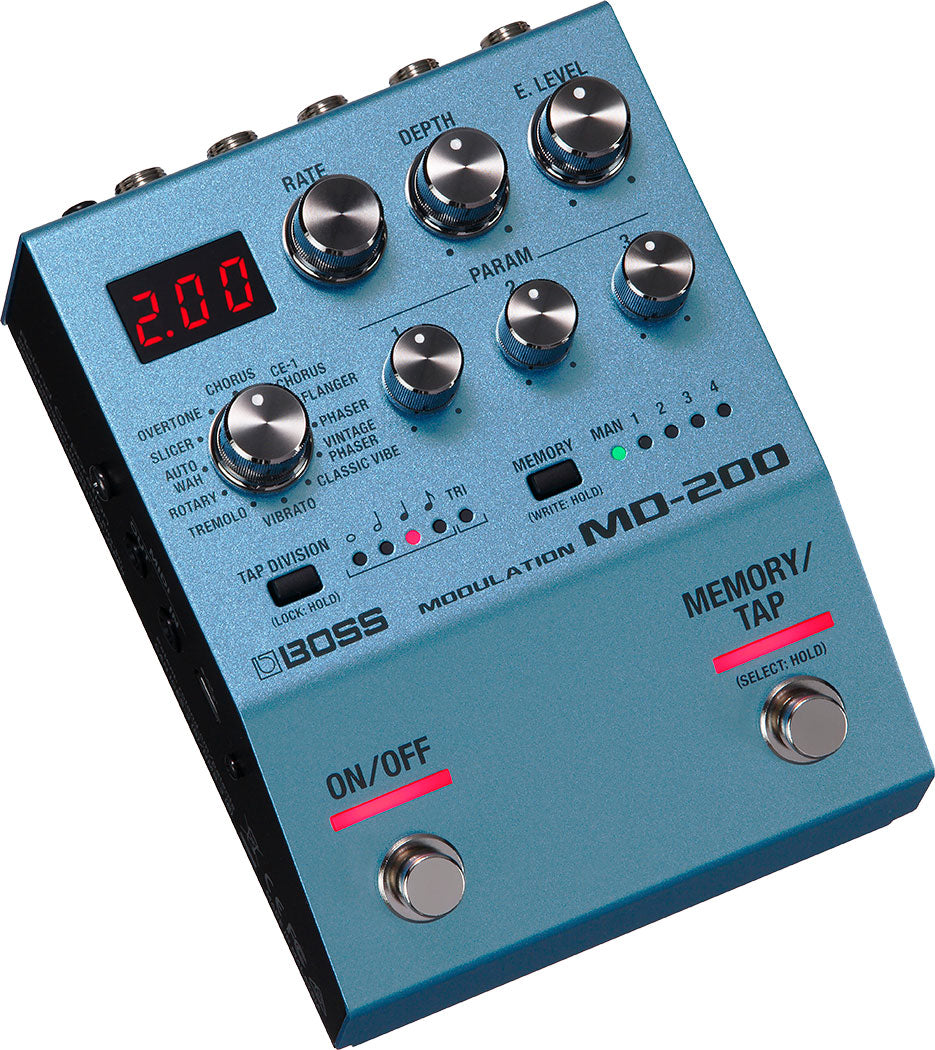

Boss Md-200 Modulation

Description

Boss Md200 Modulation

With the 200 series, BOSS introduces a new generation of pedals that combine advanced sound and versatility in a streamlined format that minimizes space consumption on your pedalboard. Intuitive controls and multi-function switches make operation simple and immediate, while internal memories allow you to save several setups that can be instantly recalled. The 200 series models offer superior sound quality, 32-bit internal processing, along with support for additional controls via external footswitches, an expression pedal, or MIDI.

Featuring algorithms derived from the flagship MD-500, the MD-200 Modulation offers absolute class effects in a small and practical pedal. Twelve different modes provide you with all the modulation effects you could need and more, and each includes personalized controls allowing for detailed sound adjustments directly from the panel. And with the powerful Insert function, it's easy to connect distortions and other pedal effects and select whether the processing is applied upstream or downstream of the other effects.

Version 1.1 Update User Memory Expansion

The free software update to Version 1.1 offers greater versatility for the BOSS 200 series, expanding the internal memory capacity for saving and recalling sounds. Now, 128 user setups are available. Setups can also be recalled directly via MIDI program change messages.

The Version 1.1 update is available in the Downloads section of each 200 series pedal.

*For optimal performance, stay updated with the current MD-200 system software

Absolute class sound with 32-bit AD/DA conversion, 32-bit floating-point processing, and 96 kHz sampling rate

Twelve versatile modes offer a wide choice of modulation types

Dedicated controls for Rate, Depth, and Level, plus three parameter knobs that change function depending on the selected mode

Insert Loop function for positioning external pedal effects before or after modulation effects

Real-time panel settings and four memories to save your favorite sounds

Access 128 user setups from the panel or via MIDI program change

Recall consecutive memories plus real-time panel settings via footswitch or dedicated panel button.

The Global setting optimizes flanger, phaser, and auto wah effects for guitar or bass

Panel Lock function disables controls to prevent unwanted changes

Customizable multi-function footswitches for tap tempo, memory selection, and more

Support for expanded control via external footswitches, expression pedal, or MIDI

Full MIDI input and output via mini TRS jacks (BMIDI-5-35 adapter cable available separately)

Micro USB port for firmware updates

Operates with a PSA series power supply or three AA batteries

Specifications

SPECIFICATIONSSampling Frequency96kHzAD/DA Conversion32 bitProcessing32-bit floating pointModes12 modes

CHORUS, CE-1 CHORUS, FLANGER, PHASER, VINTAGE PHASER, CLASSIC VIBE, VIBRATO, TREMOLO, ROTARY, AUTO WAH, SLICER, OVERTONEMemory127 + ManualNominal Input LevelINPUT A/MONO, B: -10 dBuMaximum Input LevelINPUT A/MONO, B: +7 dBuInput ImpedanceINPUT A/MONO, B: 2 M ohmsNominal Output LevelOUTPUT A/MONO, B: -10 dBuMaximum Output LevelOUTPUT A/MONO, B: +7 dBuOutput ImpedanceOUTPUT A/MONO, B: 1 kOhmRecommended Load ImpedanceOUTPUT A/MONO, B: 10 k ohms or greaterBypassBuffered bypassControlsON/OFF switch, MEMORY/TAP switch

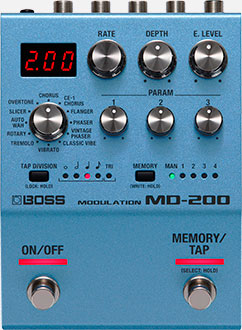

MODE knob, RATE knob, DEPTH knob, E. LEVEL knob, PARAM 1 knob, PARAM 2 knob, PARAM 3 knob

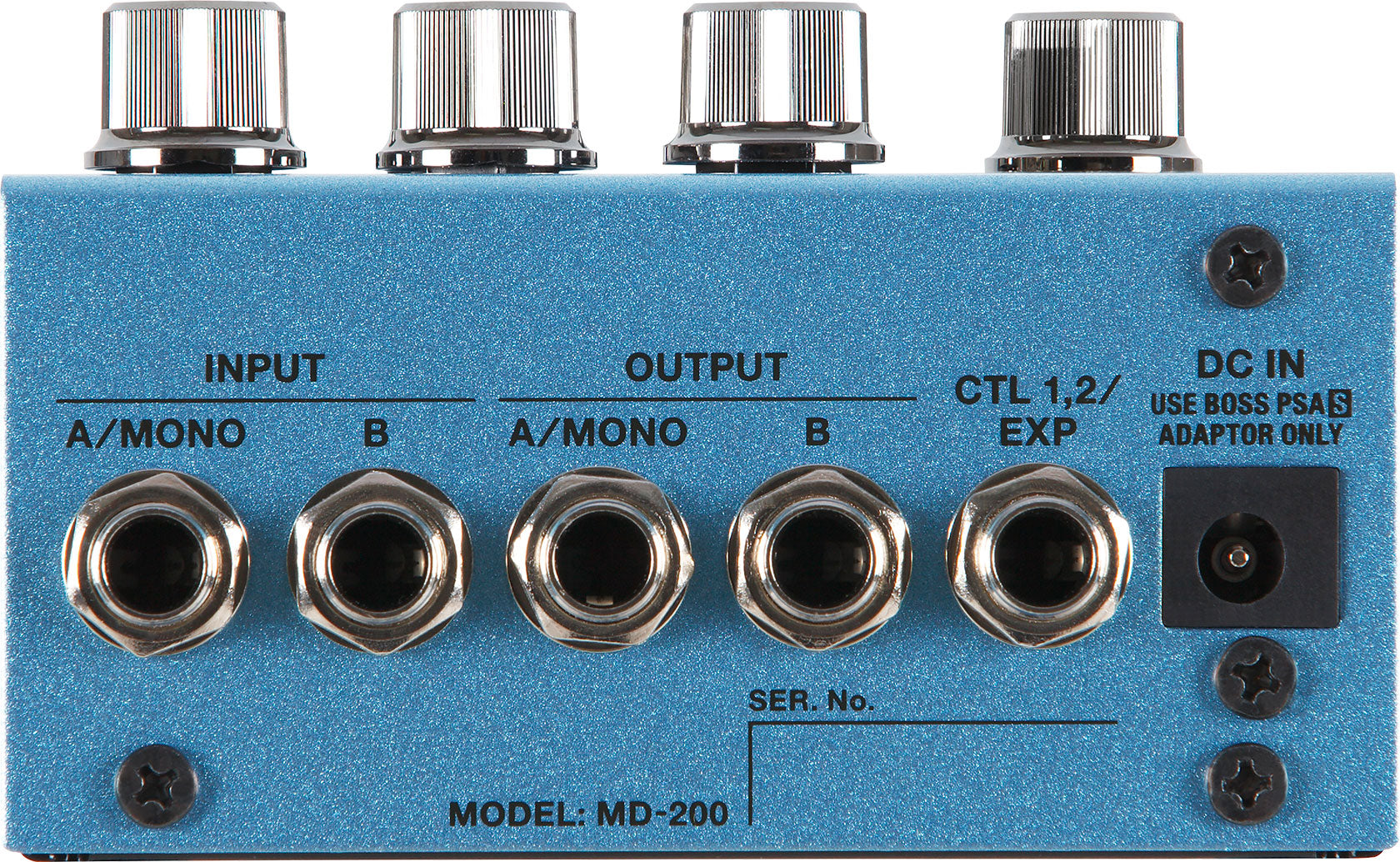

TAP DIVISION button, MEMORY buttonDisplay7 segments, 3 characters (LED)IndicatorTAP DIVISION indicator, MEMORY indicators (MAN, 1--4).ConnectorsINPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type

CTL 1, 2/EXP jack: 1/4-inch TRS phone type

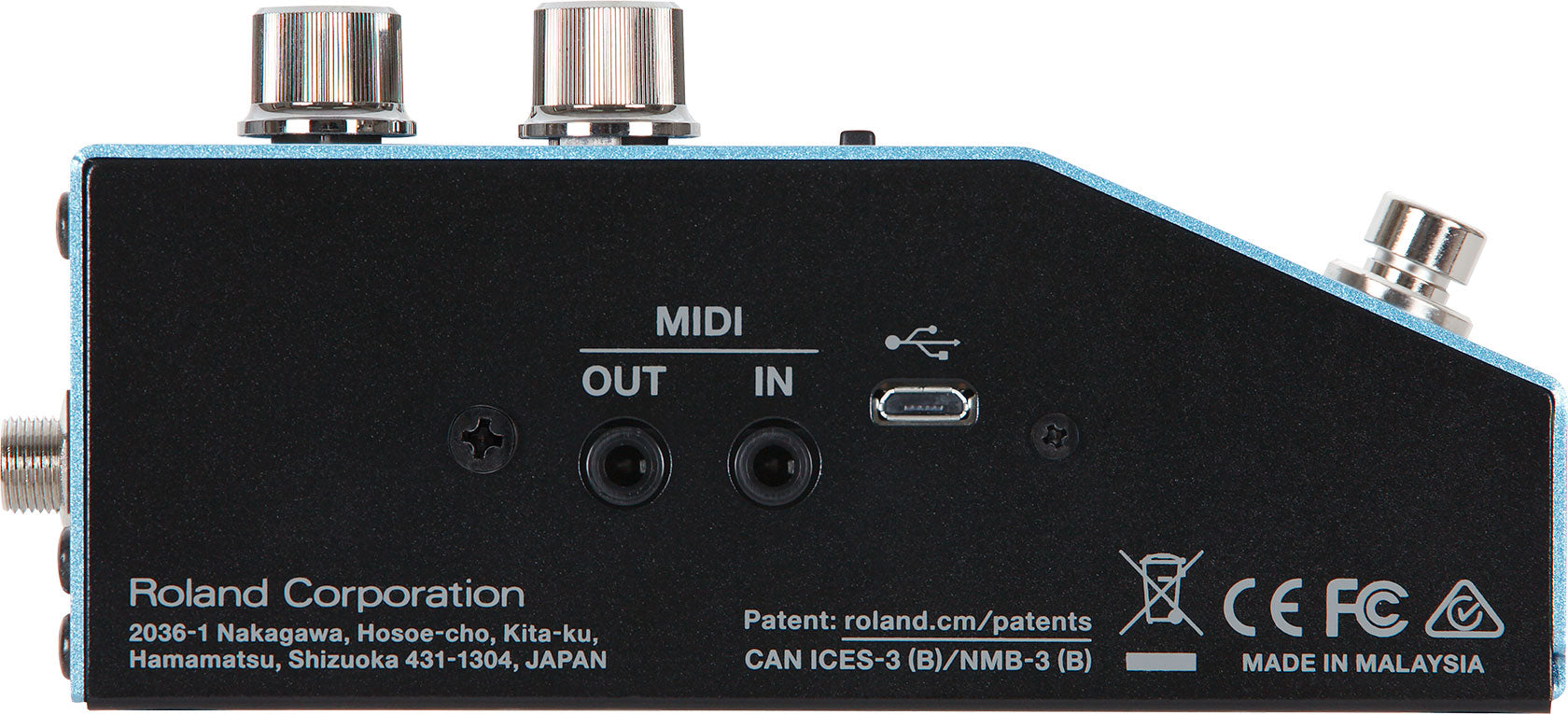

MIDI (IN, OUT) jacks: Stereo miniature phone type

DC IN jack

USB Port: USB micro B type (program update only)Power SupplyAlkaline battery (AA, LR6) x 3, AC adapter (sold separately)Current Draw225 mACurrent DrawExpected Battery Life Under Continuous UseAlkaline: Approx. 4 hours

* These figures vary depending on the actual conditions of use.Accessories"SAFETY INSTRUCTIONS" Leaflet

"To get the Owner's Manual" Leaflet

Alkaline battery (AA, LR6) x 3

Rubber foot x 4Options (sold separately)AC adapter: PSA-S series

Footswitch: FS-5U

Dual Footswitch: FS-6, FS-7

Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5

MIDI/TRS connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535DIMENSIONS AND WEIGHTWidth101 mm

4 inchesDepth138 mm

5-7/16 inchesHeight63 mm

2-1/2 inchesHeight (including rubber foot)65 mm

2-9/16 inchesWeight610 g

1 lb 6 ozWeight (including battery)680 g

1 lb 8 oz* 0 dBu = 0.775 Vrms*Specifications are subject to change without notice.

Modulation effects pedal with 12 classic modes

4 memory slots allow you to instantly save and recall your custom patches

Stereo I/O with full support for stereo signal paths, multi-amp setups, and keyboards

Extensive support for external controllers including expression pedal and MIDI I/O (MIDI cables not included)

Panel Lock function allows you to lock controls to prevent unwanted changes

High-quality 32-bit/96 kHz digital conversion for pristine quality even with extreme setups

Analog dry-through design that leaves the core sound unaltered

Buffered bypass for use with long cables

Micro USB port for future feature expansions via firmware updates

Dimensions: 63 x 102 x 138mm

Weight: 624g

N.B. Power supply NOT included
