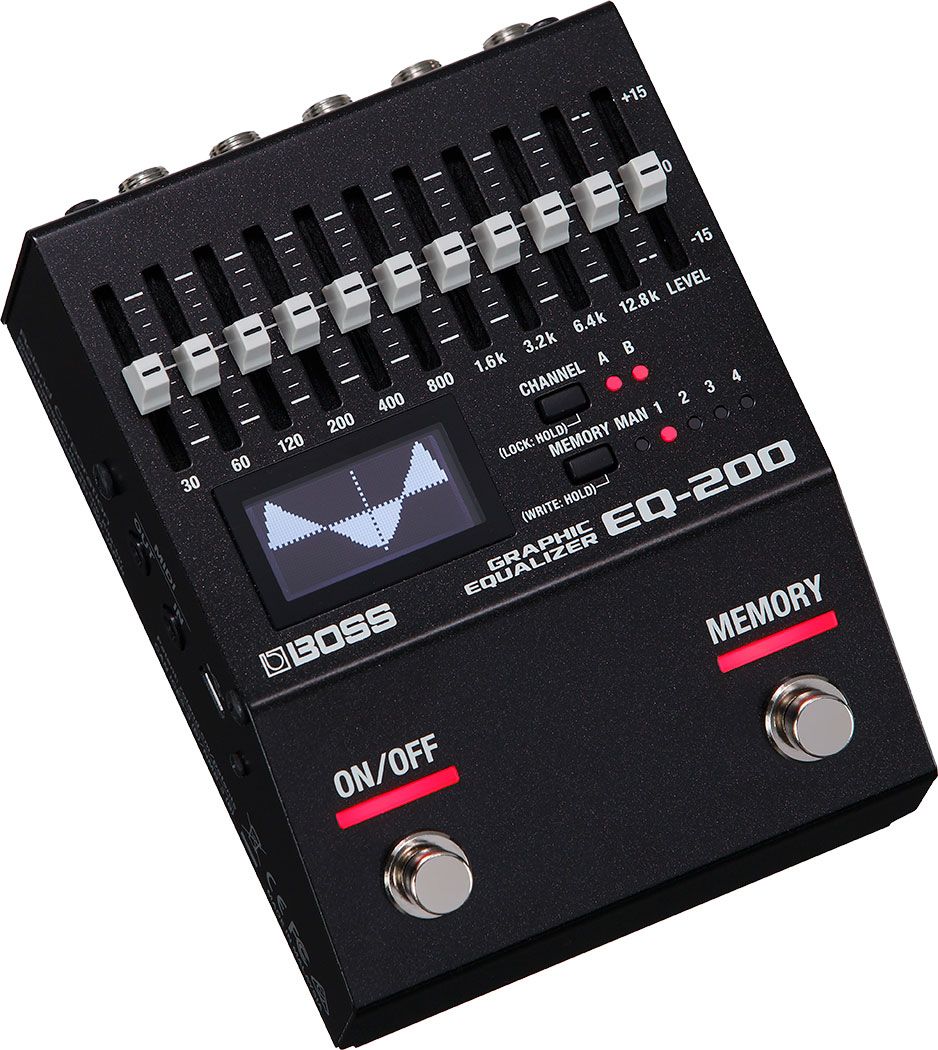

Boss EQ-200 Graphic Equalizer

Description

BOSS EQ200 GRAPHIC EQUALIZER

The EQ-200 is the most flexible compact equalizer ever created for guitar and bass. It features two wide-ranging 10-band EQ channels, along with an onboard graphic display that shows you the current EQ curve at a glance. Selectable signal flow structures configure the channels for stereo, parallel, or series operation, and you can even patch in external pedals for tone shaping upstream or downstream of the EQ. And to optimize the EQ-200’s performance for different instruments, the center frequency of all 10 bands can be set to three different types.

Class-leading sound with 32-bit AD/DA, 32-bit floating-point processing, and 96 kHz sampling rate

Dual 10-band EQs that can be used in stereo, parallel, or series

Insert function for processing external effects pre and/or post EQ

Three different range settings for frequency bands: 30 Hz to 12.8 kHz, 32 Hz to 16 kHz, and 28 Hz to 14 kHz

15 dB of boost/cut on each band, plus overall level control on each channel

Stereo link function for operating both EQ channels together

Intuitive interface with sliders and graphic EQ display

Access 128 user setups from the panel or via MIDI program change

Recall consecutive memories plus real-time panel settings via footswitch or dedicated panel button.

Real-time panel settings and four memories to save your favorite sounds

Panel Lock function disables controls to prevent unwanted changes

Two onboard footswitches with customizable assignments

Support for expanded control via external footswitches, expression pedal, or MIDI

Full MIDI in and out via mini TRS jacks (BMIDI-5-35 adapter cable sold separately)

Micro USB port for firmware updates

Runs on a PSA-series adapter or three AA batteries

Dual 10-Band Equalizer with Adjustable Frequency

Thanks to its refined design, 32-bit/96 kHz sound, and very low noise floor, the EQ-200 offers precise tone control with superior audio quality. Up to 15 dB of cut or boost is available on each band, and each channel features a level slider for balancing with bypass sound or for boosting for lead solos when needed. The center frequency configuration of the bands can also be set to three types, allowing you to optimize the EQ-200’s equalization for all types of instruments, from electric and acoustic guitars, to bass, keyboards, and beyond.

Flexible Signal Flow with Pre/Post FX Insert

The EQ-200’s variable signal flow structure offers a unique level of versatility for shaping sounds. Channels A and B can be linked together or used independently, and you can also insert an external pedal (or chain of pedals) for pre-EQ and/or post-EQ processing. When used with overdrive and distortion pedals, you have an exceptional level of power in creating tone for rhythm and lead parts. The series mode positions the two equalizers one after the other, allowing you to create the basic sound with the first, and set the second for lead parts or further modifications.

Intuitive Interface and Visual EQ Display

Using the EQ-200 is fast, simple, and intuitive. Sliders provide direct access to the 10 EQ bands and the overall channel level, while the informative display shows you the current EQ curve. The two channels are selected via a dedicated panel button, and navigation of additional parameters is quick and efficient. And by using the Panel Lock function, you can disable the controls to prevent accidental changes while adjusting other pedals on your pedalboard.

Save and Recall Your Favorite Settings

The EQ-200 offers 127 user memories plus real-time panel adjustment, giving you a total of 128 configurations to choose from. Any range or consecutive memories and panel settings can be assigned for sequential access from a footswitch. It is also possible to limit the range of the sequence or assign memories directly for even faster recall. And if you’re looking for even more control, setups can be recalled directly via program change messages from an external MIDI device.

Accurate Real-Time Control

By default, the EQ-200’s footswitches control EQ bypass and memory selection, but you can reassign them to activate and deactivate channels, select specific memories, and more. Control can also be effected via external footswitches, which are also freely assignable. Or, you can connect an expression pedal to control channel A or B levels, or even the overall output level (a handy replacement for a volume pedal). You also have MIDI input and output via mini TRS jacks, allowing you to control various functions via external MIDI controllers and link multiple 200 series pedals to simultaneously select memories on different units.

Specifications

Sampling Frequency96 kHzAD/DA Conversion32 bitsProcessing32-bit floating pointMemory4 + ManualNominal Input LevelINPUT A/MONO, B: -10 dBuMaximum Input LevelINPUT A/MONO, B: +7 dBuInput ImpedanceINPUT A/MONO, B: 2 M ohmNominal Output LevelOUTPUT A/MONO, B: -10 dBuMaximum Output LevelOUTPUT A/MONO, B: +7 dBuOutput ImpedanceOUTPUT A/MONO, B: 1 k ohmsRecommended Load ImpedanceOUTPUT A/MONO, B: 10 k ohms or greaterBypassBuffered bypassControlsON/OFF switch, MEMORY switch

30--12.8 k sliders, LEVEL slider

A/B button, MEMORY buttonDisplayGraphic LCD (64 x 32 dots, backlit LCD)IndicatorA/B indicator, MEMORY (MAN, 1--4) indicatorsConnectorsINPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type

CTL 1, 2/EXP jack: 1/4-inch TRS phone type

MIDI (IN, OUT) jacks: Stereo miniature phone type

DC IN jack

USB port: USB micro-B type (program update only)Power SupplyAlkaline battery (AA, LR6) x 3, AC adaptor (sold separately)Current Draw170 mAExpected Battery Life Under Continuous UseAlkaline: Approx. 7 Hours

* These figures will vary depending on the actual conditions of use.AccessoriesOwner's Manual

Leaflet "USING THE UNIT SAFELY"

Alkaline battery (AA, LR6) x 3

Rubber foot x 4Options (sold separately)AC adaptor: PSA-S series

Footswitch: FS-5U

Dual footswitch: FS-6, FS-7

Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5

TRS/MIDI cable: BMIDI-5-35SIZE AND WEIGHTWidth101 mm

4 inchesDepth138 mm

5-7/16 inchesHeight60 mm

2-3/8 inchesHeight (including rubber foot)62 mm

2-1/2 inchesWeight630 g

1 lb 7 ozWeight (including battery)700 g

1 lb 9 oz
