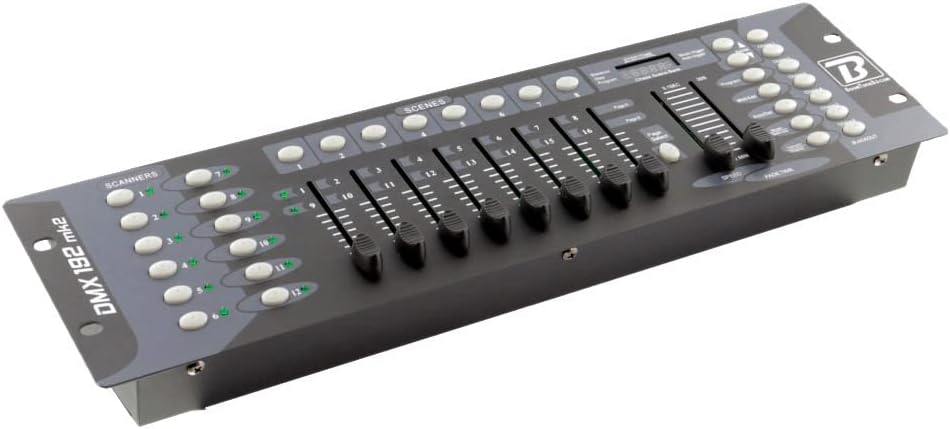

BoomTone Dj Dmx 192 MK2 192 Channels

Description

BoomTone Dj Dmx 192 MK2 192 Channels

192-channel DMX console for complete control of your lighting setup. Each of the 12 fixtures on this DMX / MIDI controller has 16 DMX channels, for a total of 192 channels, more than enough for demanding light shows and fog machines. You also have 30 memory banks for a total of 240 programmable scenes, 6 programmable sequences, and an assignable joystick for XY control of motorized moving head projectors. In addition, 8 control faders with 4 channel banks for precise control over the value of each DMX channel.

Specifications

DMX controller for lighting effects

Total of 192 channels

Controls 12 fixtures and up to 16 channels for each

Configurable channels for each fixture

23 banks of 8 programmable scenes

8 faders for manual channel control

Programmable speed and Fade In/Fade Out time

Reversible DMX channels, allowing them to react opposite to others

240 scenes and 6 chase sequences

Black-Out knob

Power supply: 9V DC

300mA

Power connector Adapter included

Power consumption: 10W

Patch Mode: Each fixture allows channels to be freely assigned

LED display

Output: Standard DMX-512

Output connectors: XLR F 3-pin

CE and RoHS compliance

IP protection rating: IP20

Dimensions: 485 x 135 x 65mm

Weight: 2.3kg
