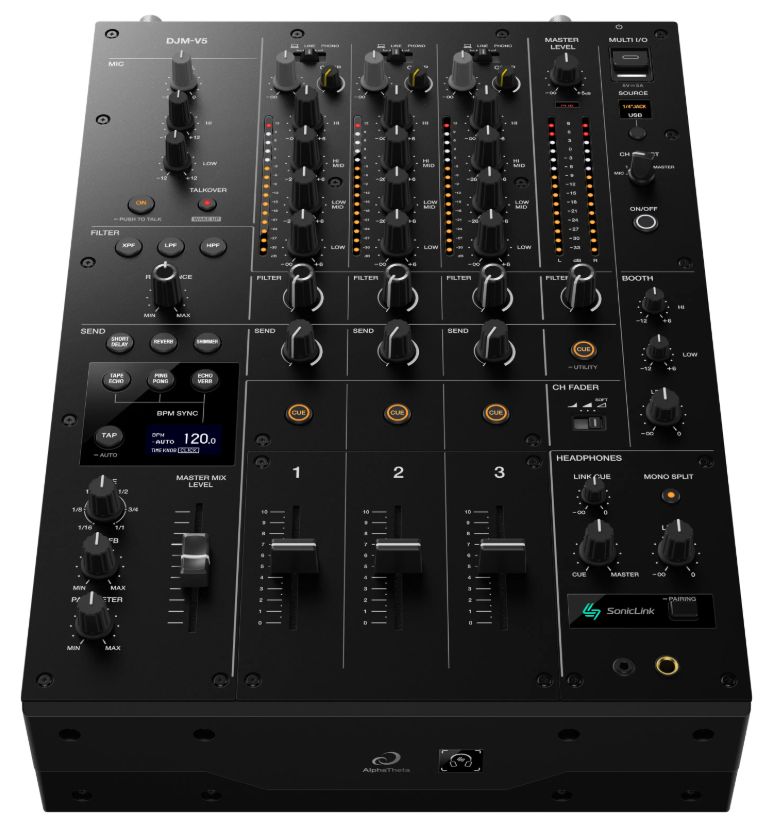

Alpha Theta DJM-V5 Mixer

Description

Alpha Theta DJM-V5 Mixer

4-band EQ for precision control

The 4-band EQ on each channel – inherited from the DJM-V10 – allows detailed frequency control to shape the sound as you wish.

DJM-V5４BAND EQ

60mm long-throw faders for smooth and natural mixing

With the 60mm long-throw fader on each channel, derived from the DJM-V10-LF, you can precisely control the combination of overlapping multiple sounds. The newly designed Soft Mix Curve gently reduces high frequencies when you start raising the fader while mixing the next track, resulting in seamless and more natural transitions.

60mm Fader

6 types of Send FX for more expressiveness

Choose from 6 Send FX – Short Delay, Reverb, Shimmer, Tape Echo, PingPong, and Echo-Verb – to apply intuitively, thanks to the dedicated Send knob on each channel. The Time knob adapts to each effect, combining BPM-synced operation with continuous time adjustment, for precise control of effects.

SEND FX

3 types of filter

In addition to low-pass and high-pass filters, the DJM-V5 features the new cross-pass filter. By preserving low-frequency energy and shaping mid and high frequencies, it brings out musical phrases without affecting the groove.

CROSS PASS FILTER

SonicLink Support

With the integrated SonicLink transmitter, the DJM-V5 supports ultra-low latency wireless monitoring. Simple pairing options – with a button press or NFC touch pairing to compatible equipment – allow for a clean, cable-free monitoring environment where audio and control remain seamlessly connected.

Specifications

MIDI Control

Fully assignable MIDI controls

DVS Control

rekordbox, Serato DJ Pro

Accessories

Power cable

Quick Start Guide

Precautions for use

Warranty (for some countries)

Specifications

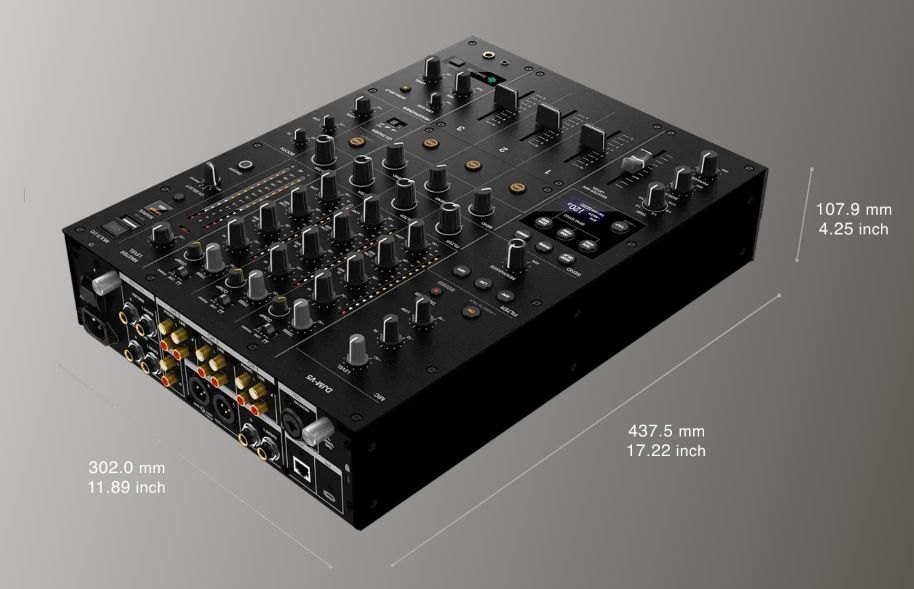

Maximum external dimensions (W x D x H)

302.0 × 437.5 × 107.9 mm

Main unit weight

8.0 kg

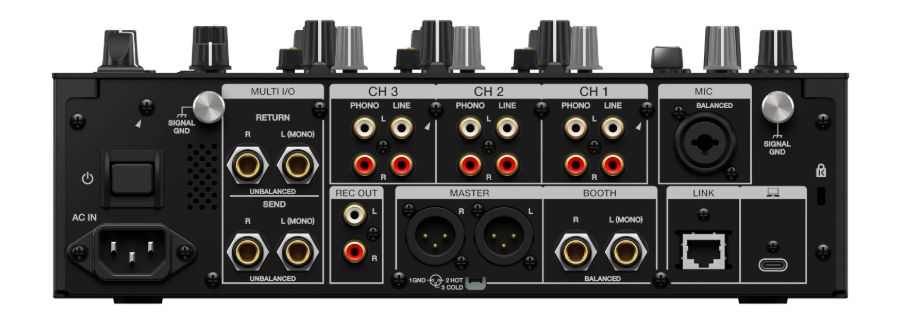

Input/Output Terminals

Inputs

PHONO x 3 (RCA)

LINE x 3 (RCA)

MIC x 1 (XLR and 1/4” TRS jack)

Outputs

MASTER x 1 (XLR)

BOOTH x 1 (1/4” TRS jack)

REC OUT x 1 (RCA)

PHONO x 2 (1/4″ / 3.5 mm)

SEND/RETURN

SEND × 1 (1/4” TS jack)

RETURN × 1 (1/4” TS jack)

LAN

LAN × 1

USB

USB Type-C × 2

(MULTI I/O × 1, PC/Mac × 1)

Audio

Sampling rate

96 kHz

A/D Converter

32 bit

D/A Converter

32 bit

S/N Ratio

LINE 105 dB / PHONO 88 dB / MIC 79 dB

EQ

4 Band
