Description

The Fishman AFX Pocket Blender Mini is an acoustic guitar blender pedal with an integrated D.I. that allows you to manage the signal with a Y-splitter output and switch from signal A to signal B with adjustable levels.

OVERVIEW OF THE FISHMAN AFX POCKET BLENDER MINI

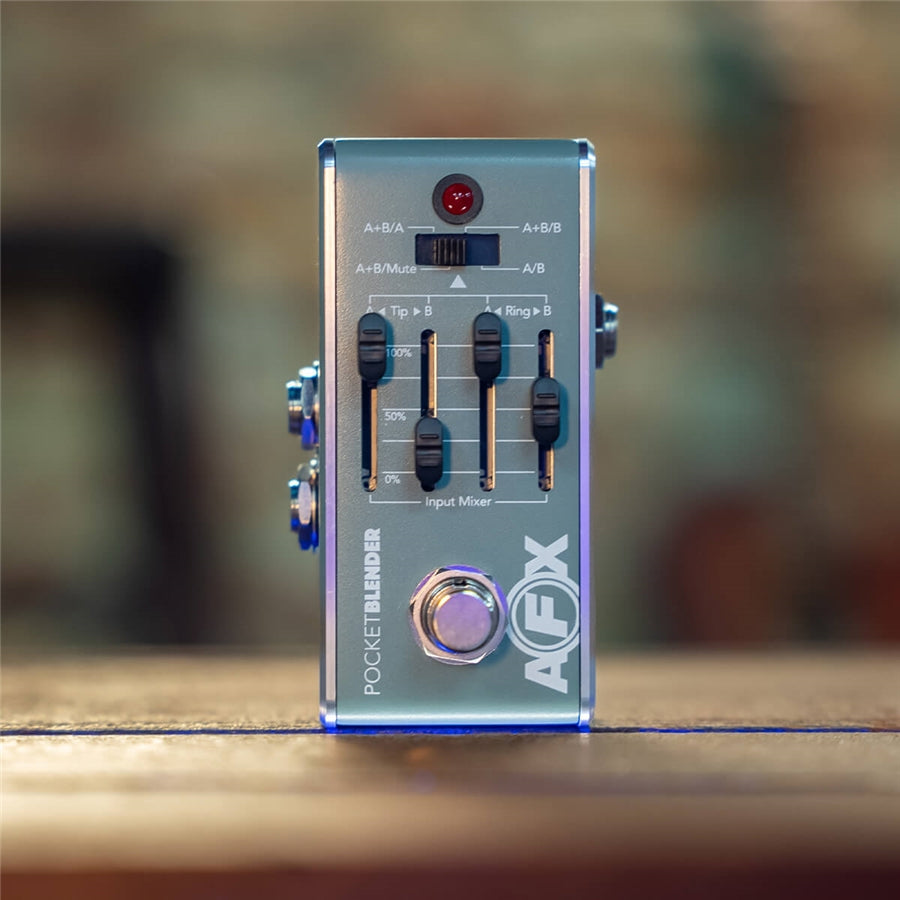

Designed specifically for acoustic guitars, Fishman AFX mini acoustic pedals allow you to explore new textures, rhythms, and sound spaces without sacrificing your tone. Whether you are a beginner or an experienced musician, experience the acoustic-centric design of the Fishman AFX Mini pedals and unlock the full potential of your acoustic sound. An A/B pedal with adjustable level. An integrated DI output with ground-lift. A boost pedal. A Y-splitter output. A two-channel mixer. The AFX Pocket Blender is the ultimate A/B/Y pedal that combines four essential tools: an input mixer that allows you to continuously adjust the level of audio sources connected to the TRS input, a D.I. output equipped with Fishman's balanced line driver circuit that can be used for sending to a PA system or home amplifier, an ABY output for splitting a signal or connecting to one or two stage amplifiers, and an A/B mode switch that determines the overall behavior when the footswitch is pressed. Without even touching the A/B functionalities, it's a two-channel mini-mixer that allows you to connect two audio sources and blend them together. This is perfect for dual-source systems like Fishman soundhole pickups that feature a microphone and a pickup. Create your instant mixer by setting an "A mix" and a "B mix" where pressing the footswitch alternates between one mix and the other. You could mix the built-in pickup (50%) with the built-in microphone (50%) on mix A. Then on mix B, which you use for solos, you could increase the pickup to 75% while leaving the microphone at 50%. All with a single press of the footswitch. And it's not just an A/B pedal with a mixer, it's the heart of Fishman's exclusive AFX Dual Path ecosystem. Using common TRS audio cables, you assign effects to the tip or ring signal paths and essentially switch between two "scenes," each with mix levels that you control. The Fishman AFX Minis are steeped in almost 5 decades of acoustic-centric design experience. We have helped millions of acoustic musicians achieve incredible sound with ready-to-use effects and these pedals are no different: just plug them in to create new sound textures without losing the core sound of your instrument. We care about preserving the tone of your instrument. Electric guitar effects are designed to alter electric tone, and when used on acoustic instruments, they tend to muddy the sound. AFX Mini effects are optimized to match the resonances of amplified acoustic guitar, so you don't get unexpected results when playing at higher volumes. AFX acoustic effects are blended in parallel with the direct sound, meaning they are added along with the tone, not over it. This allows you to add amazing texture, rhythm, and spaciousness without unnecessarily coloring or altering the sound of your precious instrument.

FEATURES OF THE FISHMAN AFX POCKET BLENDER MINI


• Balanced D.I. Output with Ground Lift

• Innovative dual-path routing

• Super compact design to fit any pedalboard

• 9V external power supply required (power supply not included)

TECHNICAL SPECIFICATIONS OF THE FISHMAN AFX POCKET BLENDER MINI

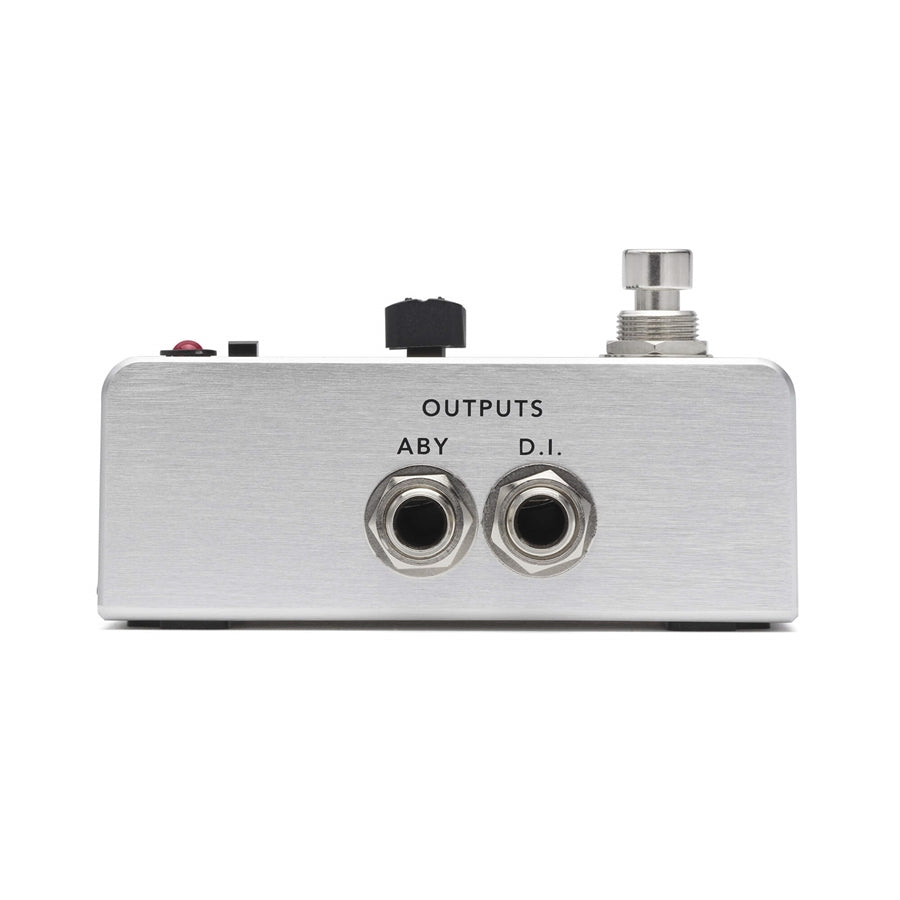

AUDIO I/O: 1/4" TRS input and outputs, 1/4" balanced DI output with ground lift
DSP: N/A (all analog)
Dimensions: 1.9" W x 3.8" D x 1.92" H (49mm W x 97mm D x 49mm H)
Material: durable aluminum chassis
Current Draw: 53mA, typical

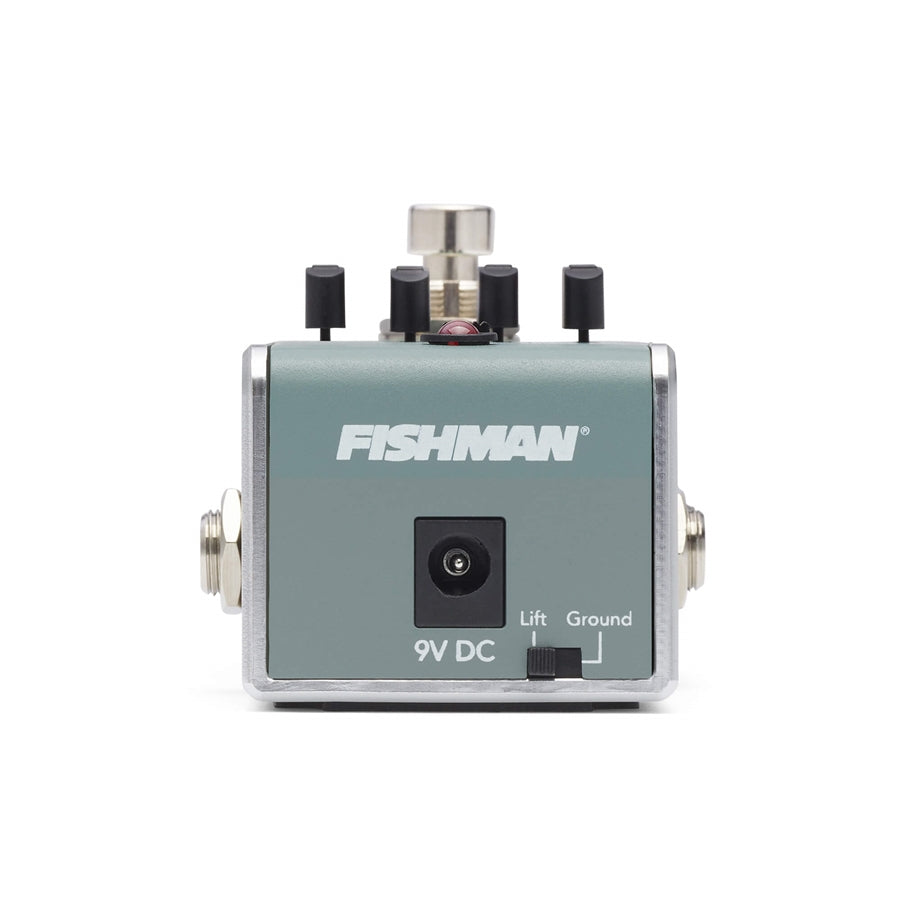

Power: 910-R AC Adapter (sold separately) or suitable filtered and regulated 5.5mm OD, 2.1mm ID Barrel Connector, Center = negative
Analog Signal: input impedance (tip): 10 MOhm | Input impedance (ring): 10 MOhm | Output impedance (ABY, tip): 1 kOhm | Output impedance (ABY, ring): 1 kOhm | Output impedance (DI, tip-to-ring): 400 Ohm differential
Fishman model: PRO-AFX-DI2
