Description

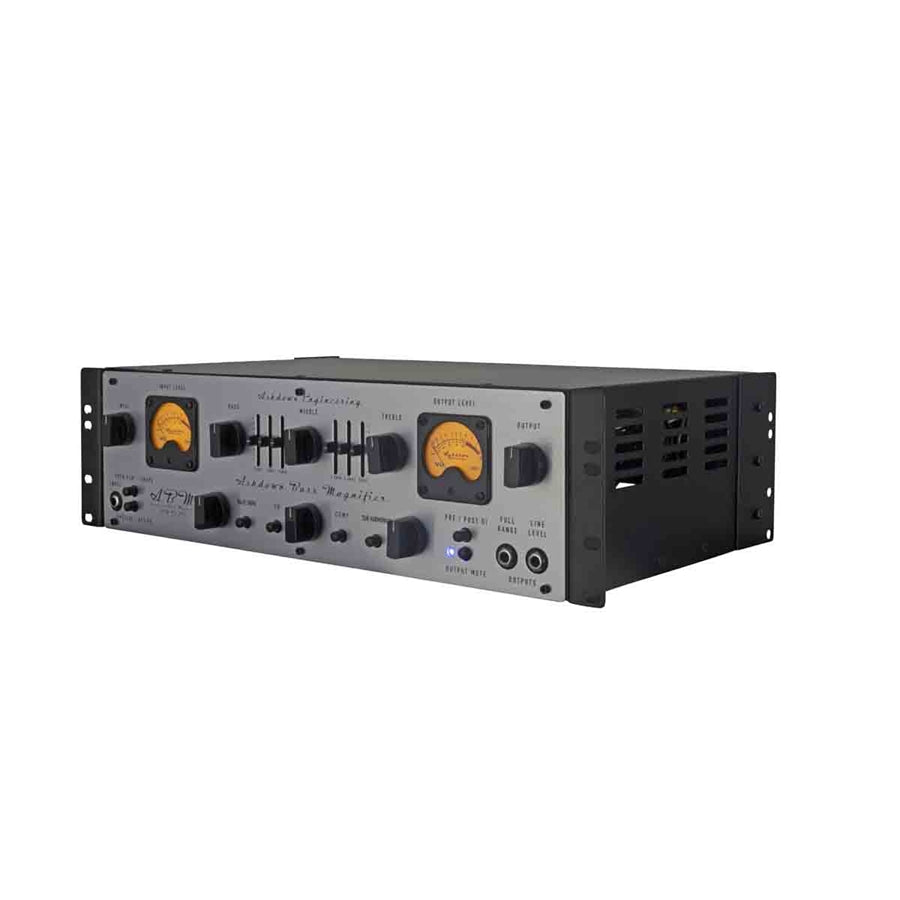

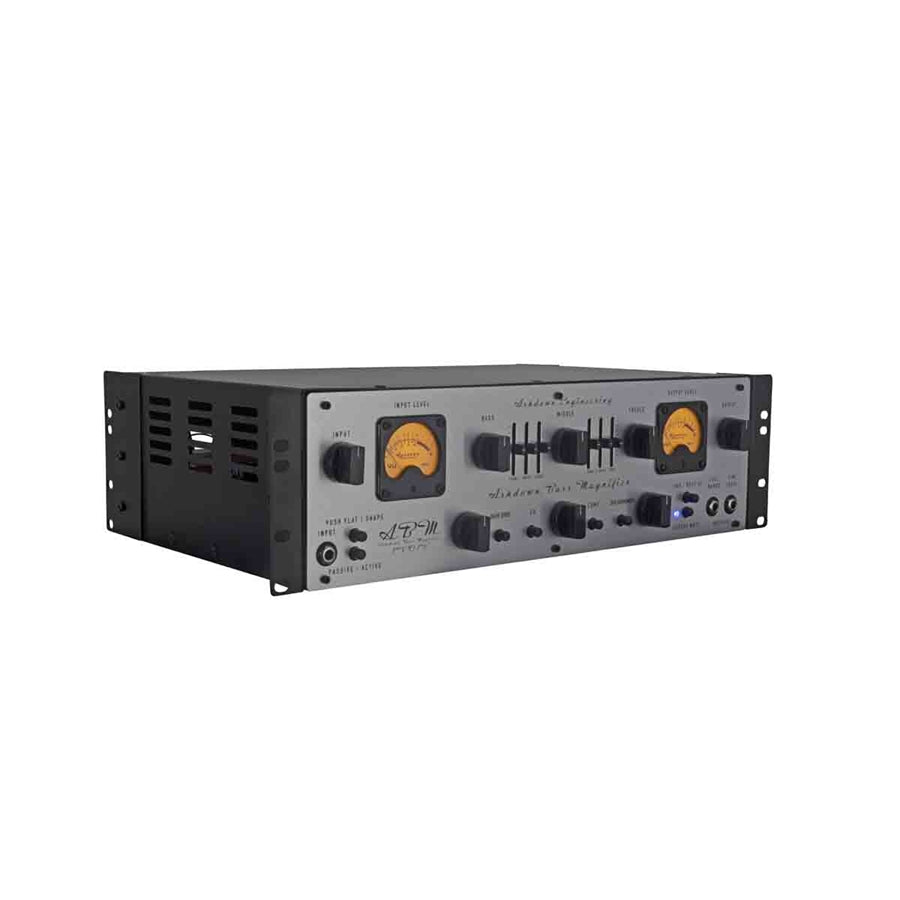

The 600-DR-EVO IV is a Made in UK bass head from the ABM series, developed by Ashdown for bassists seeking tonal versatility, power, and professional reliability, featuring dual VU meters for input and output control and an intuitive, professional analog front-end.

The 600-DR-EVO IV brings the classic Ashdown sound to the stage in a 3U rack chassis, with a 600-watt power amplifier and an extremely flexible analog preamplifier. The Valve Drive with a 12AX7 tube allows for a range from the cleanest transparency to a rich, harmonically-driven overdrive, while the new 9-band EQ (rotary Bass/Middle/Treble + 6 sliders: 100 Hz, 180 Hz, 340 Hz, 1.3 kHz, 2.6 kHz, 5 kHz) enables refined tonal shaping.

The dynamic section is completed by a one-knob compressor for a smooth and present signal in the mix and the Sub-Harmonic generator, which adds a lower octave for fuller and more authoritative lines. The Dual VU meters provide immediate monitoring of Input and Output, facilitating correct gain staging during practice and live performances.

Key Features of the Ashdown ABM-600-DR-EVO IV Head

- 600W power amplifier with ample headroom for medium to large stages

- Variable Valve Drive (12AX7): from classic clean to warm overdrive

- 9-band EQ with key frequencies for precise sound control

- Integrated one-knob compressor for immediate dynamic management

- Adjustable Sub-Harmonic: a lower octave for added depth

- FS-4 Footswitch (optional) for Valve Drive, EQ, Compressor, and Sub-Harmonic

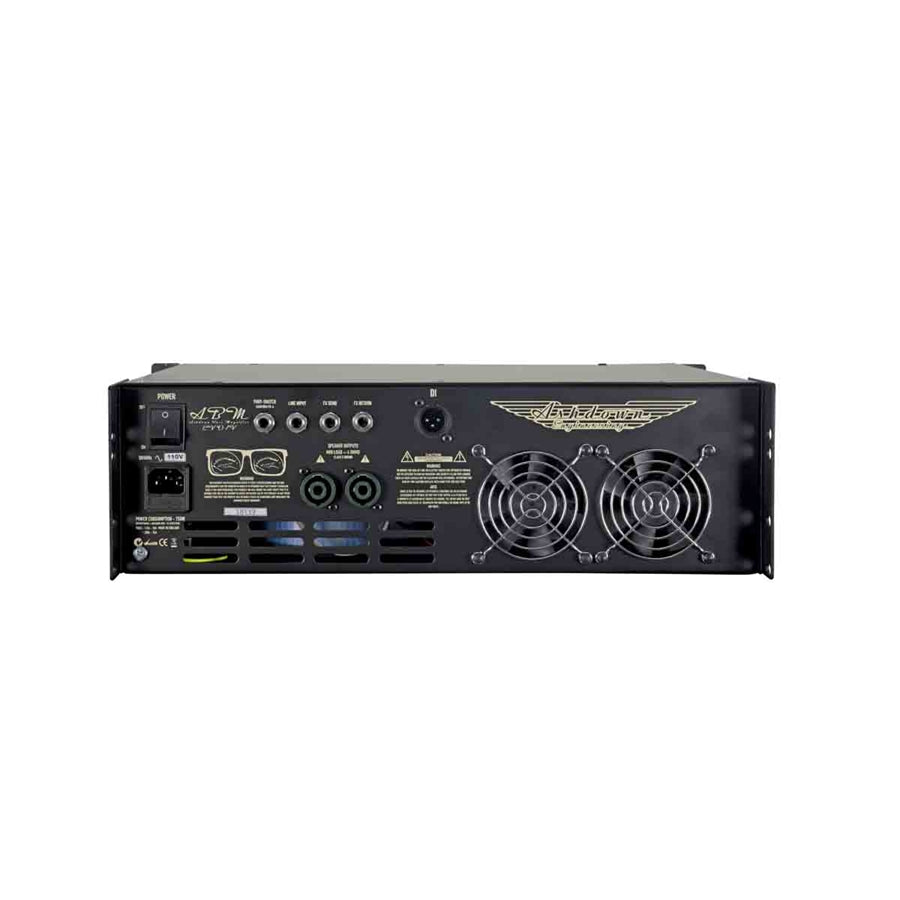

- Professional connectivity: balanced DI, Tuner Out, Line In/Out, FX Loop, combo Jack/Speakon speaker outputs

- 3U rack chassis in 2mm steel with front and rear fixings for maximum tour robustness

Technical Specifications of the Ashdown ABM-600-DR-EVO IV Head

Output Power: 600 W

Power Supply: 115–230 V

Speaker Outputs: 4 x combo Jack/Speakon

Frequency Response: -3 dB @ 17 Hz and 30 kHz

High Instrument Input: 3.9 MΩ (range 150 mV)

Low Instrument Input: 10 kΩ (range 300 mV – 40 V p-p)

Line In / Line Out: 22 kΩ, nominal level 0 dBu

DI Output: 600 Ω balanced, 0 dBu nominal (with output mute)

Tuner Out: 22 kΩ, 0 dBu nominal (always active with mute)

FX Send/Return: 22 kΩ, 0 dBu nominal

Load Impedance: minimum 4 Ω per side

Preamp Tube: 1 x 12AX7

Dimensions (H x W x D): 139 x 457 x 304 mm (3U)

Weight: 10.5 kg

Packed Dimensions (H x W x D): 234 x 511 x 368 mm — Packed Weight: 12.9 kg
