Description

The Cry Baby® 95Q Wah is the wah pedal from Jim Dunlop featuring a Q control to vary the intensity of the effect, a Volume Boost control that provides up to +15 dB of gain, and an auto-return switching system.

OVERVIEW

To create this pedal, an original Cry Baby Wah was taken and three of the most popular upgrades were added: the famous "Q" Control, which varies the intensity of the wah by adjusting the bandpass shape, a Volume Boost, which provides additional gain up to +15 dB, and an auto-return switching system that activates the effect as soon as you step on the pedal. All this adds up to a versatile, great-sounding wah.

POWER SUPPLY

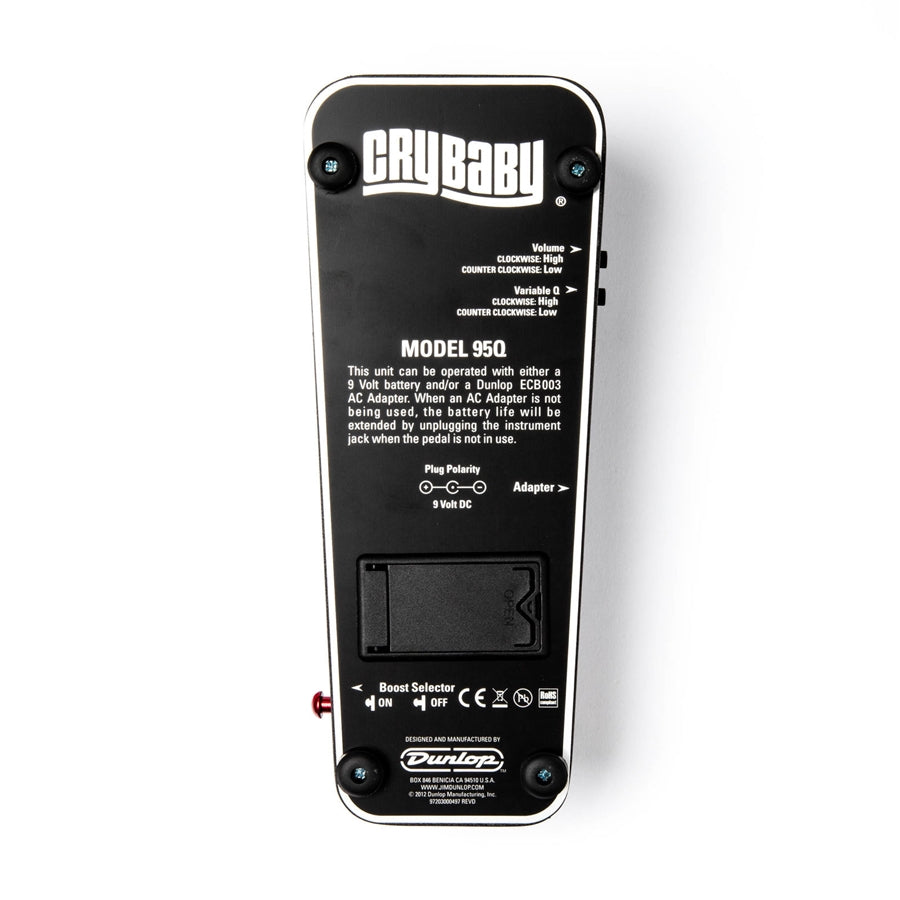

This pedal can be powered by a 9-volt battery or an AC adapter, such as the Dunlop ECB003, Iso-Brick, or Mini Iso-Brick (not included).

CONTROLS

Volume: sets the gain level provided by the switch-activated boost;
Q Control: varies the intensity of the wah by adjusting the bandpass shape;
Boost: adds an amount of gain set by the Volume control.

KEY FEATURES

• "Q" Control to vary the intensity of the wah;
• Volume Boost for additional gain up to +15 dB;
• Auto-return switching system;
• Classic Cry Baby® sound.

CRY BABY 95Q WAH TECHNICAL SPECIFICATIONS

Input Impedance: 1 MOhm
Output Impedance: 1 kOhm
Heel Down Noise Floor: -98 dBV
Toe Down Noise Floor: -90 dBV
Frequency Range: 390 Hz to 2 kHz
Boost Range: 0.1 dB to 15 dB
Bypass: Buffered
Current Draw: 1.8 mA
Power Supply: 9 volt DC
