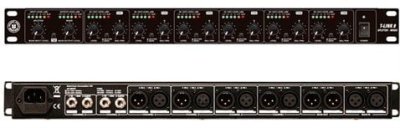

Model T-LINK 8 MIXER / SPLITTER PROCESSOR

AUDIO INPUTS Connectors: XLR and 1/4" TRS

Type: RF filtered, servo-balanced input

Impedance: 50 kOhms balanced, 25 kOhms unbalanced

Nominal operating level: -10 dBV to +4 dBu

Max. input level: +21 dBu balanced and unbalanced

CMRR: Typ. 40 dB, > 55 dB @ 1 kHz

AUDIO OUTPUTS Connectors: XLR and 1/4" TRS

Type: Electronically servo-balanced output stage

Impedance: 60 Ohms balanced, 30 Ohms unbalanced

Max. output level: +22 dBu balanced and unbalanced

SYSTEM SPECIFICATIONS Frequency response: 5 Hz to 200 kHz, +/- 3 dBu

S/N ratio: >95 dBu, unweighted, 22 Hz to 22 kHz

THD: = 0.002 % typ. @ +4 dBu, 1kHz, gain 1

FUNCTION CONTROLS Main input level: variable

Main output level: variable

Level: variable for each channel

Balance/pan: placing in the stereo field

FUNCTION SWITCHES Main Link: links the main input signal to the main output

Split/mix: changeover from split to mix mode for each channel

INDICATORS Input level (main): 6-digit LED display: -18/-12/-6/0/+12/Clip

Output level (main): 6-digit LED display: -18/-12/-6/0/+12/Clip

Input/output level: 6-digit LED display: -18/-12/-6/0/+12/Clip

POWER SUPPLY Mains Voltages

PHYSICAL Dimensions (H*W*D): 483(W) 195(D) 44(H)mm (19" 7.54" 1.7")

Net Weight: 2.6 kg(5.73lb)

Shipping Weight: 3.5 kg
