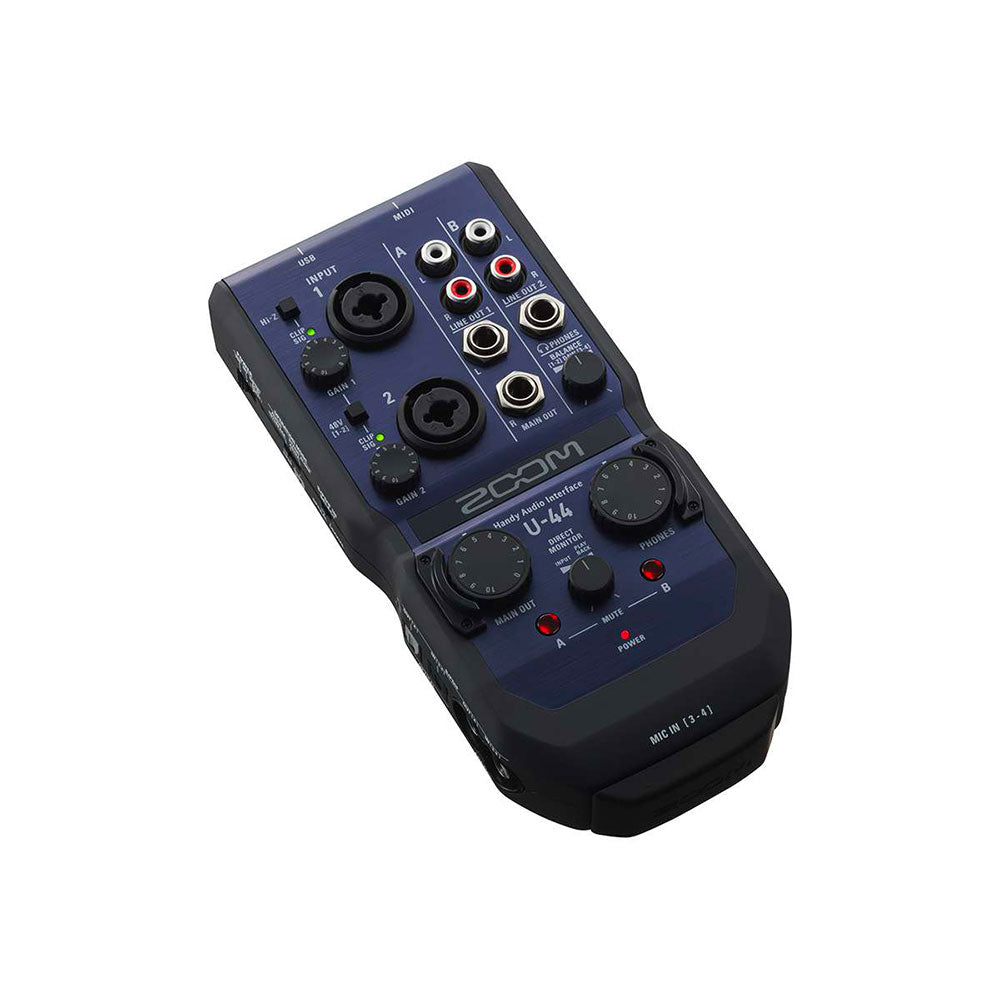

Zoom U44 Interfaccia Audio Usb 4In/4Out

Descrizione

Zoom U44

INTERFACCIA AUDIO USB 4 IN/4 OUT

Interfaccia audio USB per PC/MAC e iPad (via Camera Kit o Lightning-to-USB non inclusi) - 4 ingressi simultanei - Due ingressi combo XLR/Jack con preamp di prima qualità e alimentazione Phantom a 48v - Input 1 con ingresso Hi-Z - Risoluzione fino a 24-bit/96 kHz - Zero-latency direct monitoring - Slot a 10 pin per capsule microfoniche - Utilizzabile stand alone senza collegamento con il computer - Connessioni MIDI, S/PDIF ottico o coassiale - Uscita cuffie - Uscita RCA - Codice di download per Ableton Live 9 Lite - Alimentabile con trasformatore o a batterie (4 ore di autonomia) - Driver e firmware: http://tinyurl.com/hdujnvo

Specifiche

Interfaccia audio USB per PC/MAC e iPad (via Camera Kit o Lightning-to-USB non inclusi) - 4 ingressi simultanei - Due ingressi combo XLR/Jack con preamp di prima qualità e alimentazione Phantom a 48v - Input 1 con ingresso Hi-Z - Risoluzione fino a 24-bit/96 kHz - Zero-latency direct monitoring - Slot a 10 pin per capsule microfoniche - Utilizzabile stand alone senza collegamento con il computer - Connessioni MIDI, S/PDIF ottico o coassiale - Uscita cuffie - Uscita RCA - Codice di download per Ableton Live 9 Lite - Alimentabile con trasformatore o a batterie (4 ore di autonomia) - Driver e firmware: http://tinyurl.com/hdujnvo

ANALOG IN: INPUT 1/2

CONNECTOR: TRS/XLR combo jacks (XLR: 2 hot, TRS: TIP hot)

INPUT GAIN: 0 – 43 dB

INPUT IMPEDANCE: 2.6 k Ω (MIC IN) 1.1 M Ω (when Hi-Z ON)

MAXIMUM INPUT LEVEL: +2.7 dBu (MIC IN) /+20.7 dBu (TRS IN)

PHANTOM POWER: +48V

ANALOG IN: MIC IN

SUPPORTED ZOOM INPUT CAPSULES: XYH-6, MSH-6, SGH-6, EXH-6, SSH-6, XYH-5

ANALOG OUT: MAIN OUT L/R

CONNECTOR: TRS phone jacks (unbalanced)

MAXIMUM OUTPUT LEVEL: +10 dBu (at 0 dBFS)

OUTPUT IMPEDANCE: 330 Ω

ANALOG OUT: LINE OUT 1/2

CONNECTOR: RCA (coaxial)

MAXIMUM OUTPUT LEVEL: +8 dBu (at 0 dBFS)

OUTPUT IMPEDANCE: 1kΩ

ANALOG OUT: PHONES

CONNECTOR: Standard stereo phone jack 30 mW x 2 (into 32 Ω load)

MAXIMUM OUTPUT LEVEL: +10 dBu (at 0 dBFS)

OUTPUT IMPEDANCE: 33 Ω

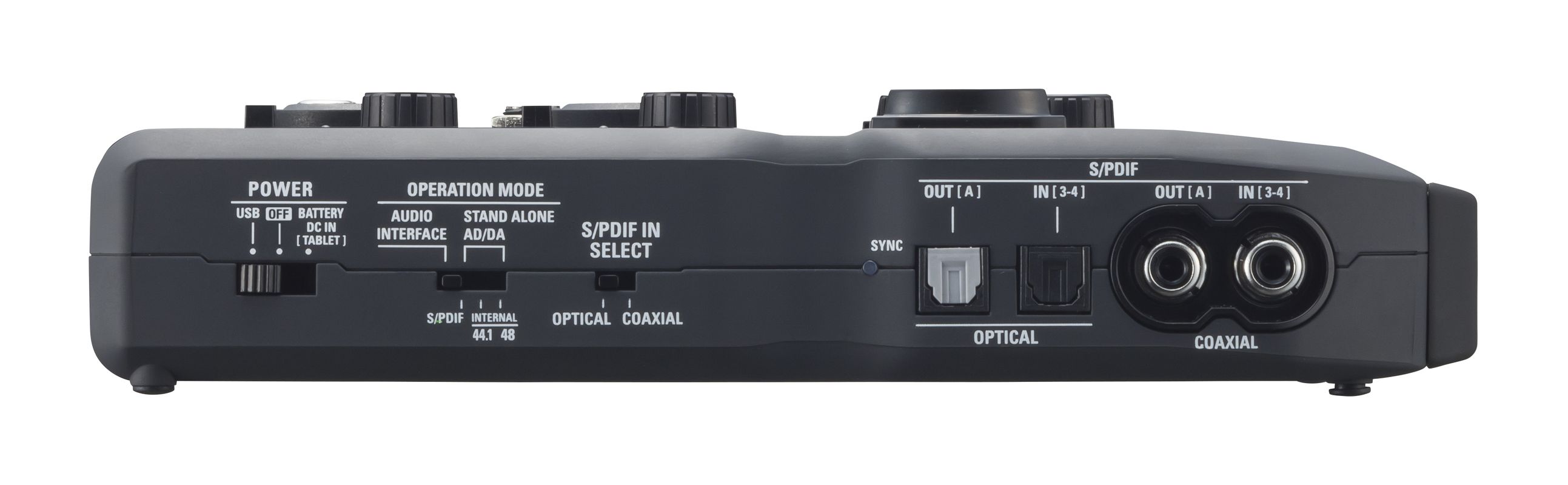

DIGITAL IN/OUT: S/PDIF OPTICAL

CONNECTOR: TOSLINK

SUPPORTED SAMPLING FREQUENCIES: 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz

DIGITAL IN/OUT: S/PDIF COAXIAL

CONNECTOR: RCA (coaxial)

SUPPORTED SAMPLING FREQUENCIES: 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz

Additional Specifications

FREQUENCY CHARACTERISTICS: At 44.1 kHz: ±1.5 dB: 20 Hz - 20 kHz At 96 kHz: ±2 dB: 20 Hz - 40 kHz

INPUT CONVERSION NOISE: Measured EIN: -119.5 dB (IHF-A) at 43 dB, 150 Ω input

NUMBER OF AUDIO RECORDING AND PLAYBACK CHANNELS: Recording: 4 channels Playback: 4 channels

SAMPLING FREQUENCIES: 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz

BIT DEPTH: 24-bit

INTERFACE: USB 2.0

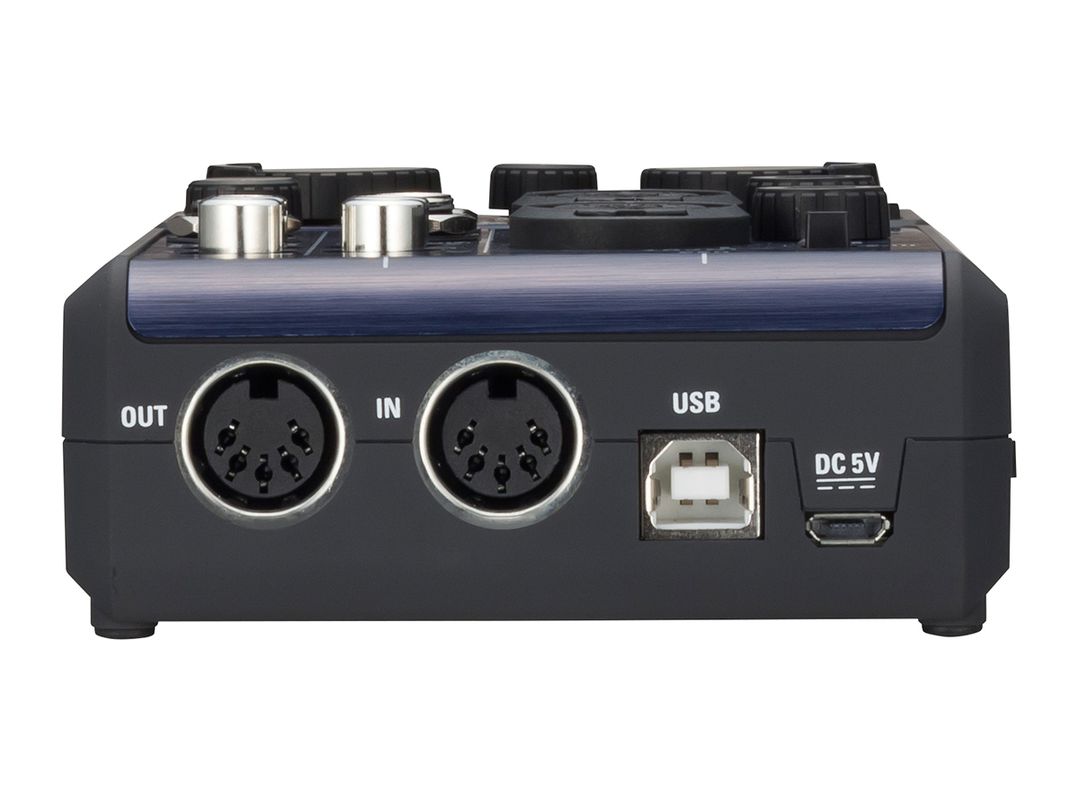

MIDI IN/OUT: 5-pin DIN jack

POWER SOURCE: USB bus power (Type B) ZOOM AD-17 (Micro-B) DC 5V power supply (Micro-B) 2 AA batteries (4 hours continuous operation with phantom power off)

POWER CONSUMPTION: 5W maximum

DIMENSIONS: 198.8 mm (D) 92.3 mm (W) 42.7 mm (H)

WEIGHT (MAIN UNIT ONLY): 310 g

U-44 SYSTEM REQUIREMENTS

WINDOWS: OS： Windows® 7 SP1 or later / 8.1 / 10 (32bit/64bit) CPU: Intel® Core i3 or faster* USB: USB 3.0/USB 2.0*** Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD. ** Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards.

MAC:: OS： Mac® OS X 10.9.5 or later / 10.10 / 10.11 / 10.12 / 10.13 / 10.14 CPU: Intel® Core i3 or faster USB: USB 3.0/USB 2.0** Operation is not guaranteed when used with USB hubs or expansion cards.

IPHONE/IPAD OS： iOS 7.1 or later * Requires 2 AA batteries or optional AC adapter for power, plus an Apple iPad Camera Connection Kit or Lightning-to-USB Camera Adapter.
