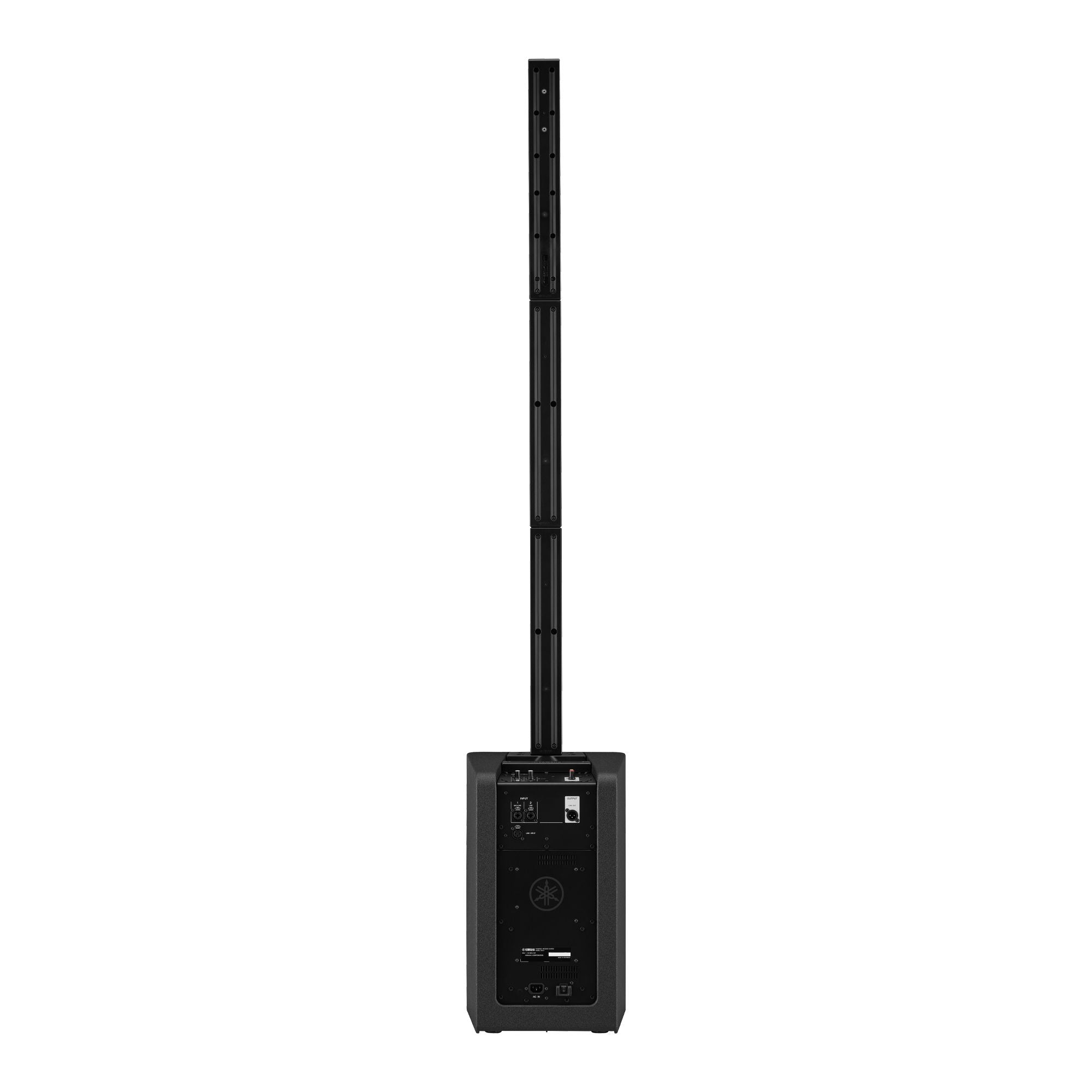

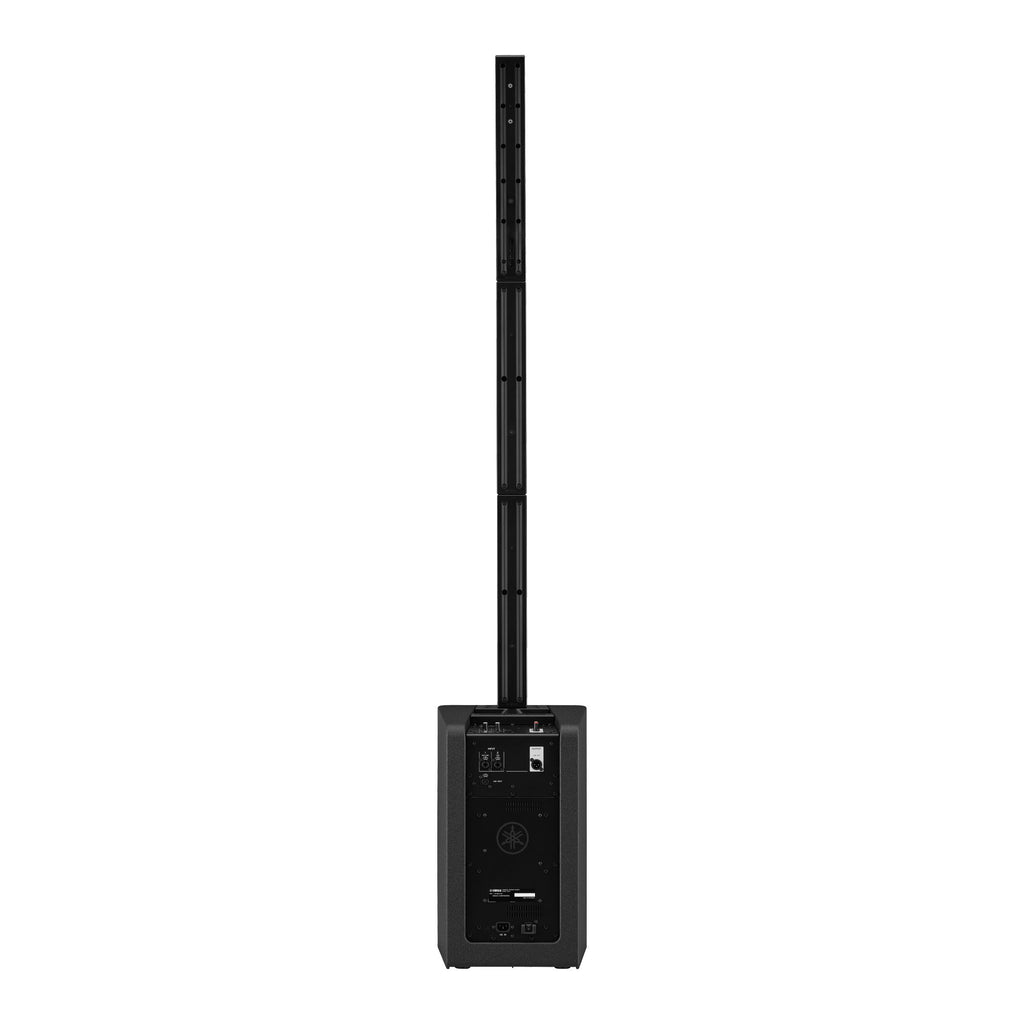

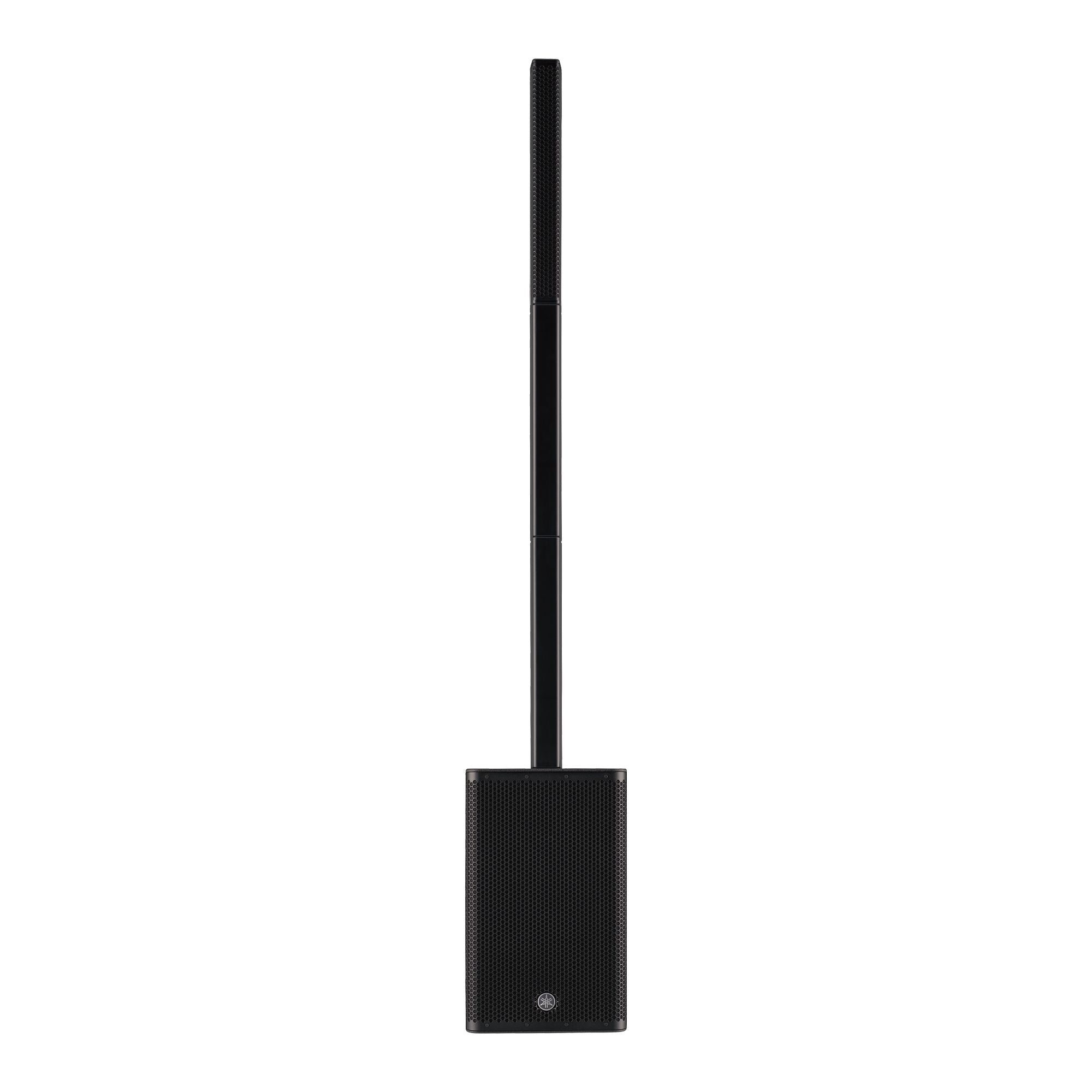

Yamaha DXL1K Column Type Powered Speaker System

Descrizione

YAMAHA DXL1K Powered Loudspeaker

The DXL1K is a column-type powered speaker with a powerful 125dB SPL peak@1m sound output that belies its extremely portable slim body (a dedicated carrying cart is sold separately).

The combination of an easy setup procedure that only requires the line-array speaker to be attached to the top of the subwoofer cabinet, with the system expandability offered by the Link function, allows the DXL1K to be used in combination with a compact mixer or with the fully compatible STAGEPAS 1K mkII, creating a simple, compact, and high-quality PA system.

1100W power output

Biggest in the class 12-inch subwoofer for low frequency

1.5-inch x10 slim line array speaker for high frequency

Easy-to-use 2-Channel Mixer

Link in/out for expanding system

Dedicated cover included

Optional dolly (DL-SP1K) for more portability

Specifiche

Speaker type Powered subwoofer with a line array speaker

Frequency range (-10dB) 37 Hz - 20 kHz

Coverage area H170ﾟ x V30ﾟ

Crossover 240 Hz

Maximum output level (1m; on axis) 125 dB SPL

Components LF Powered subwoofer: 12” (30 cm) Cone

HF Line array speaker: 1.5” (3.8 cm) Cone x 10

Amplifier class Class-D

Power rating Dynamic 1100 W

Power consumption 25 W (Idle), 91 W (1/8 power)

Power requirements Depending on area of purchase: 100 V 50 Hz/60 Hz, 110-120 V 60 Hz, 220 V-240 V 50 Hz/60 Hz

Processors MODE (SPEECH/MUSIC/CLUB)

I/O connectors INPUT1: Combo x1 (mic/line), INPUT2: Combo x1 (line), LINK IN: XLR x1, LINK OUT: XLR x1

Handle Top of powered subwoofer x1

Dimensioni (L x A x P mm) System: 334 x 2,000 x 418 mm (maximum), Line array speaker: 67 x 582 x 86 mm, Powered subwoofer: 334 x 550 x 418 mm, Spacer: 67 x 555 x 86 mm (each)

Peso System: 23.0 kg (maximum), Line array speaker: 1.8 kg, Powered subwoofer: 20.0 kg, Spacer: 0.6 kg (each)

Accessories Power cord x1, Cover x1

Options Yamaha DL-SP1K (Dedicated dolly)
