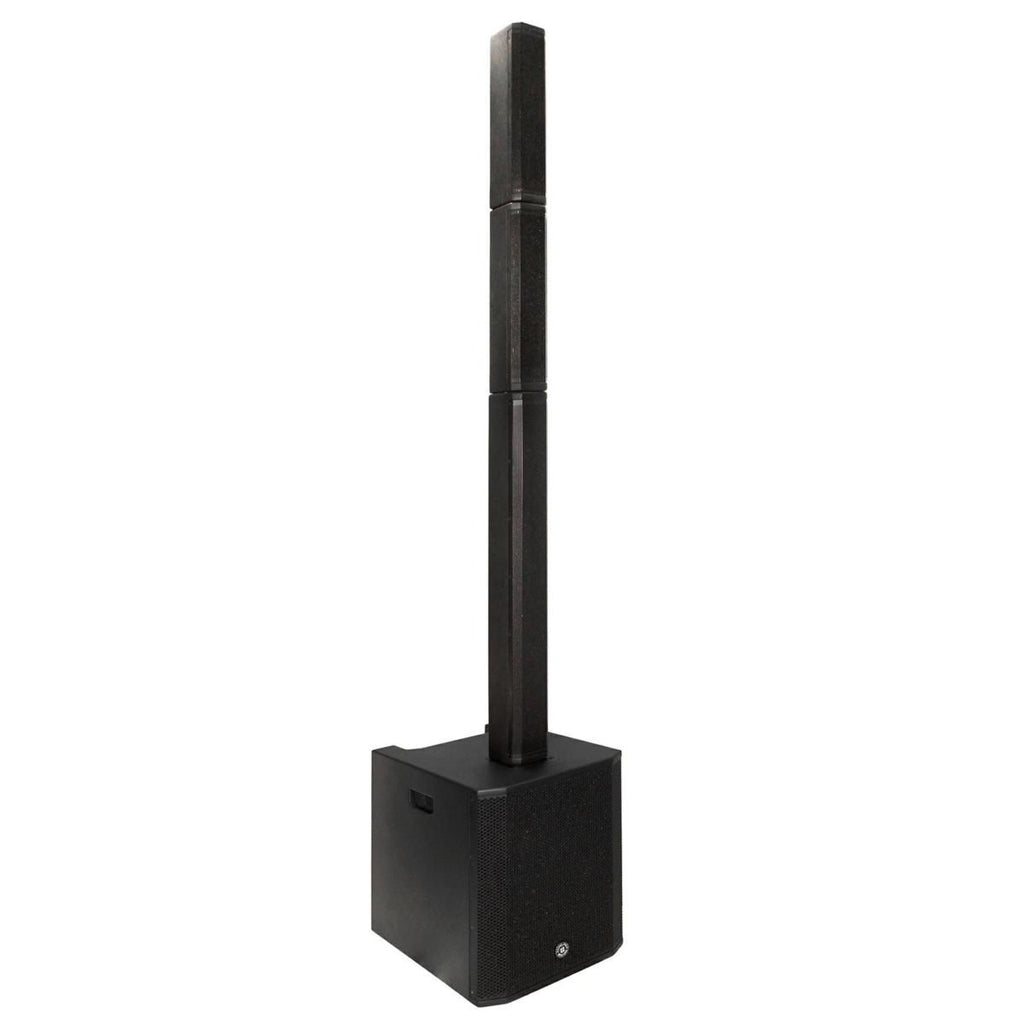

Topp Pro VA42.12 SYSTEM Sistema Audio a Colonna

Descrizione

Topp Pro VA42.12 SYSTEM Sistema Audio a Colonna

Sistema attivo Vertical Array VA42.12 a colonna con satelliti orientabili in maniera indipendente e subwoofer da 12″.

Potenza complessiva del sistema: 2000W “Program”.

Lettore MP3 incorporato con radio FM e Bluetooth.

Include: VA12SA (subwoofer attivo) + VA-WP (asta vuota) + VA42BM + VA42TP (doppio satellite passivo sovrapposto).

SATELLITE (cadauno): 4 woofer da 3,5”. Pressione acustica Max SPL: 122dB. Copertura orizzontale: 100° (orientabili singolarmente). Dimensioni (AxLxP): 422×106,6x98mm. Peso:3,4kg.

SUBWOOFER: woofer da 12”, amplificatore in Classe D da 2x1000W Program / 2x2000W Peak con DSP. Pressione acustica Max SPL: 130dB. Dimensioni (AxLxP): 500x379x473mm. Peso: 21,5kg.

DSP integrato con curve di equalizzazione customizzabili a piacimento tramite app per Apple iPad o applicazione PC.

Specifiche

Passive Speaker VA42BM

System Type 3.5″ Passive Speaker System

Output Power 120W Continuous, 240W Program, 480W Peak

Sensitivity (1W/1M) 95dB

Maximum SPL @ 1m 122dB Max. (calculated)

Frequency Response (-6dB) 160Hz-20kHz

Impedance 8 ohms

Transducer Low 4 x 3.5” Woofer, 1” (25.4mm) Voice Coil

Crossover Frequency 500Hz

Dispersion (-6dB) 100° Horizontal

Attachment Points Adjustable Rigging System, Horizontal Splay Rotation in -90°-0°- 90° Increments from 180°

Enclosure Construction Plywood Cabinet, Resistant Paint, Metal Grille with Foam

Mounting 2 x Holder, 1 x Input Connector for VA-WP Pole, Another with Input Connector for VA42TP

Dimensions (HxWxD) 448 x 106.6 x 98mm (17.64” x 4.20” x 3.86”)

Net Weight 3.48Kg (7.67 Ibs)

Passive Speaker VA42TP

System Type 3.5″ Passive Speaker System

Output Power 120W Continuous, 240W Program, 480W Peak

Sensitivity (1W/1M) 95dB

Maximum SPL @ 1m 122dB Max.(calculated)

Frequency Response (-6dB) 160Hz-20kHz

Impedance 8 ohms

Transducer Low 4 x 3.5” Woofer , 1” (25.4mm) Voice Coil

Crossover Frequency 500Hz

Dispersion (-6dB) 100° Horizontal

Attachment Points Adjustable Rigging System, Horizontal Splay Rotation in -90°-0°- 90° Increments from 180°

Enclosure Construction Plywood Cabinet, Resistant Paint, Metal Grille with Foam

Mounting 1 x Holder, 1 x Input Connector for VA-42BM or VA-WP Pole

Dimensions (HxWxD) 422 x 106.6 x 98mm (16.61” x 4.20” x 3.86”)

Net Weight 3.41Kg (7.52 Ibs)

Active Subwoofer VA12SA

System Type 12″ Active Subwwofer Apeaker Cabinet

Frequency response -6 dB 40Hz-500Hz

Total amplifier power 1000W Continuous/2000W Program/4000W Peak Class D @ 4 Ohms

Amplifier, subwoofer 500W Continuous / 1000W Program / 2000W Peak Class-D @ 4ohms

Amplifier, satellite / mid / high unit 500W Continuous / 1000W Program / 2000W Peak Class-D @ 4ohms

Sensitivity (1W@1m) 96dB

Maximum SPL@1m 130dB (Calculated)

Electronic Protections Over heat Protection / Short Circuit Protection / Digital Compressor

Cooling Temperature-controlled fan

Connections Input: 2 Combo-XLR & 1/4″, RCA In L & R, 1 XLR Thru & Mix out

External Controls Volume Control / Switch for Input sens. / Swtich for mode selector / Power ON with Green LED / Limiter with Red LED / Ground Lift / IP Control

Power Supply 110V/230V -50/60Hz

Enclosure Construction Plywood cabinet, resistant black paint, metal grille with foam, rubber feet, handles

Mounting Holder with Input Jacks for Pole

Dimensions (W x H x D) 430 x 450 x 480 mm (16.93″ x 17.72″ x 18.90″)

Net Weight 20.51 kg / 45.22 lbs.

Pole VA-WP

Enclosure Construction Plywood Cabinet, Resistant Paint, Metal Grille with Foam

Mounting 2 x Holder, 1 x Input Connector for Sub, Another with Input Connector for Satellite

Dimensions (WxHxD) 700 x 106.6 x 98mm (27.56” x 4.20” x 3.86”)

Net Weight 2.70Kg
