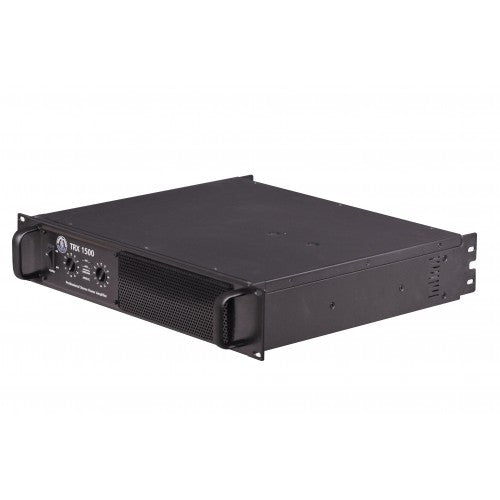

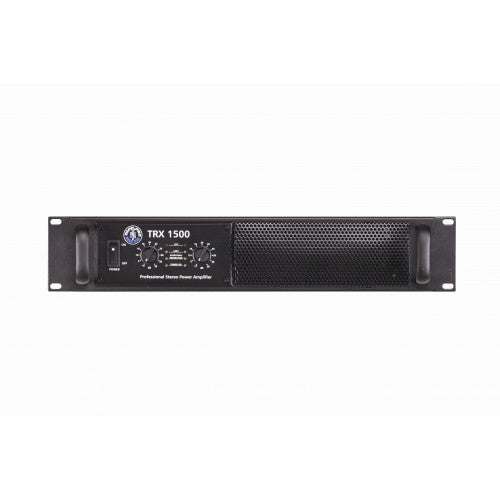

Topp Pro Trx1500 Amplificatore 2 Canali 2 Unita Rack 19' 2X400W

Descrizione

Topp Pro Trx1500 Amplificatore 2 Canali 2 Unita Rack 19' 2X400W

Amplificatore a 2 canali e 2 unita’ 19"

Power bridge mode 8 ohms: 800W

Power stereo mode 4 ohms: 400W x 2

Power stereo mode 8 ohms: 250W x 2

Specifiche

Bridge Mode 8 Ohms

Continuous

800w

Program / Peak

1000W / 1600W

Stereo Mode 4 Ohms

Continuous

400W x 2

Program / Peak

540W x 2 / 800W x 2

Stereo Mode 8 Ohms

Continuous

250W x 2

Program / Peak

350W x 2 / 500W x 2

Dimension (cm)

59.1 x 53.9 x 17.9

Weight (kg)

17.85

Distortion: (SMPTE-IM):

<0.05%

Frequency Response:

20Hz- 20kHz ±0.1/3dB

Signal to Noise:

20Hz- 20kHz 102dB

Voltage Gain:

40x (32dB)

Input Sensitivity @ 4 ohms:

1Vrms

Input clipping:

10 Vrms (+22dB)

Input Impedance:

10 Kohms unbalanced, 20 Kohms balanced, 56 (36dB)

Controls:

Front: AC Switch, Ch1 - Ch2 Gain Knobs, Rear:Limiter, Bridge Selector

Indicators: (1 per Channel)

Power-On: Blue LED, Protection: Green LED, Limiter : Yellow LED, Clip: Red LED, Parallel-input: Yellow LED

Connectors, each channel:

Input: Terminal Block / Output: Screw-terminal Barrier Block

Cooling:

Continuously variable speed fan, front-to-rear air flow

Load Protection:

On / Off muting, overheat & short circuit protection

Power Supply:

220-240V (110-120V) AC 50-60Hz
