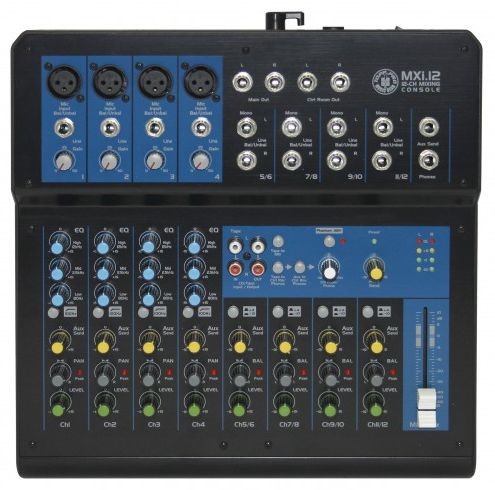

Topp Pro Mxi12Fx

Descrizione

TOPP PRO MXI12FX

Il modello MXI12FX è un mixer compatto di ottima qualità con un set di funzioni molto completo. Con 4 ingressi microfonici e 4 ingressi stereo di linea è l'ideale per piccoli spettacoli dal vivo, studio di registrazione e applicazioni generali PA. MXI12FX include anche un multi effetto digitale a 24 bit con 100 preset. C'è un equalizzatore a 3 bande su tutti i canali di ingresso. Sono disponibili uscite separate Mix e Control Room per il funzionamento in diverse configurazioni. Ideale per piccoli concerti e la registrazione. MXI12FX è anche uno strumento flessibile anche per applicazioni multimediali.

12 Input Mixer

4 MIC/Line inputs

4 Stereo Line Inputs

RCA Tape inputs/outputs

3-band EQ

1 AUX send per channel

Phantom Power

Headphone output

Control Room Out

24-bit Digital FX Processor / 100 Presets

4 ANNI DI GARANZIA

NEI PRIMI 2 ANNI SOSTITUZIONE COMPLETA

NEI RESTANTI 2 ANNI RIPARAZIONE IN GARANZIA

ESTENDI LA GARANZIA QUI

www.sistemamt.it/supporto

Specifiche

Frequency Response

Mic Input to any Output (Gain @ 0 dB, Rated output level) 20 Hz to 50 kHz(0, -1dB) 20 Hz to 130 kHz(0, -3dB)

Distortion (THD&N)

Mic Input to MAIN Output(Gain @ 0 dB, Rated output level @ 20 Hz-20 kHz bandwidth) 0.003%(A-weighted)

MIC EIN (Equivalent Input Noise)

Input: Channel INPUT MIC (Rs = 150 Ohm ,Gain @ Max.,20 Hz-20 kHz bandwidth) 119dBu (A-weighted)

Input Gain Control Range (20 Hz-20 kHz bandwidth)

Mono Channel MIC: 0 to 48dB, LINE: -33 to +15dB

Stereo Channel LINE: -8 to +6dB

Attenuation (Crosstalk) (20 Hz-20 kHz bandwidth)

Line in, 1/4" TRS Main Out,1 kHz relative to 0 dBu, 22 Hz ~ 22 kHz Filter,Gain @ unity

Main Mix knob/fader @ -8 -87dBu(A-weighted)

Channel Level knob/fader @ -8 -85dBu(A-weighted)

Rated Output Level

Main, Aux, Control Room output (all knob/fader @ 0 dBu,1 kHz) 0dBu

Maximum Output Level

Main, Aux, Control Room output(all knob/fader @ 0 dBu,1 kHz, 22 Hz 22 kHz Filter,THD @ 1%) +20dBu

Maximum Voltage Gain (EQ and PAN/BAL knob @ 0 dB, Other all knob or fader @ max, DFX mute,1 kHz, Rs=600 Ohm)

Mono Channel MIC INPUTMAIN OUT (1/4" TRS Unbalanced) 74dBu

Mono Channel MIC INPUTPHONES (1/4" TRS Stereo) 84dBu

Mono Channel MIC INPUTAUX SEND (1/4" TRS Unbalanced) 79dBu

Mono Channel MIC INPUT TAPE OUT (RCA) 74dBu

Mono Channel LINE INPUT MAIN OUT (1/4" TRS Unbalanced) 59dBu

Stereo Channel LINE INPUT MAIN OUT (1/4" TRS Unbalanced) 33dBu

TAPE INPUT MAIN OUT (1/4" TRS Unbalanced) 10dBu

Main mix Noise (20 Hz-20 kHz bandwidth)

MAIN OUT (all knob/fader @ 0 dBu,22 Hz 22 kHz Filter,Gain @ unity)

Main Mix knob/fader @ -8 -106dBu (A-weighted)

Channel Level knob/fader @ -8

Main Mix knob/fader @ 0dB -95dBu (A-weighted)

Channel Level knob/fader @ -

Main Mix knob/fader @ 0dB -93dBu (A-weighted)

Channel Level knob/fader @ 0dB

Input HPF

Channel 1-4 75Hz, 18 dB/oct

Equalization (Mono channels)

High +/-15 dB @12 kHz

Mid +/-12 dB @2.5 kHz

Low +/-15 dB @80 Hz

Internal Digital Effect

Presets 100

Controls 100-Position PRESET Selector and Mute Switch

Display Two 7-segment display and Mute/Peak LED Indicator

Type of effects VOCAL,SMALL ROOM, LARGE HALL, ECHO, ECHO+VERB, FLANGE+VERB, PLATE, CHORUS+GTR,ROTARY+GTR, TREMOLO+GTR

PEAK Indicator

Channel 1-12 +17dBu

Digital Effect(AUX send) +11dBu

VU Meters +20dBu

VU Meters

Main Left and Right (4-segment) Clip (+20), +6, 0, -20 (0 LED=0 dBu)

Impedance

Microphone Input 2.6k Ohms

Line Input 10k Ohms

CD/Tape Input 22k Ohms

Main Outputs 120 Ohms

Ctrl Room, Aux Sends 120 Ohms

Tape Output 1K Ohms

Phones Outputs 25 Ohms

Phantom power

Mic Pin2/Pin3 And Pin1(XLR-3-31 type balanced1=GND,2=HOT,3=COLD) +48V

Power supply

Adaptor AC 18V, 1000mA

Power Consumption 18W

Physical

Dimension (L*W*H) 271*259*54.3mm

Weight Net:1.9kg
