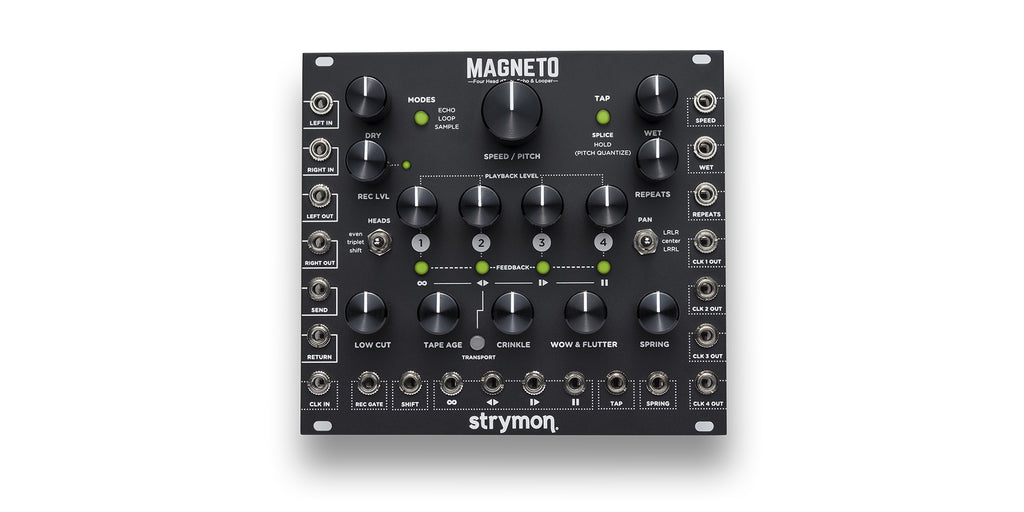

Strymon Magneto Delay Stereo

Descrizione

STRYMON MAGNETO DELAY STEREO

Magneto è l'ultimo novità in casa Strymon.

Magneto è un modulo EuroRack che fa da Echo multitestina stereo (con simulazione dell'eco a nastro) con incluse le funzioni di looper, phrase sampler, vintage spring reverb, processore d'allineamento fase, chaotic oscillator, zero latency sub-oscillator e molto altro. È un prodotto fenomenale che permette di creare nuove oscillazioni e nuove orchestrazioni partendo da segnali monofonici.

Implementabile con gli effetti Strymon e utilizzabile come uno di essi Magneto permette di esplorare nuovi orizzonti sonori.

Per avere ulteriori informazioni su Magneto contattaci inviando una mail a info@yourmusoncline.it

Se invece cerchi altri moduli esplora il nostro reparto DIgital

Specifiche

Tape-voiced delay machine with four playback heads and one record head

Processor-intense dTape algorithm delivers meticulously nuanced recreations of vintage tape echo systems

Three operational modes: Echo, Sound On Sound Looper, Phrase Sampler

Varispeed algorithm with dynamic machine mechanics, 8:1 speed range

Input record level for clean reproduction to warm, fat saturation

Self-oscillating for tone generation

Independent Spring Reverb

Dedicated control over tape mechanics, machine health, and tone: Low Cut, Tape Age, Crinkle, Wow & Flutter

Transport controls (buttons and CV inputs) for real-time performance options

Individual Playback Head Level controls

Individual head Feedback assignment independent of playback level

Three stereo head panning options, including user-defined custom panning

Phase aligned clock out (CLK OUT) CVs synched with clock in (CLK IN) CV

Maximum Delay/Loop Time: 15 seconds at maximum Speed, two minutes at minimum Speed

Minimum Delay Time: 200µS at maximum speed

Clock In CV Range: 50ms – 15s

TAP Button Range: 50ms – 15s

TAP CV Range: 10ms – 15s

Analog dry path for a zero latency dry signal that is never converted to digital

Super high performance SHARC DSP

114db typical signal to noise

Sampling Rate: 96kHz

Audio Input Impedance: 22 kOhm

Maximum Audio Input Level: 20 Vpp

Audio Output Impedance: 1 kOhm

Maximum Audio Output Level: 20 Vpp

Power

+12V rail: 210mA

-12V rail: 210mA

+5V rail: 0mA

Eurorack power cable included

Dimensions

Rack Width: 28hp

Rack Depth: 41mm, 1.61”

Designed & Built in the USA
