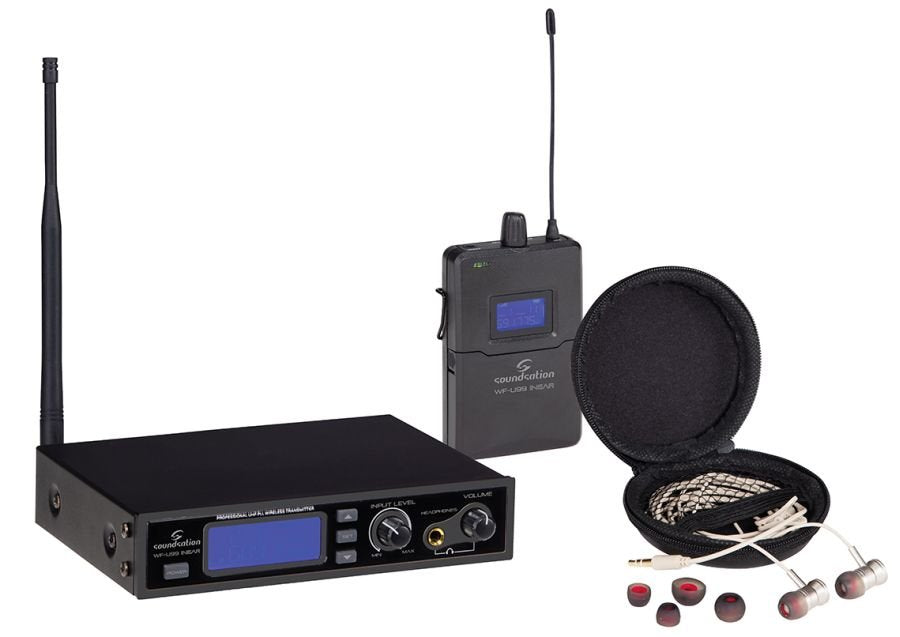

Soundsation Sistema In Ear Monitor Wfu99

Descrizione

Soundsation sistema in ear monitor wfu99

Sistema in ear monitor robusto, affidabile, facile da impostare, il WF-U99 RX è completamente stereo, e realizzato con tecnologia PLL e ha 99 canali. È dotato di LCD illuminato assolutamente semplice da impostare. Inoltre ha in dotazione degli auricolari che assicurano una ottima riproduzione dello spettro audio.

Specifiche

Frequency range UHF 823-832 + 863-865 MHz

FM stereo modulation

Output power 10mW

Effective working distance 80 meters (without obstacles)

Maximum deviation ± 68 KHz

Full S / N ratio> 105 dB

Full T.H.D <0.4% at 1 KHz

Audio input 2x line inputs with combo connectors (XLR and 6.3mm jack)

Audio output 6.3 mm stereo jack

Transmitter dimensions (WxHxD) 210 x 43 x 182 mm

Transmitter weight 1.06 kg

Frequency response 40Hz-16KHz ± 3dB

Stereo Separation = 45dB @ 1 KHz

Receiver output socket 3.5mm stereo headphone socket

Output power 2x150mW (THD3%)

Battery 2x AA batteries

Current consumption of receiver 185 mA (typical)

Battery Current / duration Approximately 7 hours

Receiver dimensions (HxWxP) 111 x 66 x 26 mm (antenna excluded)

Receiver antenna dimensions (W / DxH) Ø4 x 105 mm

Receiver weight 143 g (including batteries)
