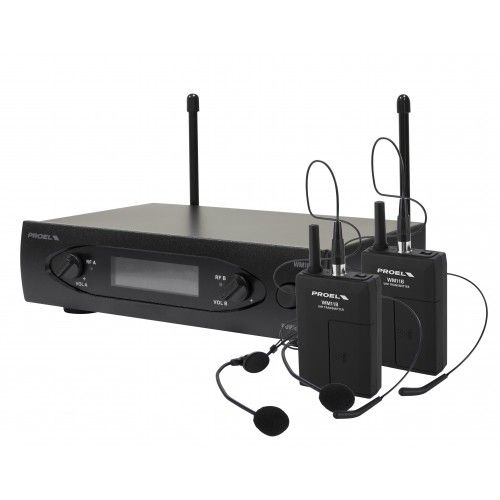

Proel Wm101Dh Doppio Radiomicrofono Headset Wireless

Descrizione

Radiomicrofono bodypack doppio canale a frequenza fissa

Banda UHF 863 - 865 MHz

Distanza operativa massima fino a 25 metri / 85 feet

Risposta in frequenza 50 Hz - 15 KHz

Rapporto segnale rumore -105 dB

Headset a condensatore x 2

Ricevitore da tavolo a basso profilo

Ricevitore con schermo retro illuminato con indicazione delle frequenze

Due uscite audio xlr separate con volumi indipendenti

Specifiche

WM11B Bodypack Transmitter

Carrier frequency range 863 -865 MHz

Modulation Metod FM(F3E)

Transmitting Power < 10dBm Max Erp ( Effective Radiated Power )

Transmission distance Up to 25 mt ( open space )

RF Frequeny Stability 0,00%

Audio Frequency Response 50 - 15000 Hz

RF Max deviation ± 50 khz

Spurious Emission Under limits EN300422

RF Output Power < 10dBm Max Erp ( Effective Radiated Power )

Mic Capsule Headset Back Electret Condenser mini xlr connector

Polar pattern cardioid

Power Requirement 2 x 1,5 Volt AA type

Battery Life Up to 8 hours

Dimensions H 260 x Ø 45 mm

WM101D Receiver

Receiver Type Uhf Band

Frequency range 863 -865 MHz

Modulation Metod FM(F3E)

RF Frequeny Stability 0,00%

RF Image / Spurious Rej >70 dBm

RF interference Rej. >70 dBm

 Sensitivity -105 dBm

Audio Frequency Response 50 - 15000 Hz

THD < 1%

Dynamic range > 90 dB

S/N ratio > 100 db

Power Requirement 2 x 1,5 Volt AA type

Output connector Unbalanced ¼ “ jack

Dimensions H 45 X L 150 × W 118 mm
