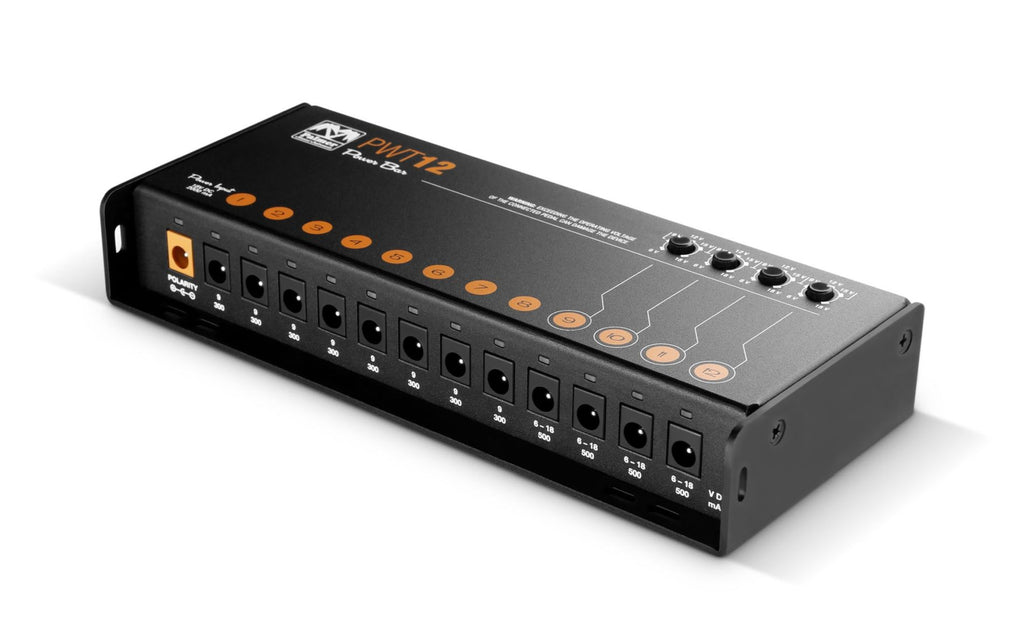

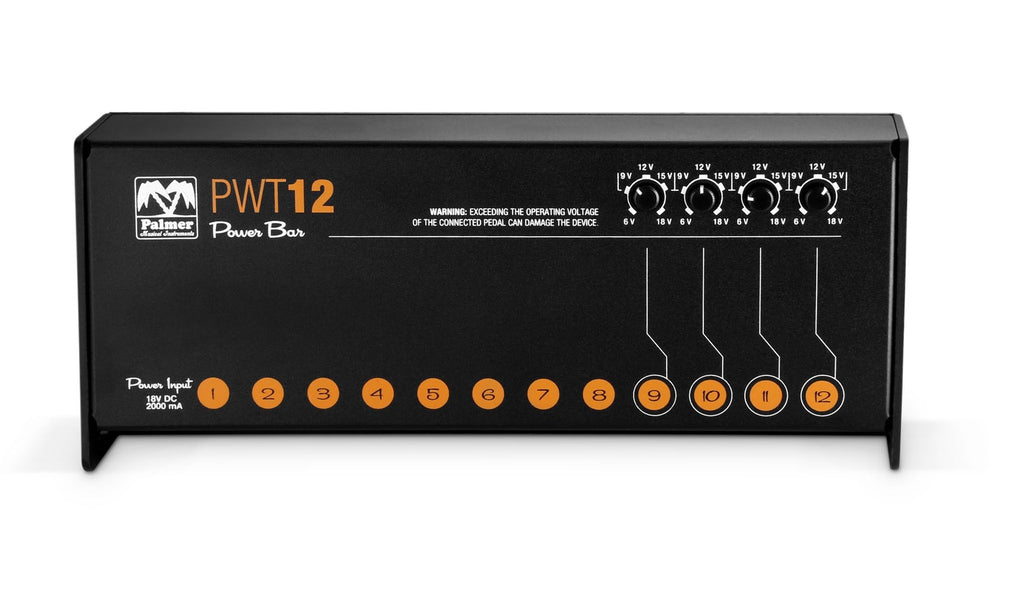

Palmer Pwt12Mk2 Pedalboard Power Supply

Descrizione

PALMER PWT12MK2 PEDALBOARD POWER SUPPLY

The PWT 12 is a heavy duty (2000 mA) universal pedal board power supply with 12 isolated 9 V DC, centre-negative female pin-connector outputs. Four of the outputs feature adjustable voltage from 9 to 18 volts. The variable outputs enable the simulation of voltage drop or 'battery sag' in old batteries. The power supply is regulated for constant voltage supply and protected against short circuit and overloading. The PWT 12 is equipped with a power LED and a two-colour LED output status indicator. It is supplied with an AC adapter and a set of DC cables. The PWT 12 is the ideal solution for power-hungry foot pedals or 9-volt effects units that can be operated at higher voltages for increased dynamics and stability.

Universal 12-Outlet Pedalboard Power Supply

Fully regulated universal pedalboard power supply

12 standard centre negative outlets with 2,000 mA output total

8 x 9 V outlets (300 mA each)

4 variable voltage outlets 6 to 18 V (500 mA each)

Short circuit and overload protection for each outlet

DC cables and mains adapter included

Specifiche

Tipo di prodotto Alimentatori

Tensione di entrata 100 - 250 V

Numero uscite 12

Connessioni di uscita 2,1 x 5,5 mm

Tensione di uscita 12 V , 18 V , 9 V

Corrente di uscita max. 2000 mA A

Uscite isolate Sì

Polarità Polo negativo al centro

Lunghezza del cavo di alimentazione 25 - 50 cm

Indicatori Errori , Power

Elementi di comando Selettore di tensione d’uscita

Larghezza 193 mm

Profondità 70 mm

Altezza 30 mm

Peso 0,4 kg
