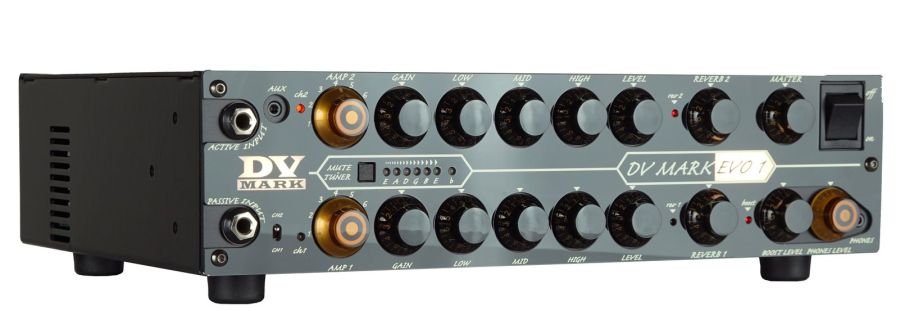

Dv Mark Evo1

Descrizione

Dv mark evo

1

Specifiche

INPUTS

INPUT 1 (passive): impedance 1MΩ

INPUT 2 (active): impedance 1MΩ

AUX IN: stereo mini-jack 3.5mm

RETURN 1 / RETURN 2: mono jack 1/4"

USB: type B

MIDI: DIN 5 poles

OUTPUTS

SPEAKER OUTPUT (4ohms minimum load)

two mono jack 1/4" + one Speakon (in parallel)

PHONES : stereo mini-jack 3.5mm

SEND 1 / SEND 2: mono jack 1/4"

XLR LINE OUT

CAB/Speaker Emulator is assignable to this output using the DV Mark EVO 1 software.

CHANNELS

TWO (with six Virtual AMPs per channel)

EQUALIZATION (per channel)

LOW-MID-HIGH

CONTROLS

GAIN (per channel)

AMPS Selection: 6 for CH1 / 6 for CH2

LEVEL (per channel)

REV 1

REV 2

MASTER

PHONE LEVEL

BOOST

MIDI FUNCTIONS

Switch CH1, CH2

FX1 ON/OFF, FX2 ON/OFF

BOOSTER ON/OFF

MUTE/TUNER

Controllable by the optional EVO1 Controller / MIDI Pedalboard

OTHER FEATURES

Channels Switch

+4dB / -10dB and GND Lift switches (LINE OUT)

TUNER (with MUTE function)

440Hz / half step down / whole step down modes

DIMENSIONS

14.18”/ 36 cm (w); 3.94”/ 10 cm (h); 10”/ 25.4 cm(d)

WEIGHT

7.05 lbs / 3.2 Kg

OUTPUT POWER (MPT Power Amp)

250W RMS @ 4 ohms, 150W RMS @ 8 ohms
