Dv Mark Evo 1 Controller Footswitch

Descrizione

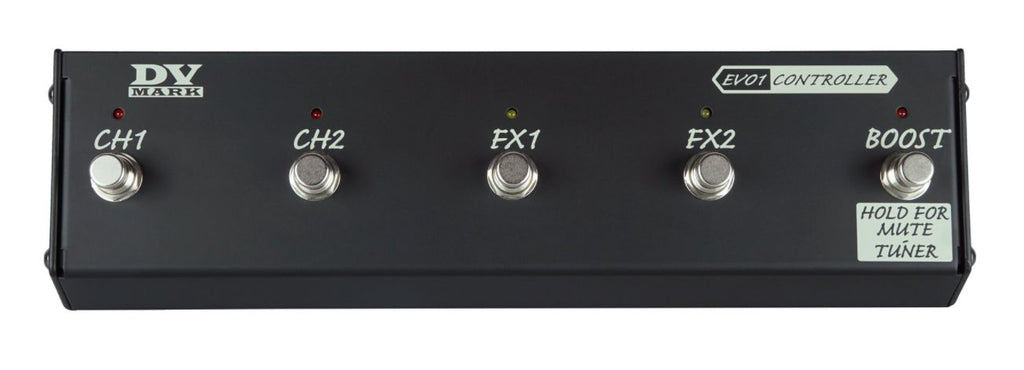

DV MARK EVO 1 CONTROLLER FOOTSWITCH

The optional DV Mark EVO 1 CONTROLLER allows to switch between CH1 and CH2, turn on/off the REV1, REV2 and BOOST, plus accessing the TUNER with MUTE function pressing and holding the boost switch. The EVO 1 can be controlled also via programmable MIDI pedalboard.

Specifiche

SWITCHES: FIVE

CH1 - MIDI program change #1

CH2 - MIDI program change #2

FX1 - MIDI control change #1

FX2 - MIDI control change #2

BOOST - MIDI control change #3

(hold for mute/tuner) - MIDI control change #28

MIDI OUT: DIN 5 poles

The MIDI TX CHANNEL is setted on #0

POWER REQUIREMENT: 9VDC

(via MIDI cable)
