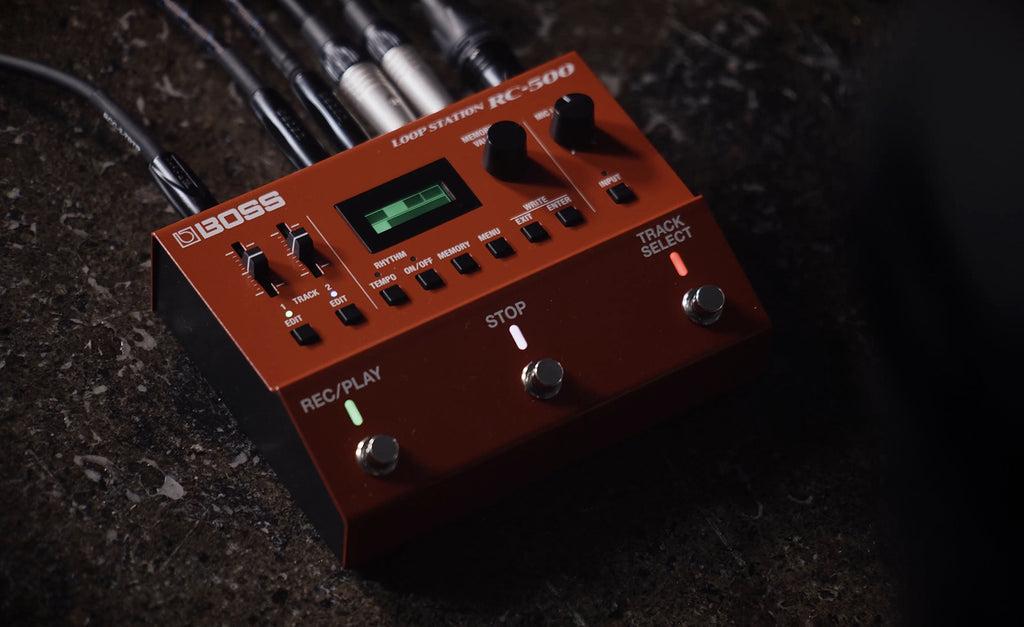

Boss Rc500 Pedale Effetto Loop Station

Descrizione

Looper stereo con un tempo di registrazione di 13 ore

LCD retroilluminato multi-colore per visualizzare lo stato del loop e modificare i parametri

Ingressi mono/stereo per una facile integrazione nella pedaliera, oltre a un ingresso microfonico XLR indipendente con alimentazione phantom

Funzione Reverse e Loop FX (repeat, scatter, shift, e vinyl flick) per loop sempre dinamici e coinvolgenti

16 diversi drum kit e 57 ritmi preset con variazioni A/B

Supporto per un controllo espanso tramite interruttori a pedale esterni, pedale di espressione, o via MIDI

Ingresso e uscita MIDI completi grazie alle prese mini TRS (cavo adattatore BMIDI-5-35 disponibile separatamente)

Salvataggio interno di 99 memorie delle frasi

Backup e caricamento dei loop in formato WAV via USB

Funziona con quattro batterie AA o un trasformatore in CA opzionale

Specifiche

SPECIFICATIONSSampling Frequency44.1 kHzAD/DA Conversion32 bitsProcessing32-bit floating pointRecording/PlaybackNumber of Track: 2

Data Format: WAV (44.1 kHz, 32-bit float, stereo)

Maximum Recording Time: Approx. 1.5 hours (1 track), Approx.13 hours (total of All memories) Rhythm Type57 Patterns x 2 VariationsRhythm Kit16 typesEffectLOOP FX (only for loop tracks)

Type: BEAT REPEAT, BEAT SHIFT, BEAT SCATTER, VINYL FLICK

Reverb (only for rhythm part)Memory99Nominal Input LevelMIC IN:-40 dBu (variable)

INST IN A/MONO､B: -10 dBuMaximum Input LevelMIC IN:+8 dBu

INST IN A/MONO, B: +8 dBuInput ImpedanceMIC IN: 4 k ohms

INST IN A/MONO, B: 1 M ohmNominal Output LevelOUTPUT A/MONO, B: -10 dBuMaximum Output LevelOUTPUT A/MONO, B: +8 dBuOutput ImpedanceOUTPUT A/MONO, B: 1 k ohmRecommended Load ImpedanceOUTPUT A/MONO, B: 10 k ohms or greaterBypassBuffered bypassControlsREC/PLAY switch, STOP switch, TRACK SELECT switch, MEMORY/VALUE knob, MIC LEVEL knob, TRACK 1 slider, TRACK 2 slider, TRACK 1 EDIT button, TRACK 2 EDIT button, RHYTHM TEMPO button, RHYTHM ON/OFF button, MEMORY button, MENU button, EXIT button, ENTER button, INPUT buttonDisplayGraphic LCD (96 x 32 dots, RGB backlit LCD)ConnectorsINST IN A/MONO, B jacks: 1/4-inch phone type

MIC IN jack: XLR type (balanced, phantom power: DC 48 V, 10 mA Max

OUTPUT A/MONO, B jacks: 1/4-inch phone type

CTL 1,2/EXP jack: 1/4-inch TRS phone type

USB port: USB micro B type

MIDI (IN, OUT) jacks: stereo miniature type

DC IN jackPower SupplyAlkaline battery (AA, LR6) x 4

AC adaptor (PSA-S series: sold separately)Current Draw330 mA (with phantom power)

240 mA (without phantom power)Expected battery life under continuous useAlkaline: Approx. 3.5 hours (without phantom power)

Approx. 2 hours (with phantom power)

*These figures will vary depending on the actual conditions of use.AccessoriesOwner's manual

Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")

Alkaline battery (AA, LR6) x 4

Rubber foot x 4Options (sold separately)AC adaptor: PSA-S series

Footswitch: FS-5U

Dual Footswitch: FS-6, FS-7

Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5

TRS/MIDI connecting cable: BMIDI-5-35SIZE AND WEIGHTWidth170 mm

6-3/4 inchesDepth138 mm

5-7/16 inchesHeight (including rubber foot)62 mm

2-1/2 inchesWeight (including battery)950 g

2.1 lb
