Boss Od-200 Hybrid Drive

Descrizione

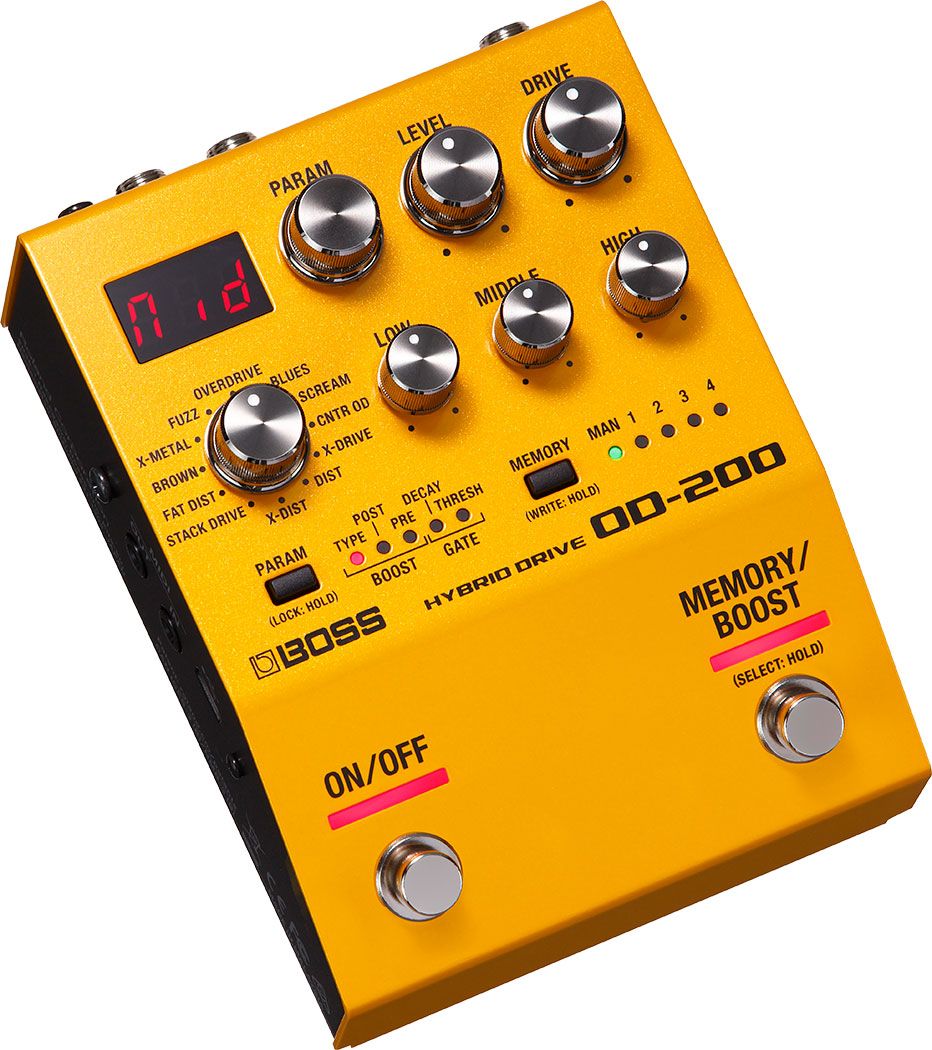

BOSS OD200 HYBRID DRIVE

Overdrive Ibrido Analogico Digitale

OD-200 Hybrid Drive porta il sound, il feel e la flessibilità di overdrive e distorsione a un nuovo livello, combinando l’expertise pluridecennale di BOSS con tecnologie innovative. Con la potenza della circuitazione ibrida analogica-digitale, questo pedale eccezionale offre qualsiasi timbro distorto possiate immaginare grazie alle 12 modalità principali, 15 tipi di boost, percorsi di gain in serie e in parallelo, e molto altro ancora. Avete anche a disposizione un gate avanzato, ideale sia per eliminare il rumore che per aggiungere velocità e definizione ai suoni high-gain.

Specifiche

Sampling Frequency96 kHzAD/DA Conversion32 bitsProcessing32-bit floating pointDrive CircuitAnalog + DigitalModes12 modes

OVERDRIVE, BLUES, SCREAM, CNTR OD, X-DRIVE, DIST, X-DIST, STACK DRIVE, FAT DIST, BROWN, X-METAL, FUZZMemory4 + ManualNominal Input LevelINPUT: -10 dBuMaximum Input LevelINPUT: +7 dBuInput ImpedanceINPUT: 1 M ohmNominal Output LevelOUTPUT: -10 dBuMaximum Output LevelOUTPUT: +7 dBu (Load Impedance: 220 k ohms or greater)Output ImpedanceOUTPUT: 1 k ohmsRecommended Load ImpedanceOUTPUT: 10 k ohms or greaterBypassBuffered bypassControlsON/OFF switch, MEMORY/BOOST switch

MODE knob, DRIVE knob, LEVEL knob, PARAM knob, LOW knob, MIDDLE knob, HIGH knob

PARAM button, MEMORY buttonDisplay7 segments, 3 characters (LED)IndicatorPARAM indicator, MEMORY (MAN, 1--4) indicatorsConnectorsINPUT jack, OUTPUT jack: 1/4-inch phone type

CTL 1, 2/EXP jack: 1/4-inch TRS phone type

MIDI (IN, OUT) jacks: Stereo miniature phone type

DC IN jack

USB port: USB micro B-type (program update only)Power SupplyAlkaline battery (AA, LR6) x 3, AC adaptor (sold separately)Current Draw220 mAExpected Battery Life Under Continuous UseAlkaline: Approx. 6 Hours

* These figures will vary depending on the actual conditions of use.AccessoriesOwner's Manual

Leaflet "USING THE UNIT SAFELY"

Alkaline battery (AA, LR6) x 3

Rubber foot x 4Options (sold separately)AC adaptor: PSA-S series

Footswitch: FS-5U

Dual footswitch: FS-6, FS-7

Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5

TRS/MIDI cable: BMIDI-5-35SIZE AND WEIGHTWidth101 mm

4 inchesDepth138 mm

5-7/16 inchesHeight63 mm

2-1/2 inchesHeight (including rubber foot)65 mm

2-9/16 inchesWeight600 g

1 lb 6 oz

Weight (including battery)670 g
